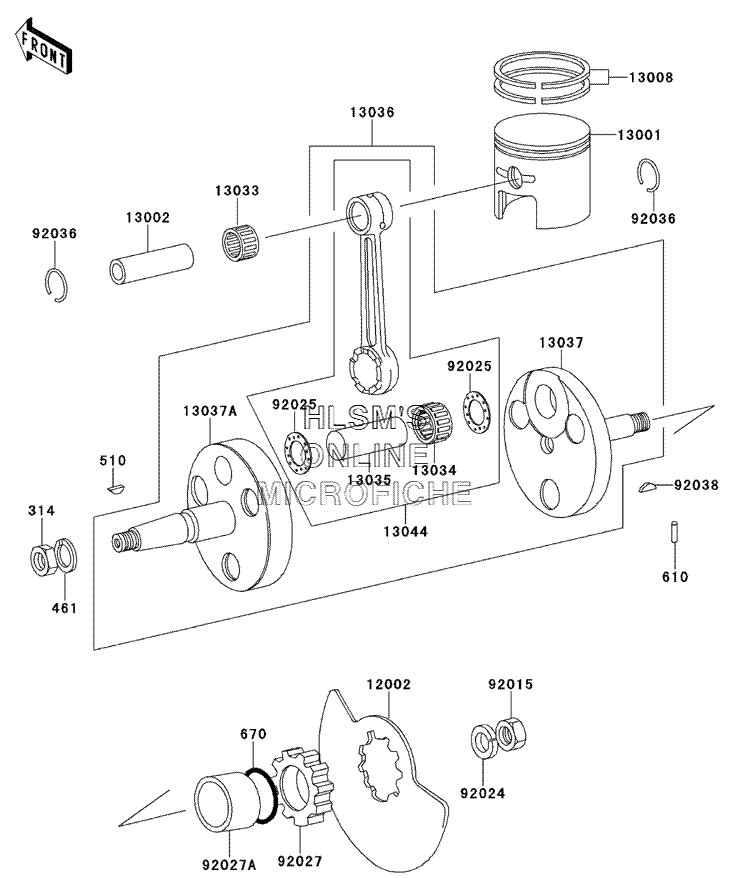

CRANKSHAFT - PISTON(S) для Kawasaki KE100 - 2000 года выпуска
-
№АртикулНазвание
-
314314B1000 NUT, HEX, FINE, 10MMNUT, HEX, FINE, 10MM
-
461461E1000 WASHER, SPRING, 10MMWASHER, SPRING, 10MM
-
510510A3200 KEY, WOODRUFFKEY, WOODRUFF
-
610610A0410 ROLLER, 4X10ROLLER, 4X10
-
670670B2016 O-RING, 16MMO-RING, 16MM
-
1200212002-030 VALVE, ROTARYVALVE, ROTARY
-
1300113001-1457 PISTON, ENGINE (STD)PISTON, ENGINE (STD)
-
1300213002-003 PIN, PISTONPIN, PISTON
-
1300813008-5009 RING, SET, PISTON (STD)RING, SET, PISTON (STD)
-
1303313033-030 BEARING, NEEDLE, KTV141817BEARING, NEEDLE, KTV141817
-
1303413034-034 BEARING, NEEDLE, KT192814BEARING, NEEDLE, KT192814
-
1303513035-025 PIN, CRANKPIN, CRANK
-
1303613036-043 CRANKSHAFT, COMPCRANKSHAFT, COMP
-
1303713037-1135 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
13037A13037-1136 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
1304413044-5015 SET, CONNECTING RODSET, CONNECTING ROD
-
9201592015-006 NUT, 12MMNUT, 12MM
-
9202492024-003 WASHER, CLAW, 12.5X25X0.8WASHER, CLAW, 12.5X25X0.8
-
9202592025-047 SHIM, T=1.0SHIM, T=1.0
-
9202792027-1245 COLLAR, ROTARY VALVECOLLAR, ROTARY VALVE
-
92027A92027-285 COLLAR, 20X25X9.5COLLAR, 20X25X9.5
-
9203692036-003 RING, SNAP, PISTON PINRING, SNAP, PISTON PIN
-
9203892038-003 KEY, WOODRUFFKEY, WOODRUFF
