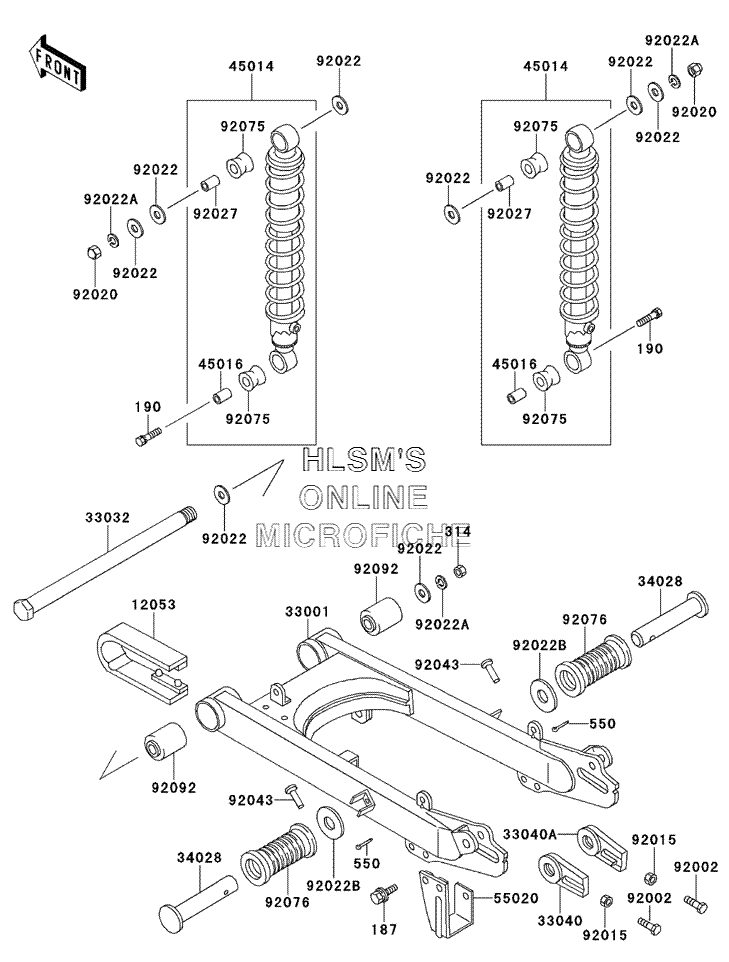

SUSPENSION - SWINGARM W/ SHOCK ABSORBER для Kawasaki KE100 - 2000 года выпуска
-
№АртикулНазвание
-
187187X0616 BOLT, UPSET, WSPBOLT, UPSET, WSP
-
190190N1035 BOLT, UPSET, WSBOLT, UPSET, WS
-
314314B1200 NUT, HEX, FINENUT, HEX, FINE
-
550550D2015 PIN, COTTER, 2.0X15PIN, COTTER, 2.0X15
-
1205312053-1066 GUIDE, CHAIN, NYLONGUIDE, CHAIN, NYLON
-
3300133001-1118 ARM, COMP, SWING (SILVER)ARM, COMP, SWING (SILVER)
-
3303233032-034 SHAFT, SWING ARMSHAFT, SWING ARM
-
3304033040-045 ADJUSTER, CHAIN (LEFT)ADJUSTER, CHAIN (LEFT)
-
33040A33040-046 ADJUSTER, CHAIN (RIGHT)ADJUSTER, CHAIN (RIGHT)
-
3402834028-009 STEP, REARSTEP, REAR
-
4501445014-1144 SHOCKABSORBERSHOCKABSORBER
-
4501645016-003 COLLAR, SHOCKABSORBERCOLLAR, SHOCKABSORBER
-
5502055020-012 GUARD, CHAINGUARD, CHAIN
-
9200292002-1076 BOLT, CHAIN ADJUSTER, 8X50BOLT, CHAIN ADJUSTER, 8X50
-
9201592015-1364 NUT, 8MMNUT, 8MM
-
9202092020-014 NUT, CAP, 12MMNUT, CAP, 12MM
-
9202292022-1538 WASHER, 12MMWASHER, 12MM
-
92022A92022-1541 WASHER, SPRING, 12MMWASHER, SPRING, 12MM
-
92022B92022-1568 WASHER, 20X30X2.3WASHER, 20X30X2.3
-
9202792027-1063 COLLAR, SHOCKABSORBERCOLLAR, SHOCKABSORBER
-
9204392043-1464 PIN, 6X28PIN, 6X28
-
9207592075-1020 DAMPER, SHOCKABSORBERDAMPER, SHOCKABSORBER
-
9207692076-020 DAMPERDAMPER
-
9209292092-005 BUSHING, RUBBERBUSHING, RUBBER
