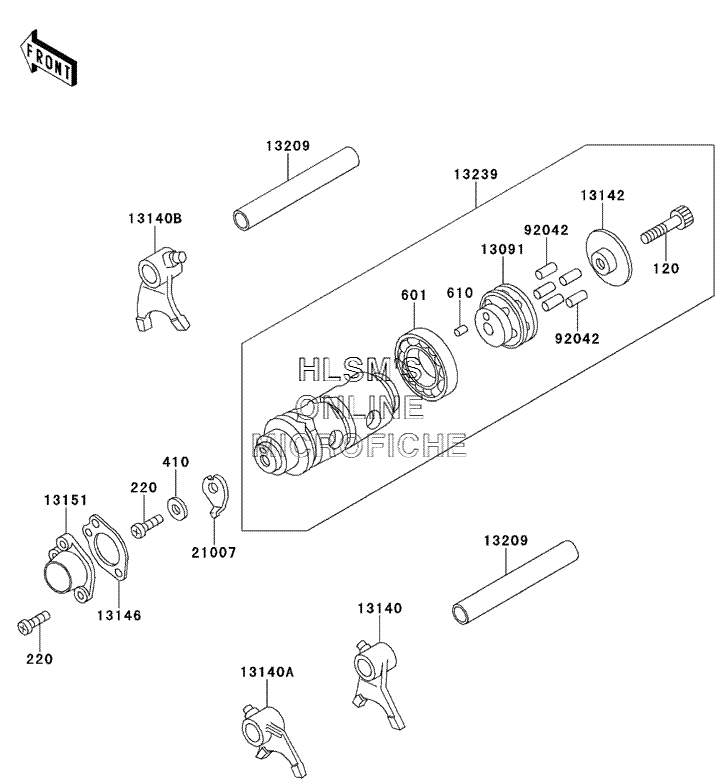

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki KE100 - 2000 года выпуска
-
№АртикулНазвание
-
120120Q0630 BOLT, SOCKET, 6X30BOLT, SOCKET, 6X30
-
220220B0616 SCREW, PAN, CROS, 6X16SCREW, PAN, CROS, 6X16
-
410410B0600 WASHER, PLAIN, SMALL, 6MMWASHER, PLAIN, SMALL, 6MM
-
601601B6004 BEARING, BALL, #6004C3BEARING, BALL, #6004C3
-
610610A0406 ROLLER, 4X6ROLLER, 4X6
-
1309113091-1077 HOLDER, CHANGE DRUMHOLDER, CHANGE DRUM
-
1314013140-1026 FORK, SHIFT, LOW AND 2NDFORK, SHIFT, LOW AND 2ND
-
13140A13140-1027 FORK, SHIFT, 3RDFORK, SHIFT, 3RD
-
13140B13140-1028 FORK, SHIFT, 4TH AND TOPFORK, SHIFT, 4TH AND TOP
-
1314213142-014 HOLDER, CHANGE DRUM PINHOLDER, CHANGE DRUM PIN
-
1314613146-002 GASKET, NEUTRAL SWITCHGASKET, NEUTRAL SWITCH
-
1315113151-1002 SWITCH, COMP, NEUTRALSWITCH, COMP, NEUTRAL
-
1320913209-014 ROD, SHIFT, 10X80ROD, SHIFT, 10X80
-
1323913239-1034 DRUM, ASSY., CHANGEDRUM, ASSY., CHANGE
-
2100721007-1003 ROTOR, TOP AND NEUTRALROTOR, TOP AND NEUTRAL
-
9204292042-042 PIN, DOWEL, 4X14.8PIN, DOWEL, 4X14.8
