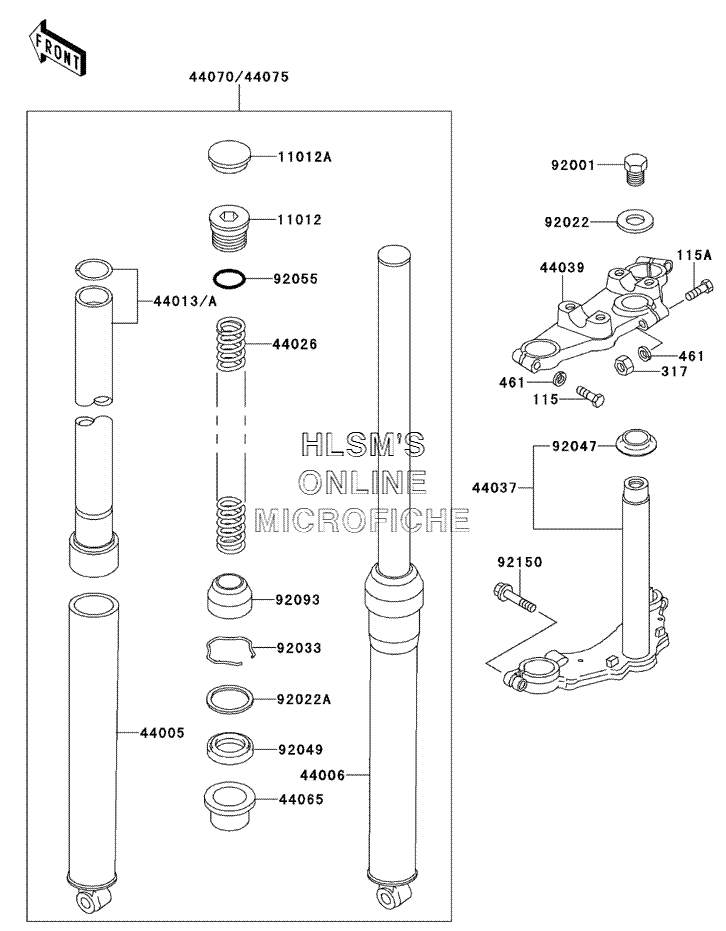

FRONT FORK для Kawasaki KE100 - 2000 года выпуска
-
№АртикулНазвание
-
115115B0835 BOLT, SMALL, UPSETBOLT, SMALL, UPSET
-
115A115B0845 BOLT, SMALL, UPSETBOLT, SMALL, UPSET
-
317317B0800 NUT, HEX, SMALL, 8MMNUT, HEX, SMALL, 8MM
-
461461F0800 WASHER, SPRING, 8MMWASHER, SPRING, 8MM
-
1101211012-1126 CAP, SPRINGCAP, SPRING
-
11012A11012-1127 CAP, FORKCAP, FORK
-
4400544005-1076 PIPE, LEFT FORK, OUTERPIPE, LEFT FORK, OUTER
-
4400644006-1075 PIPE, RIGHT FORK, OUTERPIPE, RIGHT FORK, OUTER
-
44013A44013-1454 PIPE, FORK INNERPIPE, FORK INNER
-
4402644026-1120 SPRING, FRONT FORKSPRING, FRONT FORK
-
4403744037-1076 HOLDER, FORK UNDERHOLDER, FORK UNDER
-
4403944039-047 HOLDER, FORK UPPERHOLDER, FORK UPPER
-
4406544065-1014 BUSHING, FRONT FORKBUSHING, FRONT FORK
-
4407544075-1082 DAMPER, SET, FORKDAMPER, SET, FORK
-
9200192001-1327 BOLTBOLT
-
9202292022-1198 WASHERWASHER
-
92022A92022-1241 WASHER, FRONT FORK OIL SEALWASHER, FRONT FORK OIL SEAL
-
9203392033-1038 RING, SNAPRING, SNAP
-
9204792047-004 RACE, LOWER BEARINGRACE, LOWER BEARING
-
9204992049-1067 SEAL, OIL, FRONT FORKSEAL, OIL, FRONT FORK
-
9205592055-1087 O-RINGO-RING
-
9209392093-1065 SEAL, DUSTSEAL, DUST
-
9215092150-1814 BOLT, 10X36BOLT, 10X36
