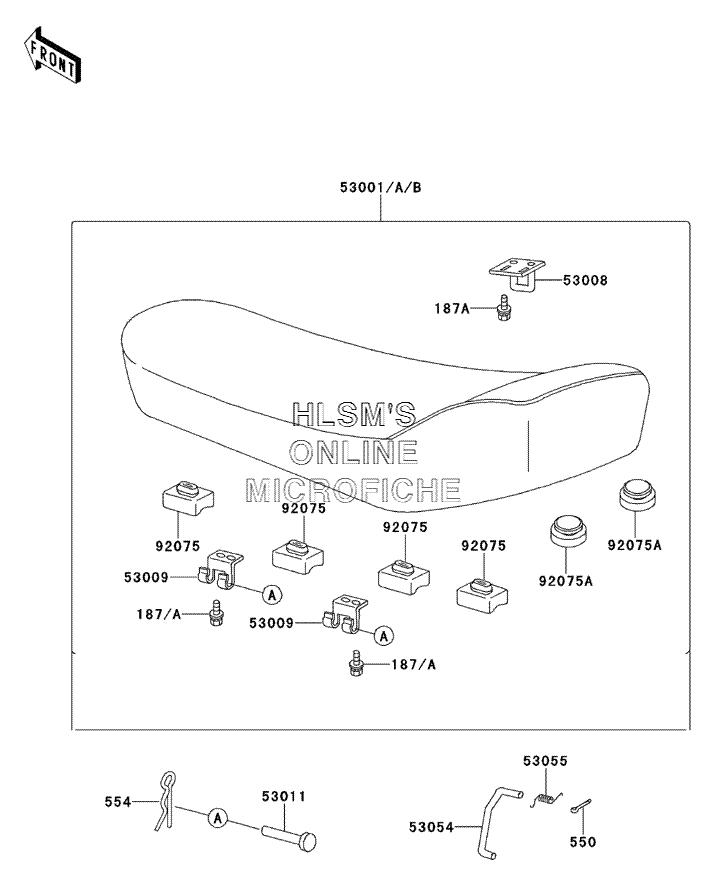

SEAT для Kawasaki KE100 - 2000 года выпуска
-
№АртикулНазвание
-
187A187B0614 BOLT, UPSET, WSPBOLT, UPSET, WSP
-
550550D2015 PIN, COTTER, 2.0X15PIN, COTTER, 2.0X15
-
554554A0600 PIN, SNAPPIN, SNAP
-
53001B53001-1910-LJ SEAT, ASSY., DUAL, W/BAND, S.(GRAY)SEAT, ASSY., DUAL, W/BAND, S.(GRAY)
-
5300853008-021 HOOK, SEATHOOK, SEAT
-
5300953009-017 HINGE, SEATHINGE, SEAT
-
5301153011-002 PIN, 6X48PIN, 6X48
-
5305453054-003 STAY, SEATSTAY, SEAT
-
5305553055-001 SPRING, SEAT HOOKSPRING, SEAT HOOK
-
9207592075-023 DAMPER, DUAL SEATDAMPER, DUAL SEAT
-
92075A92075-216 DAMPER, SEATDAMPER, SEAT
