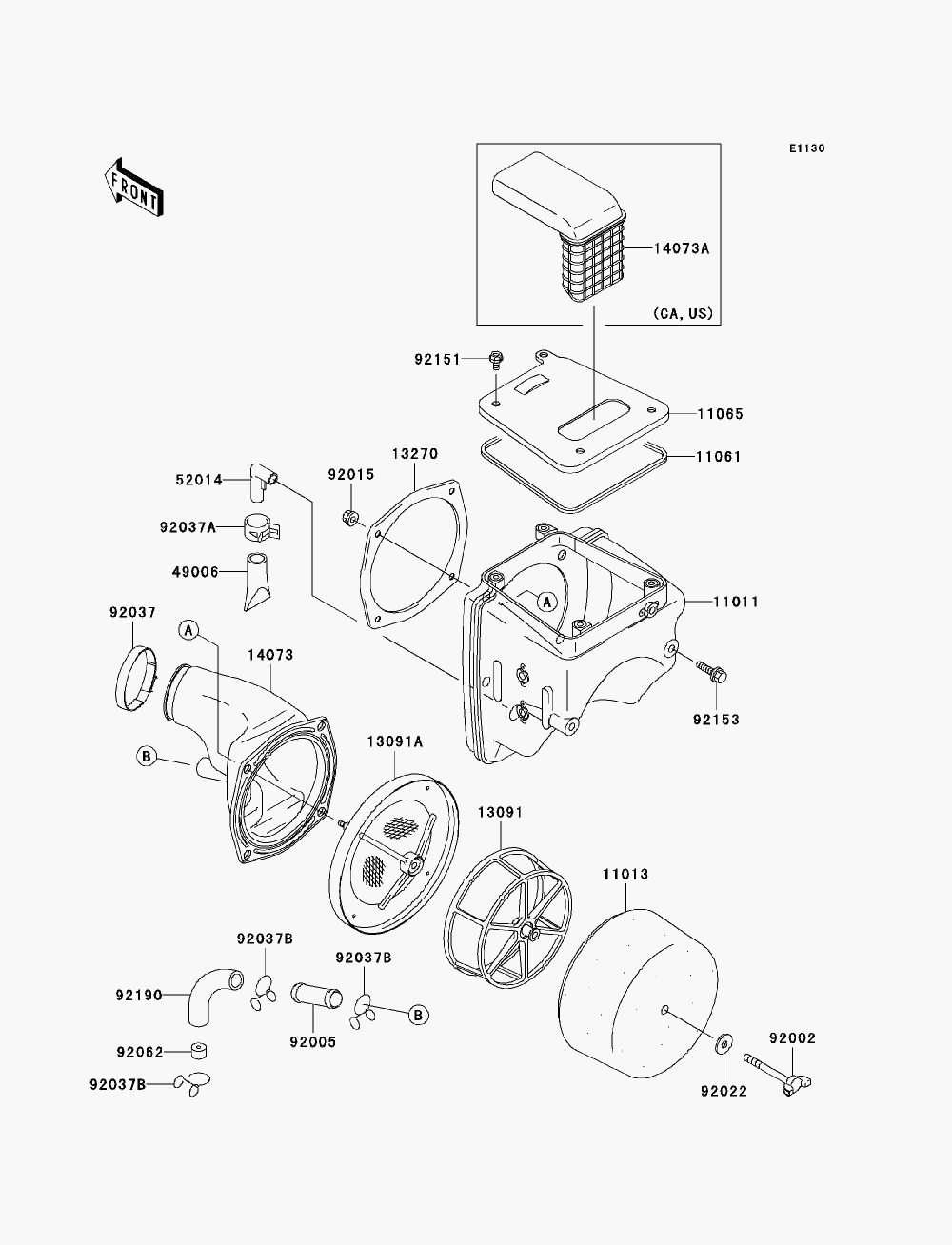

AIR CLEANER для Kawasaki KLX 300R - 2006 года выпуска
-
№АртикулНазвание
-
1101111011-1399 CASE-AIR FILTERCASE-AIR FILTER
-
1101311013-1260 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1106111061-1056 GASKET,L=535GASKET,L=535
-
1106511065-1182 CAP,AIR FILTERCAP,AIR FILTER
-
1309113091-1454 HOLDER,ELEMENTHOLDER,ELEMENT
-
13091A13091-1835 HOLDER,ELEMENTHOLDER,ELEMENT
-
1327013270-1284 PLATE,DUCT FITTINGPLATE,DUCT FITTING
-
1407314073-1566 DUCT,AIR FILTERDUCT,AIR FILTER
-
14073A14073-1588 DUCT,AIR INTAKE (USA ONLY)DUCT,AIR INTAKE (USA ONLY)
-
4900649006-1211 BOOTBOOT
-
5201452014-1083 ELBOWELBOW
-
9200292002-1719 BOLT,WINGBOLT,WING
-
9200592005-1236 FITTINGFITTING
-
9201592015-1656 NUT,FLANGED,5MMNUT,FLANGED,5MM
-
9202292022-125 WASHER,6.5X20X1.6WASHER,6.5X20X1.6
-
9203792037-1554 CLAMPCLAMP
-
92037A92037-2082 CLAMPCLAMP
-
92037B92037-213 CLAMP,TUBECLAMP,TUBE
-
9206292062-1076 NOZZLENOZZLE
-
9215192151-1239 BOLT,6X12BOLT,6X12
-
9215392153-0502 BOLT,6X20BOLT,6X20
-
9219092190-1397 TUBE,BREATHERTUBE,BREATHER
