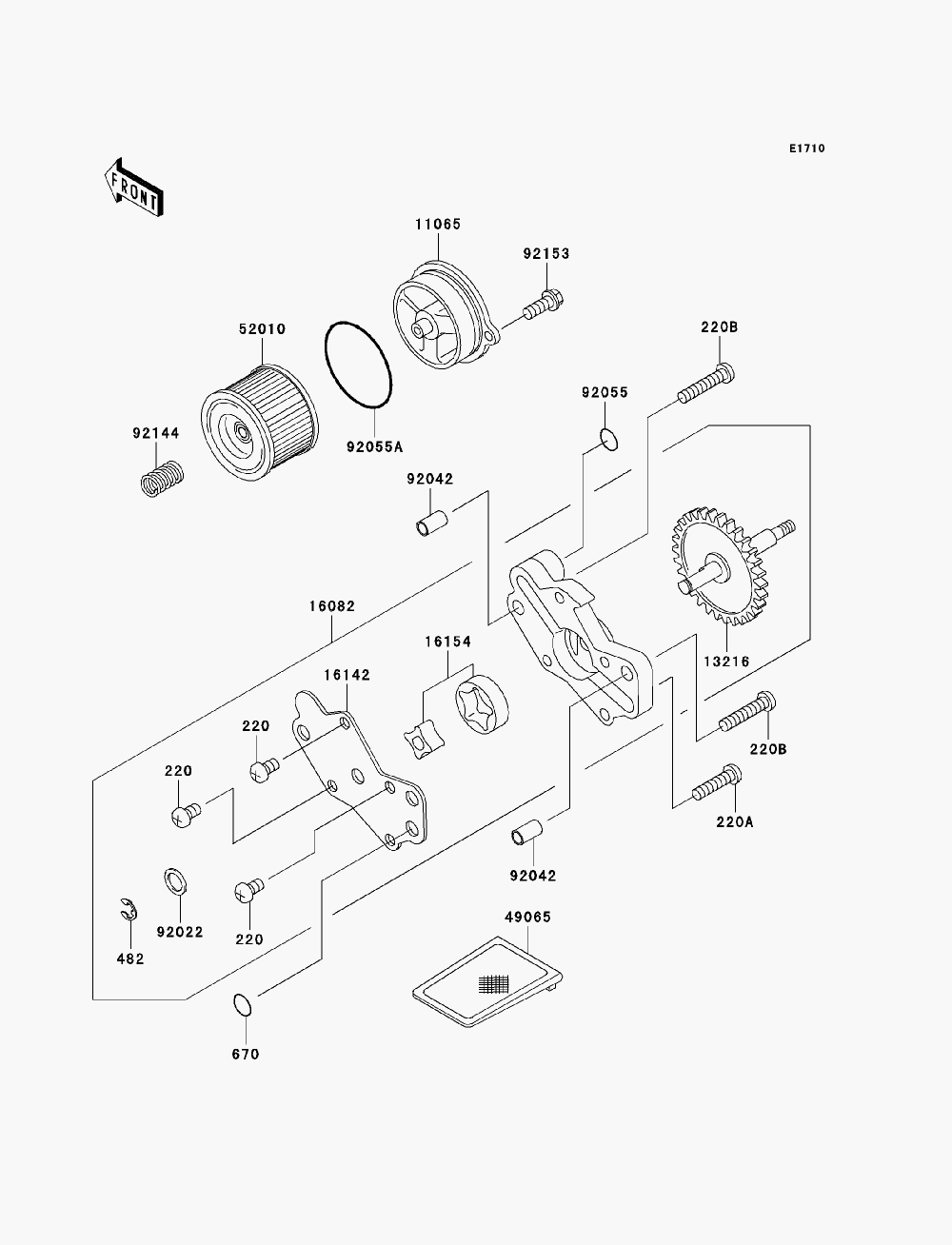

OIL PUMP для Kawasaki KLX 300R - 2006 года выпуска
-
№АртикулНазвание
-
220220B0610 SCREW-PAN-CROS,6X10SCREW-PAN-CROS,6X10
-
220A220B0625 SCREW-PAN-CROS,6X25SCREW-PAN-CROS,6X25
-
220B220B0630 SCREW-PAN-CROS,6X30SCREW-PAN-CROS,6X30
-
482482J6000 CIRCLIP-TYPE-E,6MMCIRCLIP-TYPE-E,6MM
-
670670D2010 O RINGO RING
-
1106511065-0102 CAP,OIL FILTERCAP,OIL FILTER
-
1321613216-1142 GEAR-COMPGEAR-COMP
-
1608216082-1130 PUMP-ASSY-OILPUMP-ASSY-OIL
-
1614216142-1123 COVER-PUMPCOVER-PUMP
-
1615416154-1077 ROTOR-PUMPROTOR-PUMP
-
4906549065-1058 FILTER-OILFILTER-OIL
-
5201052010-1053 ELEMENT-OIL FILTERELEMENT-OIL FILTER
-
9202292022-1181 WASHER,10.2X14.5X1.0WASHER,10.2X14.5X1.0
-
9204292042-007 PIN,DOWEL,6.3X8X14PIN,DOWEL,6.3X8X14
-
9205592055-074 RING-O,OD=13RING-O,OD=13
-
92055A92055-1577 RING-O,52.6X2.4RING-O,52.6X2.4
-
9214492144-1761 SPRINGSPRING
-
9215392153-0979 BOLT,FLANGED-SMALL,6X16BOLT,FLANGED-SMALL,6X16
