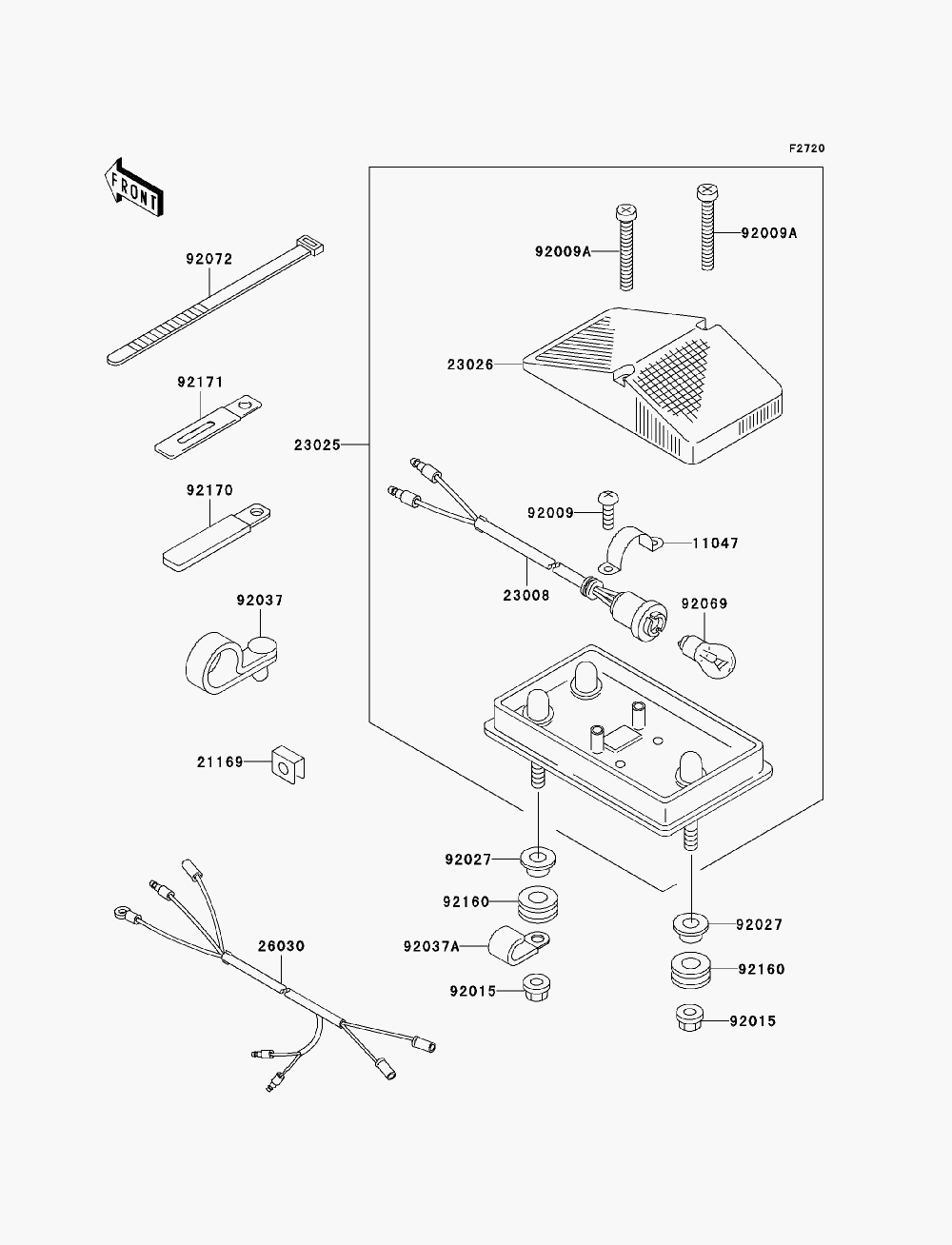

TAILLIGHT(S) для Kawasaki KLX 300R - 2006 года выпуска
-
№АртикулНазвание
-
1104711047-1238 BRACKET,TAIL LAMPBRACKET,TAIL LAMP
-
2116921169-1066 TERMINALTERMINAL
-
2300823008-1462 SOCKET-ASSY,TAIL LAMPSOCKET-ASSY,TAIL LAMP
-
2302523025-1215 LAMP-TAILLAMP-TAIL
-
2302623026-1131 LENS,TAIL LAMPLENS,TAIL LAMP
-
2603026030-1165 HARNESS,MAINHARNESS,MAIN
-
9200992009-1021 SCREW,TAPPING,4X10SCREW,TAPPING,4X10
-
92009A92009-1647 SCREW,TAPPING,4X30SCREW,TAPPING,4X30
-
9201592015-1367 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
9202792027-1920 COLLAR,L=14.1COLLAR,L=14.1
-
9203792037-1163 CLAMP,SPEED,L=58CLAMP,SPEED,L=58
-
92037A92037-1877 CLAMPCLAMP
-
9206992069-1072 BULB,12V 10WBULB,12V 10W
-
9207292072-1195 BAND,L=202BAND,L=202
-
9216092160-1167 DAMPERDAMPER
-
9217092170-1114 CLAMP,L=150CLAMP,L=150
-
9217192171-1425 CLAMP,WIRING HARNESS,L=60CLAMP,WIRING HARNESS,L=60
