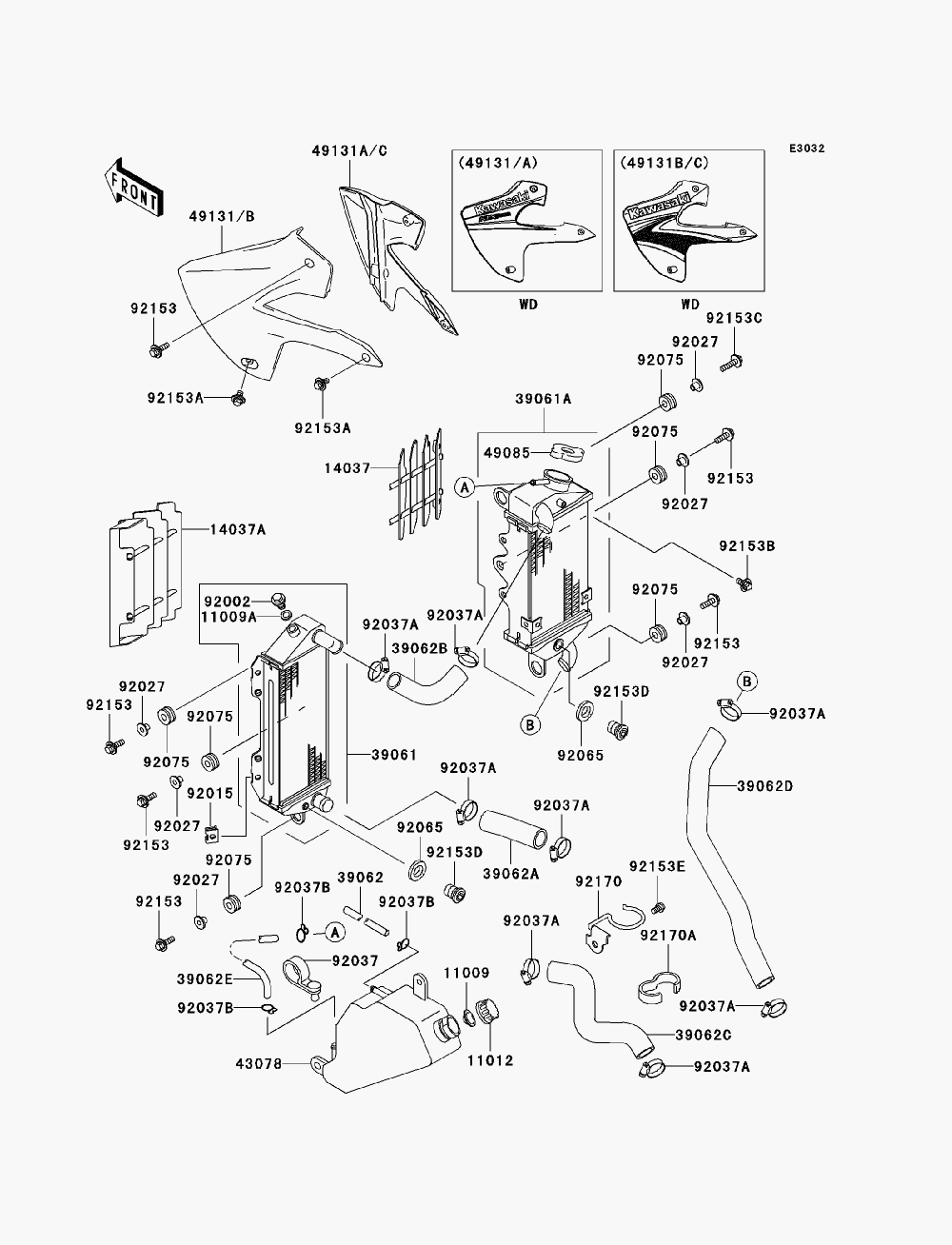

RADIATOR для Kawasaki KLX 300R - 2006 года выпуска
-
№АртикулНазвание
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
11009A11009-1152 GASKET,DRAIN BOLTGASKET,DRAIN BOLT
-
1101211012-1084 CAPCAP
-
1403714037-0047-RZ SCREEN, RIGHT HAND,WHITESCREEN, RIGHT HAND,WHITE
-
14037A14037-1099-RZ SCREEN,WHITESCREEN,WHITE
-
3906139061-1233 RADIATOR-ASSY, LEFT HANDRADIATOR-ASSY, LEFT HAND
-
39061A39061-1234 RADIATOR-ASSY, RIGHT HANDRADIATOR-ASSY, RIGHT HAND
-
3906239062-1315 HOSE-COOLING,5X9X420HOSE-COOLING,5X9X420
-
39062A39062-1535 HOSE-COOLING,HEAD-RADIATORHOSE-COOLING,HEAD-RADIATOR
-
39062B39062-1536 HOSE-COOLING,RADIATOR,L-RHOSE-COOLING,RADIATOR,L-R
-
39062C39062-1563 HOSE-COOLING,PUMP-CYLINDERHOSE-COOLING,PUMP-CYLINDER
-
39062D39062-1564 HOSE-COOLING,RADIATOR-PUMPHOSE-COOLING,RADIATOR-PUMP
-
39062E39062-1569 HOSE-COOLING,5X9X1080HOSE-COOLING,5X9X1080
-
4307843078-1140 RESERVOIRRESERVOIR
-
4908549085-1070 CAP-ASSY-PRESSURE,P1.1CAP-ASSY-PRESSURE,P1.1
-
4913149131-5057-290 SHROUD-ENGINE, LEFT HAND,L.GREENSHROUD-ENGINE, LEFT HAND,L.GREEN
-
49131A49131-5058-290 SHROUD-ENGINE, RIGHT HAND,L.GREENSHROUD-ENGINE, RIGHT HAND,L.GREEN
-
9200292002-1682 BOLT,RADIATOR DRAINBOLT,RADIATOR DRAIN
-
9201592015-1487 NUTNUT
-
9202792027-194 COLLAR,L=11.1COLLAR,L=11.1
-
9203792037-1163 CLAMP,SPEED,L=58CLAMP,SPEED,L=58
-
92037A92037-1589 CLAMP,COOLING HOSECLAMP,COOLING HOSE
-
92037B92037-1712 CLAMPCLAMP
-
9206592065-058 GASKET,10.5X16X1GASKET,10.5X16X1
-
9207592075-209 DAMPERDAMPER
-
9215392153-0502 BOLT,6X20BOLT,6X20
-
92153A92153-0503 BOLT,6X12BOLT,6X12
-
92153B92153-0936 BOLT,FLANGED,6X14BOLT,FLANGED,6X14
-
92153C92153-1008 BOLT,FLANGED WP,6X25BOLT,FLANGED WP,6X25
-
92153D92153-1352 BOLT,SOCKET,10X10BOLT,SOCKET,10X10
-
92153E92153-1354 BOLT,FLANGED,6X10BOLT,FLANGED,6X10
-
9217092170-1357 CLAMPCLAMP
-
92170A92170-1419 CLAMPCLAMP
