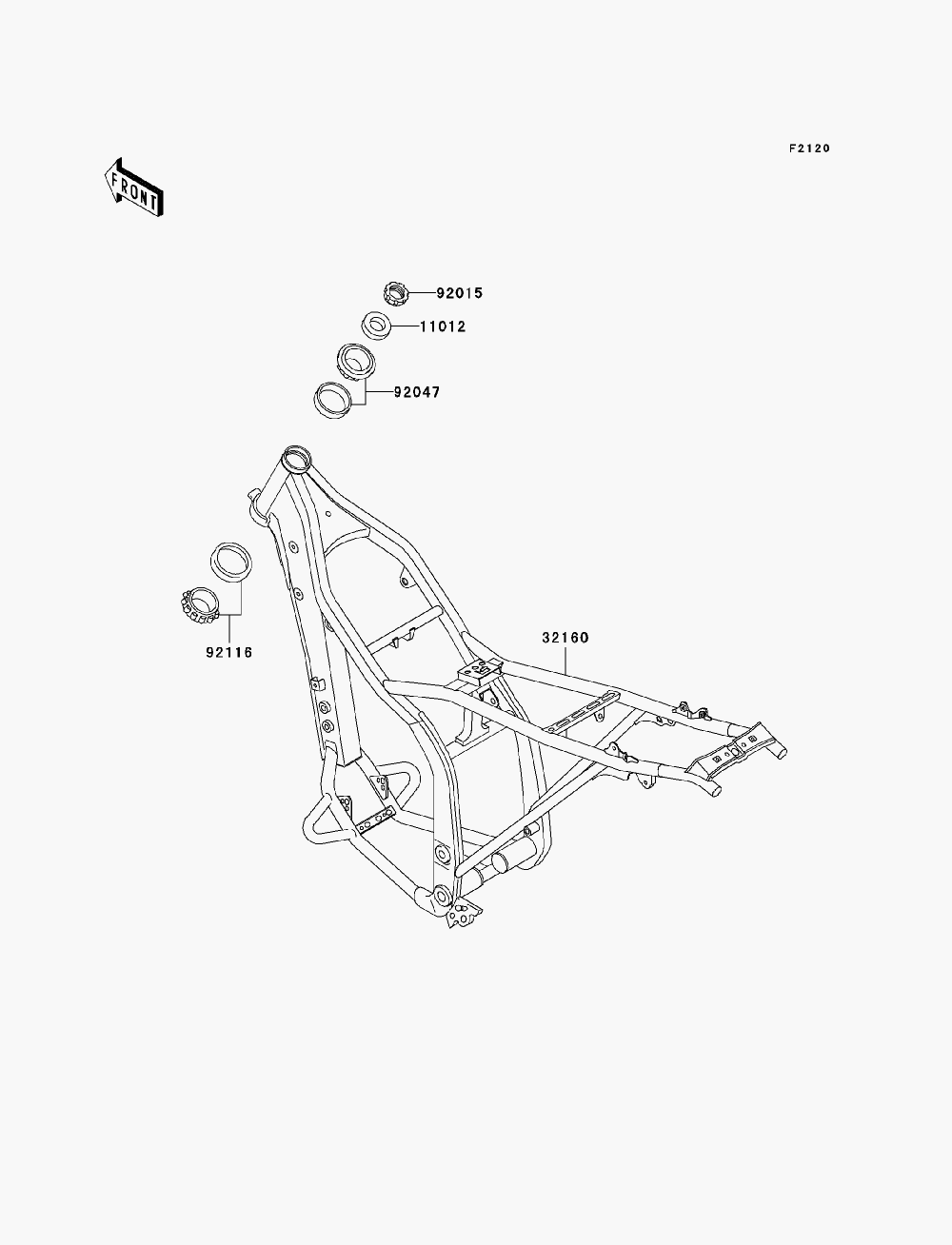

FRAME для Kawasaki KLX 300R - 2006 года выпуска
-
№АртикулНазвание
-
1101211012-1762 CAP,STEERING STEMCAP,STEERING STEM
-
3216032160-1757-458 FRAME-COMP,P.SILVERFRAME-COMP,P.SILVER
-
9201592015-1546 NUT,25MM,T=12NUT,25MM,T=12
-
9204792047-017 RACE,ROLLER,32005JR RSRACE,ROLLER,32005JR RS
-
9211692116-1069 BEARING-ROLLER,HI-CAP32006JREARSBEARING-ROLLER,HI-CAP32006JREARS
