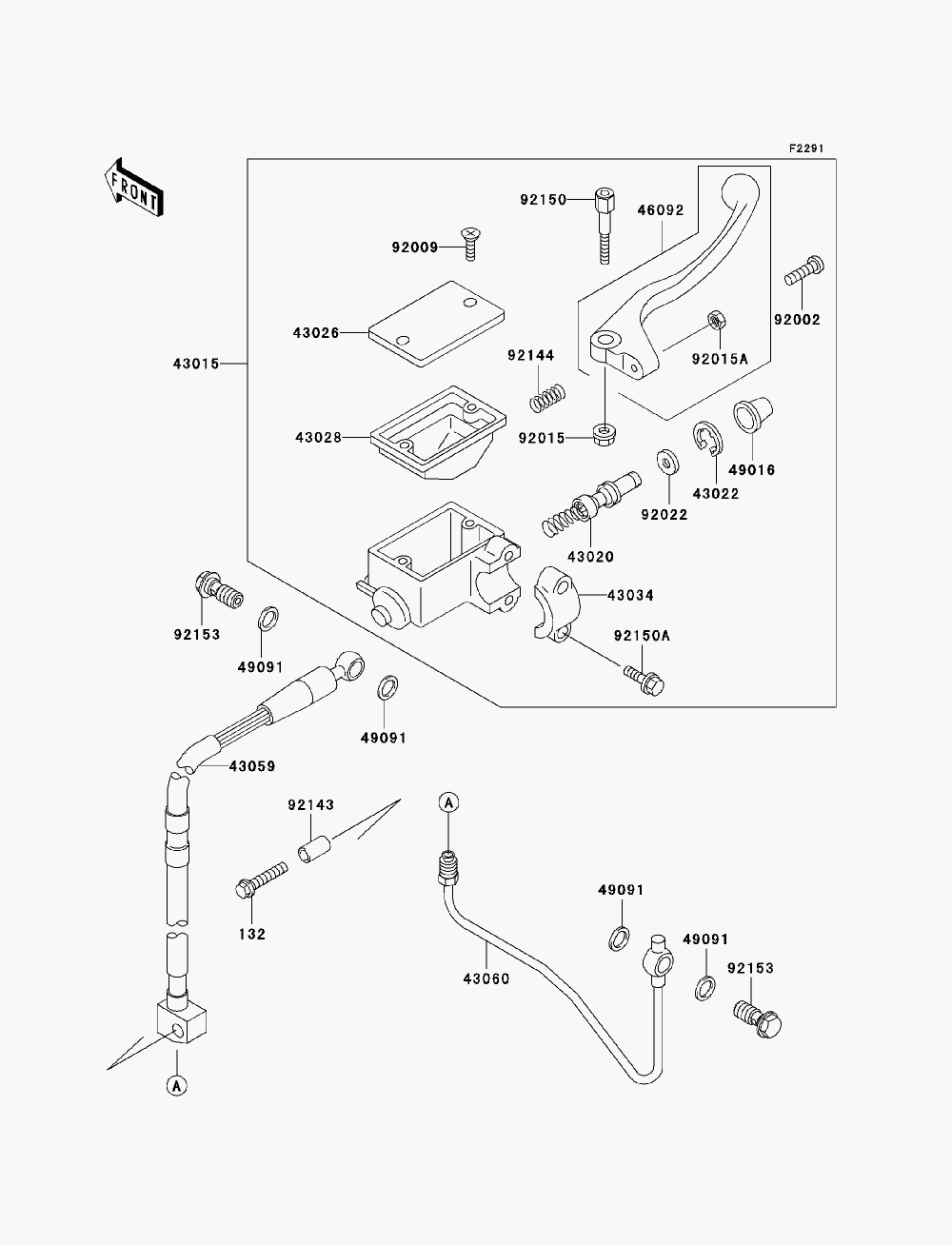

BRAKE - MASTER CYLINDER - FRONT для Kawasaki KLX 300R - 2006 года выпуска
-
№АртикулНазвание
-
132132G0630 BOLT-FLANGED-SMALL,6X30BOLT-FLANGED-SMALL,6X30
-
4301543015-1588 CYLINDER-ASSY-MASTER, FRONTCYLINDER-ASSY-MASTER, FRONT
-
4302043020-1109 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302243022-1010 STOPPER-BRAKE,PISTONSTOPPER-BRAKE,PISTON
-
4302643026-1075 CAP-BRAKECAP-BRAKE
-
4302843028-1067 DIAPHRAGMDIAPHRAGM
-
4303443034-1110 HOLDER-BRAKEHOLDER-BRAKE
-
4305943059-1693 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
4306043060-1100 PIPE-BRAKE, FRONTPIPE-BRAKE, FRONT
-
4609246092-1186 LEVER-GRIP, FRONT BRAKELEVER-GRIP, FRONT BRAKE
-
4901649016-1044 COVER-SEAL,MASTER CYLINDERCOVER-SEAL,MASTER CYLINDER
-
4909149091-0001 WASHER-SEAL,10.1X14.5X1.5WASHER-SEAL,10.1X14.5X1.5
-
9200292002-1893 BOLT,ADJUSTBOLT,ADJUST
-
9200992009-1458 SCREW,4MMSCREW,4MM
-
9201592015-1528 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
92015A92015-1642 NUT,ADJUSTNUT,ADJUST
-
9202292022-1814 WASHERWASHER
-
9214392143-1408 COLLAR,6.5X9.5X17COLLAR,6.5X9.5X17
-
9214492144-1725 SPRING, RETURNSPRING, RETURN
-
9215092150-1383 BOLT, LEVER SETBOLT, LEVER SET
-
92150A92150-1452 BOLTBOLT
-
9215392153-0627 BOLT,OIL,L=23BOLT,OIL,L=23
