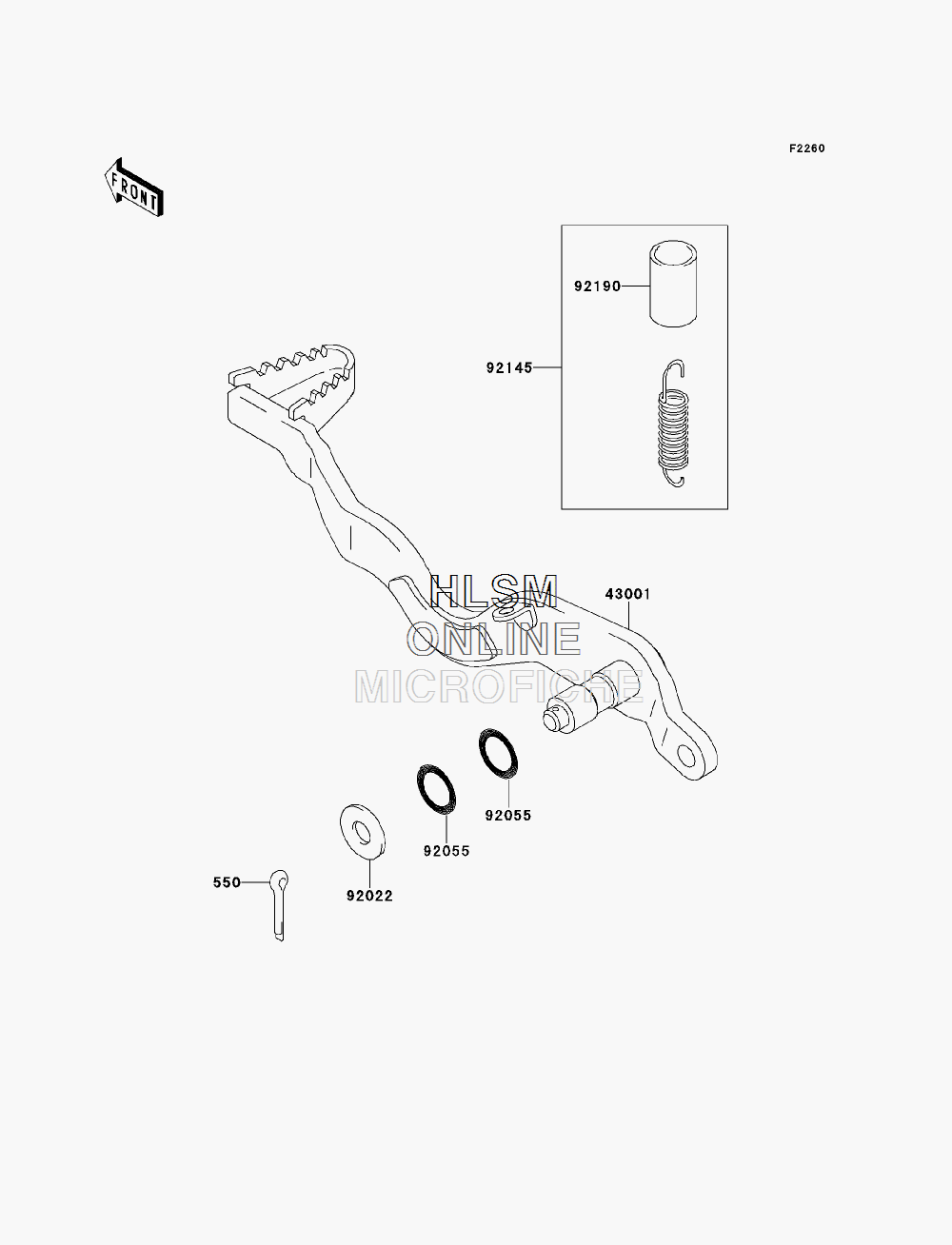

BRAKE PEDAL для Kawasaki KLX250S (KLX250TEF) - 2014 года выпуска
-
№АртикулНазвание
-
550550AA2525 PIN-COTTER, 2.5X25PIN-COTTER, 2.5X25
-
4300143001-0110 LEVER-BRAKE, PEDALLEVER-BRAKE, PEDAL
-
9202292022-1561 WASHER, 8.5X20X1.6WASHER, 8.5X20X1.6
-
9205592055-0168 RING-O, OD=18.5RING-O, OD=18.5
-
9214592145-0684 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
-
9219092190-1488 TUBE, 13X16X25TUBE, 13X16X25
