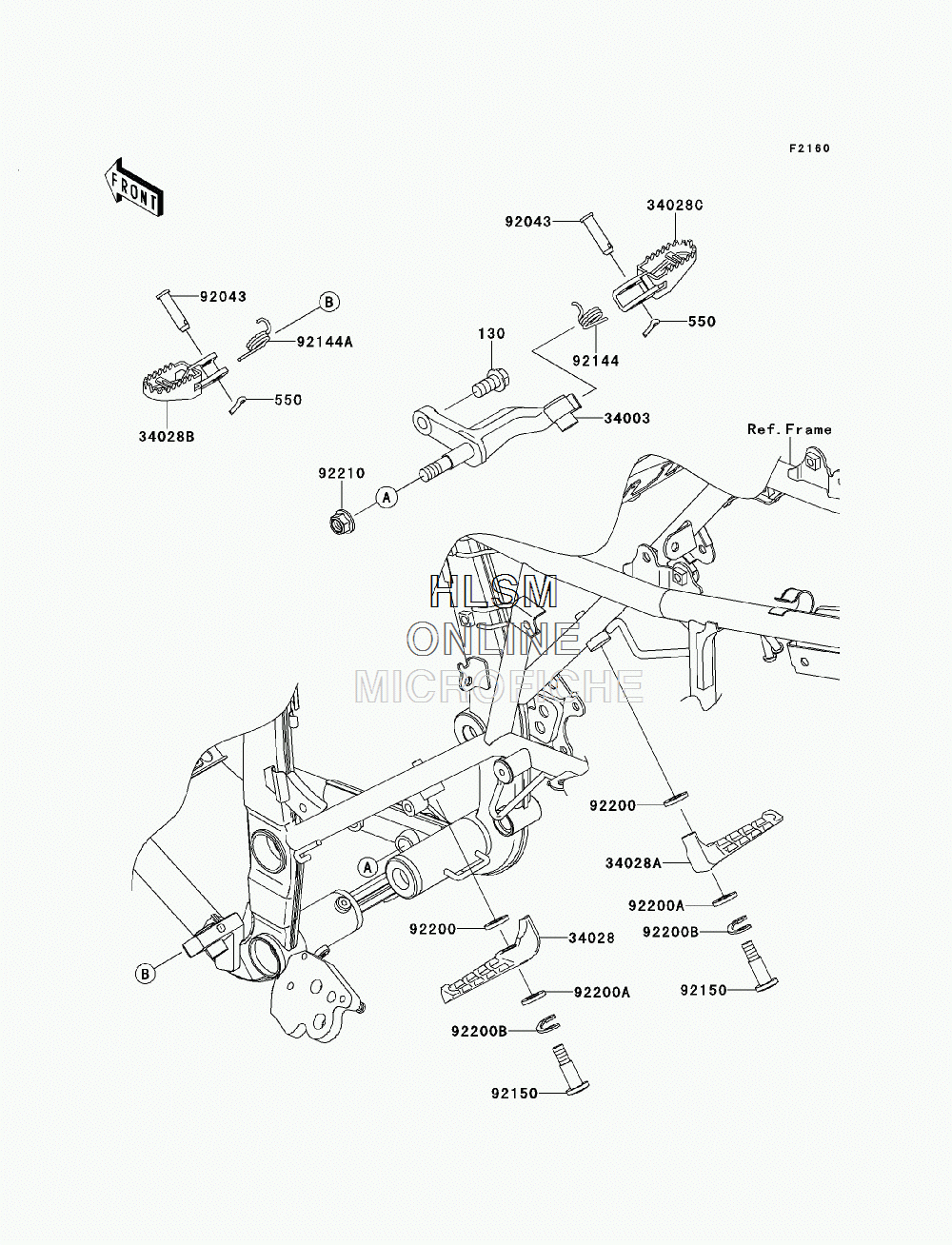

FOOTRESTS для Kawasaki KLX250S (KLX250TEF) - 2014 года выпуска
-
№АртикулНазвание
-
130130CA1020 BOLT-FLANGED, 10X20BOLT-FLANGED, 10X20
-
550550AA2515 PIN-COTTER, 2.5X15PIN-COTTER, 2.5X15
-
3400334003-0084-18R HOLDER-STEP, RIGHT HAND, (F.S.BLACK)HOLDER-STEP, RIGHT HAND, (F.S.BLACK)
-
3402834028-0325 STEP, REAR, LEFT HANDSTEP, REAR, LEFT HAND
-
34028A34028-0326 STEP, REAR, RIGHT HANDSTEP, REAR, RIGHT HAND
-
34028B34028-1361 STEP, FRONT, LEFT HANDSTEP, FRONT, LEFT HAND
-
34028C34028-1362 STEP, FRONT, RIGHT HANDSTEP, FRONT, RIGHT HAND
-
9204392043-115 PIN, 8X35.5PIN, 8X35.5
-
9214492144-1685 SPRING, STEP RETURN, RIGHT HANDSPRING, STEP RETURN, RIGHT HAND
-
92144A92144-1749 SPRING, STEP RETURN, LEFT HANDSPRING, STEP RETURN, LEFT HAND
-
9215092150-1584 BOLT, SOCKET, 8X34BOLT, SOCKET, 8X34
-
9220092200-0089 WASHER, 8.5X16X1.2WASHER, 8.5X16X1.2
-
92200A92200-1042 WASHER, 10.5X19X2.3WASHER, 10.5X19X2.3
-
92200B92200-1133 WASHER, SPRINGWASHER, SPRING
-
9221092210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
