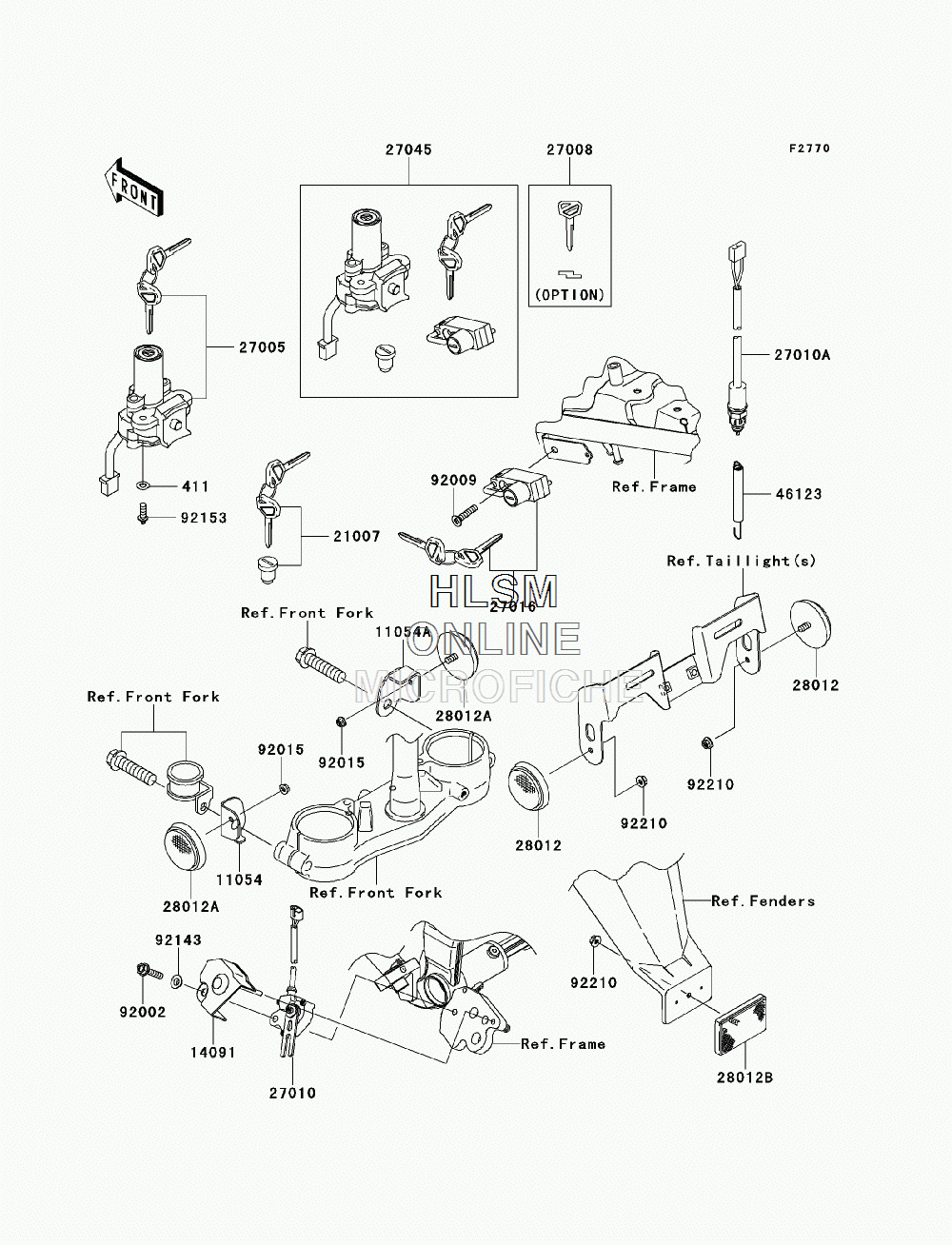

IGNITION SWITCH/LOCKS/REFLECTORS для Kawasaki KLX250S (KLX250TEF) - 2014 года выпуска
-
№АртикулНазвание
-
411411AA0600 WASHER-PLAIN, 6.5X13X1WASHER-PLAIN, 6.5X13X1
-
1105411054-0367 BRACKET, REFLECTOR, FRONT, LEFT HANDBRACKET, REFLECTOR, FRONT, LEFT HAND
-
11054A11054-0368 BRACKET, REFLECTOR, FRONT, RIGHT HANDBRACKET, REFLECTOR, FRONT, RIGHT HAND
-
1409114091-1553 COVER, SIDE STAND SWITCHCOVER, SIDE STAND SWITCH
-
2100721007-5040 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-0046 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-1170 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
2701027010-0097 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010A27010-1489 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-5207 LOCK-ASSY, HELMETLOCK-ASSY, HELMET
-
2704527045-5383 SWITCH-ASSYSWITCH-ASSY
-
2801228012-0002 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
28012A28012-016 REFLECTOR-REFLEX, FRONTREFLECTOR-REFLEX, FRONT
-
28012B28012-1088 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
4612346123-0008 SPRING-COMP, REAR BRAKE SWITCHSPRING-COMP, REAR BRAKE SWITCH
-
9200292002-1582 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
9200992009-1753 SCREW, 6X30SCREW, 6X30
-
9201592015-1259 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
9214392143-1331 COLLARCOLLAR
-
9215392153-0967 BOLT, TORX, 6X16BOLT, TORX, 6X16
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
