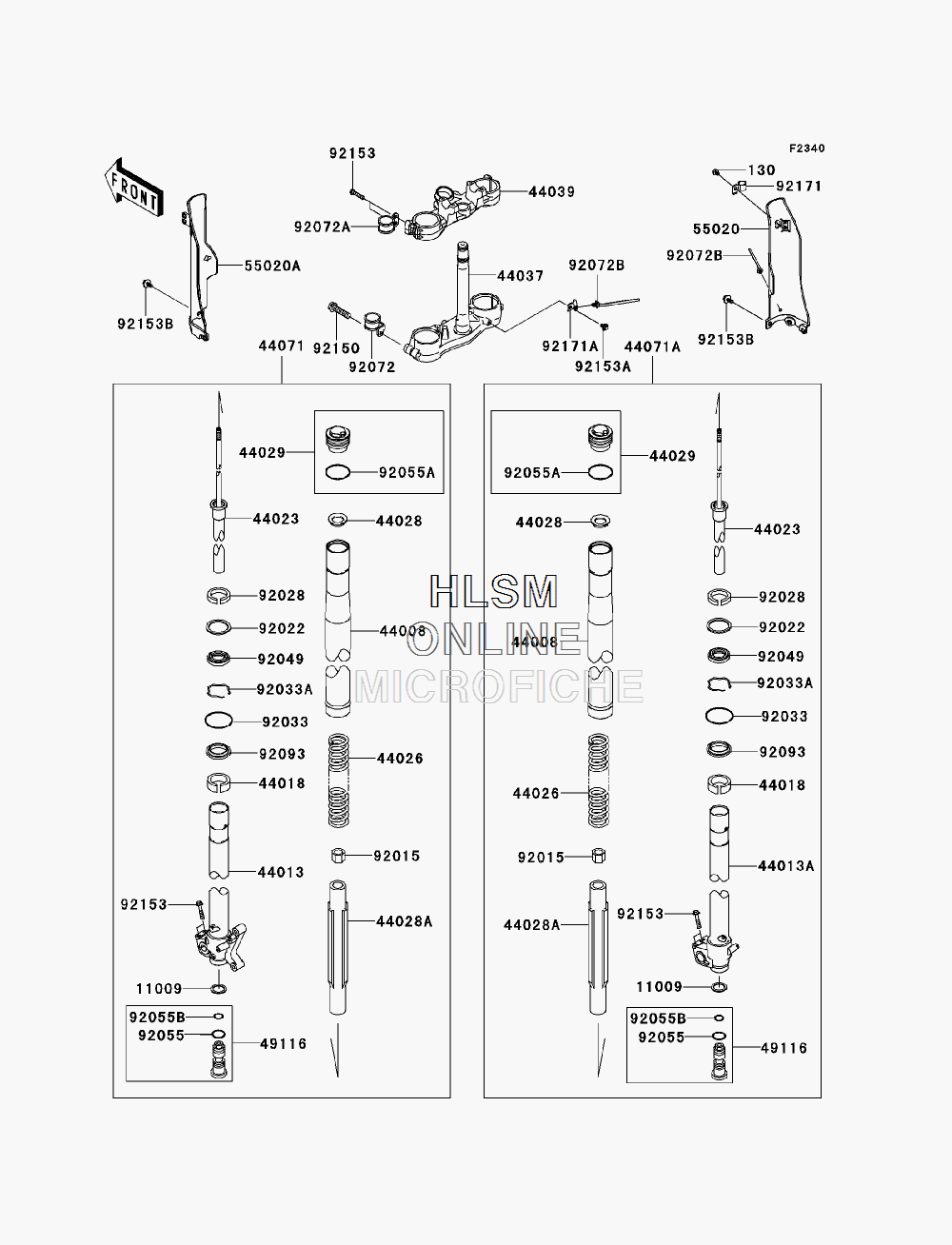

FRONT FORK для Kawasaki KLX250S (KLX250TEF) - 2014 года выпуска
-
№АртикулНазвание
-
130130BB0608 BOLT-FLANGED, 6X8BOLT-FLANGED, 6X8
-
1100911009-1592 GASKET, FORK CYLINDER BOLTGASKET, FORK CYLINDER BOLT
-
4400844008-0032-KX PIPE-FORK OUTER, (SILVER)PIPE-FORK OUTER, (SILVER)
-
4401344013-0090-458 PIPE-FORK INNER, LEFT HAND, (P.SILVER)PIPE-FORK INNER, LEFT HAND, (P.SILVER)
-
44013A44013-0092-458 PIPE-FORK INNER, RIGHT HAND, (P.SILVER)PIPE-FORK INNER, RIGHT HAND, (P.SILVER)
-
4401844018-1056 PISTON-FORK, INNER PIPEPISTON-FORK, INNER PIPE
-
4402344023-0062 CYLINDER-SET-FORKCYLINDER-SET-FORK
-
4402644026-0103 SPRING-FRONT FORKSPRING-FRONT FORK
-
4402844028-1081 GUIDE-FORK SPRINGGUIDE-FORK SPRING
-
44028A44028-1084 GUIDE-FORK SPRINGGUIDE-FORK SPRING
-
4402944029-0010-KX SEAT-FORK SPRING, (SILVER)SEAT-FORK SPRING, (SILVER)
-
4403744037-0078-18R HOLDER-FORK UNDER, (F.S.BLACK)HOLDER-FORK UNDER, (F.S.BLACK)
-
4403944039-0059-18R HOLDER-FORK UPPER, (F.S.BLACK)HOLDER-FORK UPPER, (F.S.BLACK)
-
4407144071-5074 DAMPER-ASSY, FORK, LEFT HAND, (SILVER)DAMPER-ASSY, FORK, LEFT HAND, (SILVER)
-
44071A44071-5075 DAMPER-ASSY, FORK, RIGHT HAND, (SILVER)DAMPER-ASSY, FORK, RIGHT HAND, (SILVER)
-
4911649116-1168 VALVE-ASSY, FORKVALVE-ASSY, FORK
-
5502055020-0320-6C GUARD, FORK, RIGHT HAND, (EBONY)GUARD, FORK, RIGHT HAND, (EBONY)
-
55020A55020-0484-6C GUARD, FORK, LEFT HAND, (EBONY)GUARD, FORK, LEFT HAND, (EBONY)
-
9201592015-1839 NUTNUT
-
9202292022-1299 WASHERWASHER
-
9202892028-1581 BUSHINGBUSHING
-
9203392033-0080 RING-SNAPRING-SNAP
-
92033A92033-1077 RING-SNAPRING-SNAP
-
9204992049-1373 SEAL-OILSEAL-OIL
-
9205592055-1156 RING-ORING-O
-
92055A92055-1333 RING-O, FORK, AIR TUBERING-O, FORK, AIR TUBE
-
92055B92055-1502 RING-O, FORK VALVERING-O, FORK VALVE
-
9207292072-1267 BANDBAND
-
92072A92072-1283 BANDBAND
-
92072B92072-1414 BANDBAND
-
9209392093-1342 SEAL, FORK OUTER TUBESEAL, FORK OUTER TUBE
-
9215092150-1446 BOLT, FLANGED, 8X40BOLT, FLANGED, 8X40
-
9215392153-0020 BOLT, 8X40BOLT, 8X40
-
92153A92153-0503 BOLT, 6X12BOLT, 6X12
-
92153B92153-0936 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
9217192171-1833 CLAMPCLAMP
-
92171A92171-1905 CLAMP, SPEED SENSOR HARNESSCLAMP, SPEED SENSOR HARNESS
