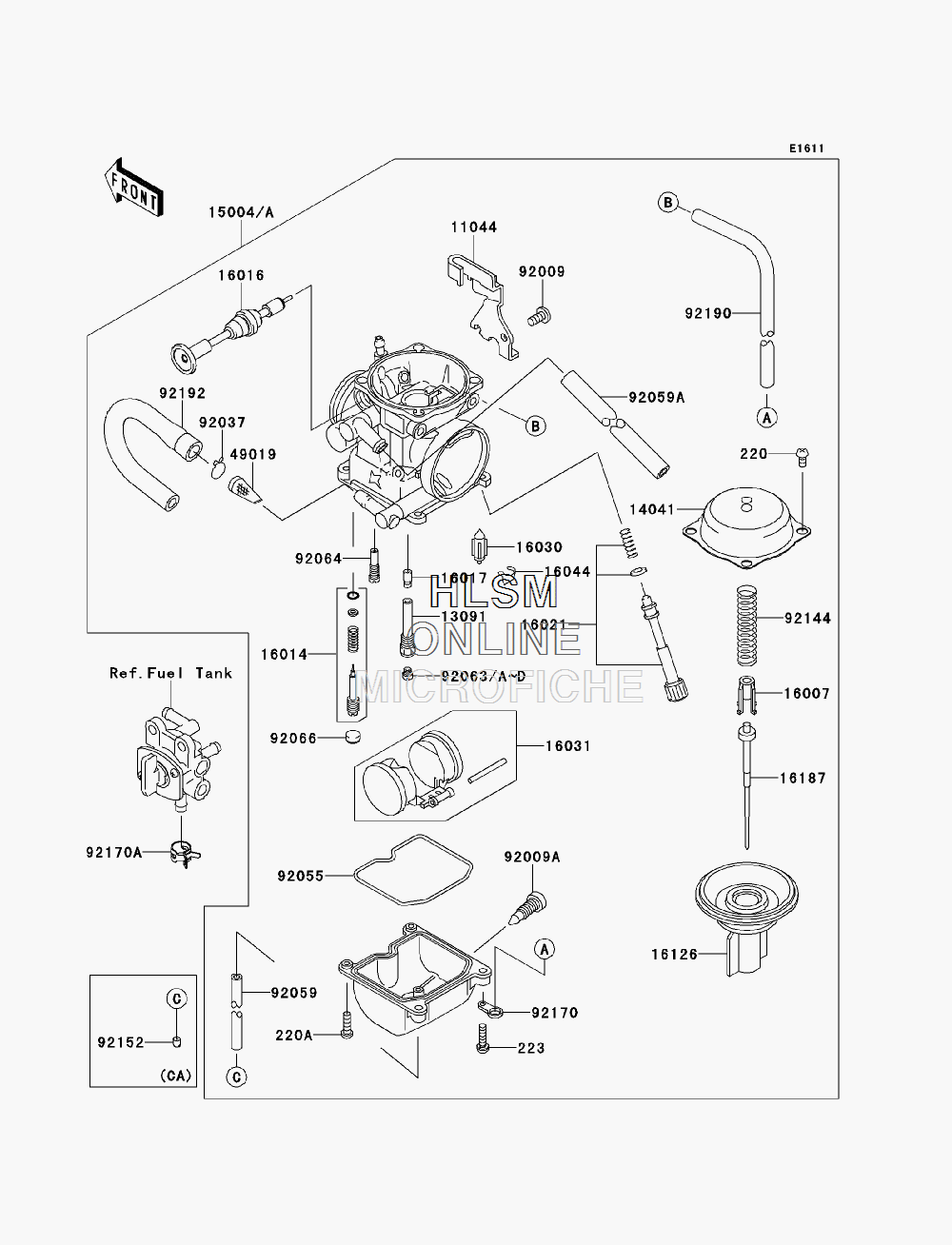

CARBURETOR для Kawasaki KLX250S (KLX250TEF) - 2014 года выпуска
-
№АртикулНазвание
-
1104411044-1353 BRACKET, THROTTLE CABLEBRACKET, THROTTLE CABLE
-
1309113091-1332 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
1404114041-1061 COVER-COMP, MIXING, INSIDECOVER-COMP, MIXING, INSIDE
-
1500415004-0023 CARBURETOR-ASSY, CVK34 (EXCEPT CALIF.)CARBURETOR-ASSY, CVK34 (EXCEPT CALIF.)
-
15004A15004-0029 CARBURETOR-ASSY, CVK34 (CALIF. ONLY)CARBURETOR-ASSY, CVK34 (CALIF. ONLY)
-
1600716007-1117 SEAT-SPRING, VALVESEAT-SPRING, VALVE
-
1601416014-1081 SCREW-PILOT AIRSCREW-PILOT AIR
-
1601616016-0013 PLUNGER, STARTERPLUNGER, STARTER
-
1601716017-1439 JET-NEEDLEJET-NEEDLE
-
1602116021-1201 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1603016030-1007 VALVE-FLOATVALVE-FLOAT
-
1603116031-1077 FLOATFLOAT
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1612616126-1339 VALVE, VACUUMVALVE, VACUUM
-
1618716187-0284 NEEDLE-JET, NNLANEEDLE-JET, NNLA
-
4901949019-1097 FILTER-FUELFILTER-FUEL
-
9200992009-1365 SCREW, 5X10SCREW, 5X10
-
92009A92009-1551 SCREW, DRAIN, 6X0.75SCREW, DRAIN, 6X0.75
-
9203792037-1075 CLAMP, FUEL TUBECLAMP, FUEL TUBE
-
9205592055-1222 RING-O, FLOAT CHAMBERRING-O, FLOAT CHAMBER
-
9205992059-1110 TUBE, 3.5X6.5X330TUBE, 3.5X6.5X330
-
92059A92059-1237 TUBE, 6.5X9.5X350TUBE, 6.5X9.5X350
-
9206392063-1071 JET-MAIN, #118JET-MAIN, #118
-
92063A92063-1072 JET-MAIN, #120 (OPTION)JET-MAIN, #120 (OPTION)
-
92063B92063-1073 JET-MAIN, #122 (OPTION)JET-MAIN, #122 (OPTION)
-
92063C92063-1117 JET-MAIN, #112 (OPTION)JET-MAIN, #112 (OPTION)
-
92063D92063-1118 JET-MAIN, #115 (OPTION)JET-MAIN, #115 (OPTION)
-
9206492064-1209 JET-PILOT, #35JET-PILOT, #35
-
9206692066-1051 PLUG, PILOT AIR SCREW, 6.9X2PLUG, PILOT AIR SCREW, 6.9X2
-
9214492144-1538 SPRING, VACUUM VALVESPRING, VACUUM VALVE
-
9215292152-0218 COLLAR, 0.8X4.2X5.0 (CALIF. ONLY)COLLAR, 0.8X4.2X5.0 (CALIF. ONLY)
-
9217092170-1496 CLAMP, TUBECLAMP, TUBE
-
92170A92170-1872 CLAMPCLAMP
-
9219092190-1560 TUBE, 5X8X430TUBE, 5X8X430
-
220220AA0408 SCREW-PAN-CROS, 4X8SCREW-PAN-CROS, 4X8
-
220A220AA0414 SCREW-PAN-CROS, 4X14SCREW-PAN-CROS, 4X14
-
223223AA0416 SCREW-PAN-WS-CROS, 4X16SCREW-PAN-WS-CROS, 4X16
-
9219292192-0742 TUBE, FUEL, L=150TUBE, FUEL, L=150
