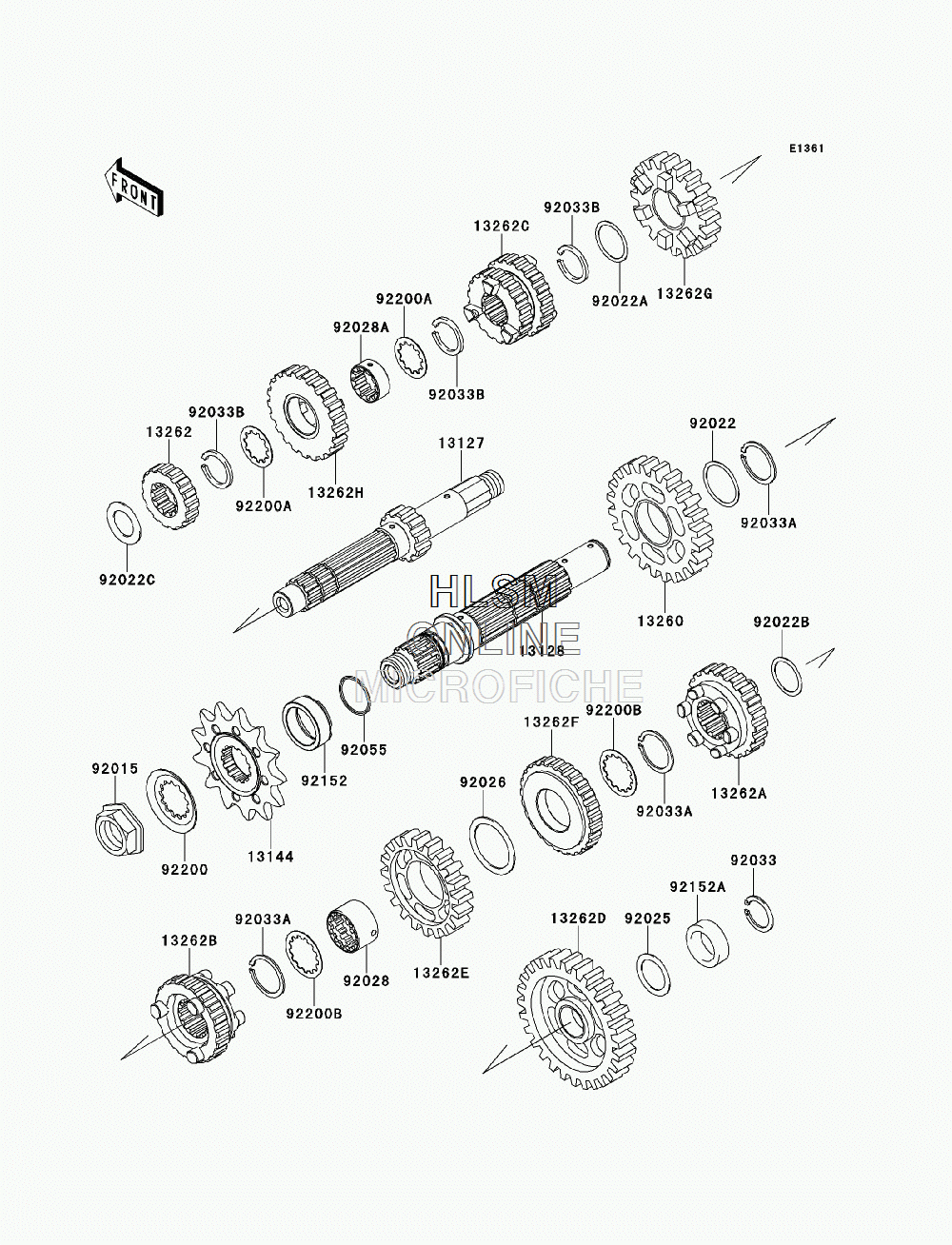

TRANSMISSION для Kawasaki KLX250S (KLX250TEF) - 2014 года выпуска
-
№АртикулНазвание
-
1312713127-0052 SHAFT-TRANSMISSION INPUT, 10TSHAFT-TRANSMISSION INPUT, 10T
-
1312813128-0039 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1314413144-0055 SPROCKET-OUTPUT, 14TSPROCKET-OUTPUT, 14T
-
1326013260-1386 GEAR, OUTPUT 2ND, 30TGEAR, OUTPUT 2ND, 30T
-
1326213262-0480 GEAR, INPUT 2ND, 15TGEAR, INPUT 2ND, 15T
-
13262A13262-0483 GEAR, OUTPUT 5TH, 21TGEAR, OUTPUT 5TH, 21T
-
13262B13262-0484 GEAR, OUTPUT TOP, 20TGEAR, OUTPUT TOP, 20T
-
13262C13262-0549 GEAR, INPUT 3RD & 4TH, 18T & 20TGEAR, INPUT 3RD & 4TH, 18T & 20T
-
13262D13262-0597 GEAR, OUTPUT LOW, 30TGEAR, OUTPUT LOW, 30T
-
13262E13262-0598 GEAR, OUTPUT 3RD, 27TGEAR, OUTPUT 3RD, 27T
-
13262F13262-0599 GEAR, OUTPUT 4TH, 25TGEAR, OUTPUT 4TH, 25T
-
13262G13262-0600 GEAR, INPUT 5TH, 20TGEAR, INPUT 5TH, 20T
-
13262H13262-0704 GEAR, INPUT TOP, 21TGEAR, INPUT TOP, 21T
-
9201592015-1963 NUT, 20MMNUT, 20MM
-
9202292022-159 WASHER, 25.3X30X0.5WASHER, 25.3X30X0.5
-
92022A92022-198 WASHER, 22.3X27X0.5WASHER, 22.3X27X0.5
-
92022B92022-252 WASHER, 20.5X25.5X0.5WASHER, 20.5X25.5X0.5
-
92022C92022-255 WASHER, 17.3X28X1WASHER, 17.3X28X1
-
9202592025-1451 SHIM, T=0.7SHIM, T=0.7
-
9202692026-079 SPACER, 30X38X1.0SPACER, 30X38X1.0
-
9202892028-1822 BUSHING, OUTPUT 3RD & 4TH GEARBUSHING, OUTPUT 3RD & 4TH GEAR
-
92028A92028-1823 BUSHING, INPUT TOP GEARBUSHING, INPUT TOP GEAR
-
9203392033-029 RING-SNAP, 18MMRING-SNAP, 18MM
-
92033A92033-1172 RING-SNAP, 25MMRING-SNAP, 25MM
-
92033B92033-1293 RING-SNAPRING-SNAP
-
9205592055-0196 RING-O, 21.5X1.5RING-O, 21.5X1.5
-
9215292152-1350 COLLARCOLLAR
-
92152A92152-1357 COLLAR, 20X28X8.5COLLAR, 20X28X8.5
-
9220092200-0851 WASHERWASHER
-
92200A92200-1370 WASHER, INPUTWASHER, INPUT
-
92200B92200-1371 WASHER, OUTPUTWASHER, OUTPUT
