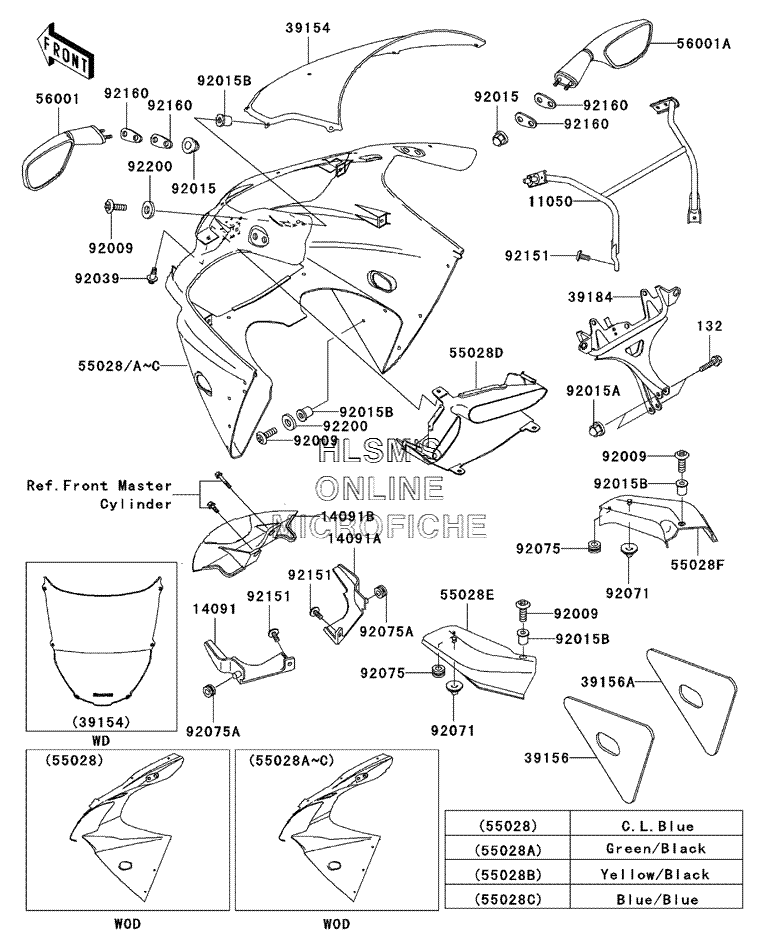

COWLING для Kawasaki NINJA ZX-6R - 2001 года выпуска
-
№АртикулНазвание
-
132132J0830 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1105011050-1640 BRACKET, MIRRORBRACKET, MIRROR
-
1409114091-1170 COVER, RADIATOR (LEFT)COVER, RADIATOR (LEFT)
-
14091A14091-1171 COVER, RADIATOR (RIGHT)COVER, RADIATOR (RIGHT)
-
14091B14091-1271 COVER, UNDER BRACKETCOVER, UNDER BRACKET
-
3915439154-5013 WINDSHIELDWINDSHIELD
-
3915639156-1622 PAD, UPPER COWLING (LEFT)PAD, UPPER COWLING (LEFT)
-
39156A39156-1623 PAD, UPPER COWLING (RIGHT)PAD, UPPER COWLING (RIGHT)
-
3918439184-1085 BRACKET, ASSY., MAINBRACKET, ASSY., MAIN
-
5502855028-1390-E1 COWLING, UPPER (C.L.BLUE) (US ONLY)COWLING, UPPER (C.L.BLUE) (US ONLY)
-
55028A55028-1390-3I COWLING, UPPER (GREEN/BLACK)COWLING, UPPER (GREEN/BLACK)
-
55028B55028-1390-4I COWLING, UPPER (YELLOW/BLACK)COWLING, UPPER (YELLOW/BLACK)
-
55028C55028-1390-5I COWLING, UPPER (BLUE) (CANADA ONLY)COWLING, UPPER (BLUE) (CANADA ONLY)
-
55028D55028-1391-3L COWLING, DUCT (M.F.C.GRAY)COWLING, DUCT (M.F.C.GRAY)
-
55028E55028-1394 COWLING, INNER (LEFT)COWLING, INNER (LEFT)
-
55028F55028-1395 COWLING, INNER (RIGHT)COWLING, INNER (RIGHT)
-
5600156001-1483 MIRROR, ASSY. (LEFT)MIRROR, ASSY. (LEFT)
-
56001A56001-1484 MIRROR, ASSY. (RIGHT)MIRROR, ASSY. (RIGHT)
-
9200992009-1909 SCREW, 5X16SCREW, 5X16
-
9201592015-1170 NUT, CAP, 6MM (BLACK)NUT, CAP, 6MM (BLACK)
-
92015A92015-1174 NUT, CAP, 8MM (BLACK)NUT, CAP, 8MM (BLACK)
-
92015B92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9203992039-1227 RIVETRIVET
-
9207192071-1222 GROMMETGROMMET
-
9207592075-1067 DAMPERDAMPER
-
92075A92075-1912 DAMPERDAMPER
-
9215192151-1654 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
9216092160-1089 DAMPER, MIRRORDAMPER, MIRROR
-
9220092200-1480 WASHER, NYLON, 5.3X11.5X0.5WASHER, NYLON, 5.3X11.5X0.5
