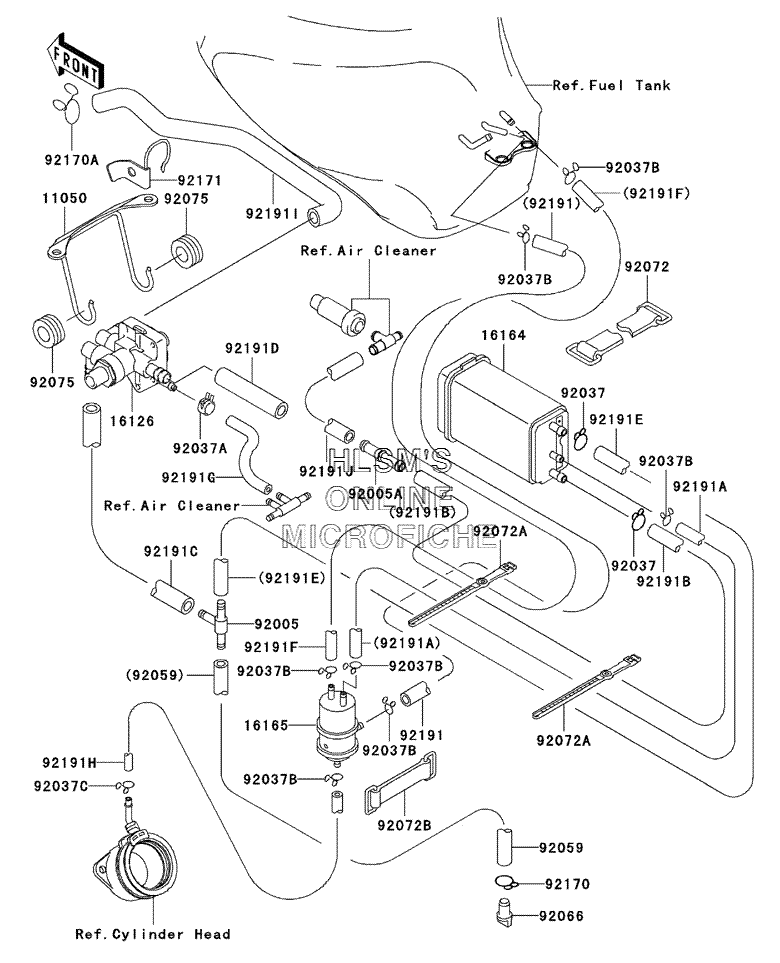

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki NINJA ZX-6R - 2001 года выпуска
-
№АртикулНазвание
-
1105011050-1729 BRACKETBRACKET
-
1612616126-1354 VALVEVALVE
-
1616416164-1052 CANISTERCANISTER
-
1616516165-1001 SEPARATORSEPARATOR
-
9200592005-1304 FITTINGFITTING
-
92005A92005-1377 FITTINGFITTING
-
9203792037-1104 CLAMP, HOSECLAMP, HOSE
-
92037A92037-1461 CLAMP, TUBECLAMP, TUBE
-
92037B92037-147 CLAMP, TUBECLAMP, TUBE
-
92037C92037-1712 CLAMPCLAMP
-
9205992059-1440 TUBE, 7X12X440 (YELLOW)TUBE, 7X12X440 (YELLOW)
-
9206692066-1211 PLUG, DRAINPLUG, DRAIN
-
9207292072-045 BAND, L=90BAND, L=90
-
92072A92072-1195 BAND, L=202BAND, L=202
-
92072B92072-1419 BAND, L=50BAND, L=50
-
9207592075-1621 DAMPER, MUFFLERDAMPER, MUFFLER
-
9217092170-1529 CLAMPCLAMP
-
92170A92170-1997 CLAMPCLAMP
-
9217192171-1236 CLAMPCLAMP
-
9219192191-1234 TUBE, SEPARATOR, TANK (RED)TUBE, SEPARATOR, TANK (RED)
-
92191A92191-1236 TUBE, SEPARATOR, CANIST (BLUE)TUBE, SEPARATOR, CANIST (BLUE)
-
92191B92191-1237 TUBE, CANISTER, FILTER (GREEN)TUBE, CANISTER, FILTER (GREEN)
-
92191C92191-1238 TUBE, VALVE, FITTING (YELLOW)TUBE, VALVE, FITTING (YELLOW)
-
92191D92191-1240 TUBE, CARB, VALVETUBE, CARB, VALVE
-
92191E92191-1250 TUBE, FITTING, CANIST (YELLOW)TUBE, FITTING, CANIST (YELLOW)
-
92191F92191-1268 TUBE, SEPARATOR, TANK (BLUE)TUBE, SEPARATOR, TANK (BLUE)
-
92191G92191-1275 TUBE, FITTING, VALVETUBE, FITTING, VALVE
-
92191H92191-1276 TUBE, SEPARATOR, CARB (WHITE)TUBE, SEPARATOR, CARB (WHITE)
-
92191I92191-1503 TUBE, AIR VENT, VALVETUBE, AIR VENT, VALVE
-
92191J92191-1514 TUBETUBE
