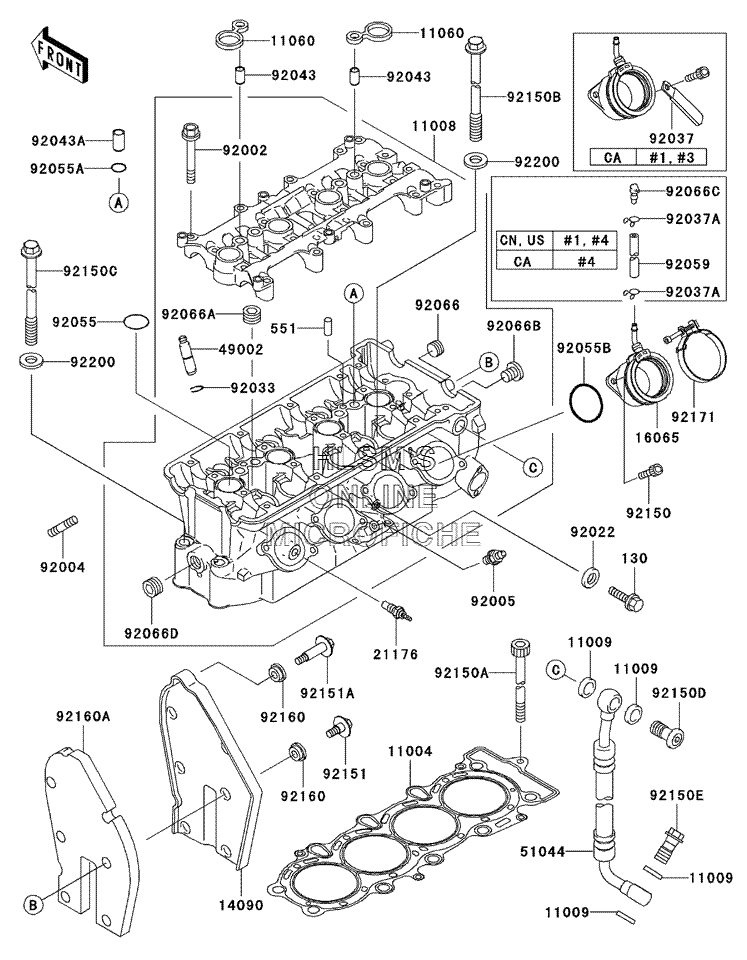

CYLINDER HEAD для Kawasaki NINJA ZX-6R - 2001 года выпуска
-
№АртикулНазвание
-
1100411004-1348 GASKET, HEADGASKET, HEAD
-
1100811008-1397 HEAD, COMP, CYLINDERHEAD, COMP, CYLINDER
-
1100911009-1461 GASKET, 14X19.5X1.4GASKET, 14X19.5X1.4
-
1106011060-1861 GASKET, BEARING CAPGASKET, BEARING CAP
-
1409014090-1900 COVERCOVER
-
1606516065-1375 HOLDER, CARBURETORHOLDER, CARBURETOR
-
2117621176-1075 SENSORSENSOR
-
4900249002-1144 GUIDE, VALVEGUIDE, VALVE
-
5104451044-1179 TUBE, ASSY., OILTUBE, ASSY., OIL
-
9200292002-1756 BOLT, 6X40BOLT, 6X40
-
9200492004-1249 STUD, 8X22STUD, 8X22
-
9200592005-1273 FITTINGFITTING
-
9202292022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9203392033-1247 RING, SNAPRING, SNAP
-
9203792037-1539 CLAMP, L=45 (CALIF. ONLY)CLAMP, L=45 (CALIF. ONLY)
-
92037A92037-1712 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
92037A92037-1712 CLAMP (EXCEPT CALIF.)CLAMP (EXCEPT CALIF.)
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043A92043-1264 PIN, 8.2X10X14PIN, 8.2X10X14
-
9205592055-1403 O-RING, 25.5X2O-RING, 25.5X2
-
92055A92055-1469 O-RING, 11.5X1.5O-RING, 11.5X1.5
-
92055B92055-1536 O-RING, 42X1.9O-RING, 42X1.9
-
9205992059-1058 TUBE, 4X9X100 (CALIF. ONLY)TUBE, 4X9X100 (CALIF. ONLY)
-
9205992059-1058 TUBE, 4X9X100 (EXCEPT CALIF.)TUBE, 4X9X100 (EXCEPT CALIF.)
-
9206692066-1227 PLUG, PT1/8X7PLUG, PT1/8X7
-
92066A92066-1253 PLUG, PT1/2X12.5PLUG, PT1/2X12.5
-
92066B92066-1260 PLUG, PT1/4X8.9PLUG, PT1/4X8.9
-
92066C92066-1347 PLUG (CALIF. ONLY)PLUG (CALIF. ONLY)
-
92066C92066-1347 PLUG (EXCEPT CALIF.)PLUG (EXCEPT CALIF.)
-
92066D92066-1420 PLUG, PT3/8X10PLUG, PT3/8X10
-
9215092150-1818 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
92150A92150-1928 BOLT, SOCKET, 6X92BOLT, SOCKET, 6X92
-
92150B92150-1934 BOLT, L=148BOLT, L=148
-
92150C92150-1935 BOLT, L=140BOLT, L=140
-
92150D92150-1944 BOLTBOLT
-
92150E92150-1945 BOLTBOLT
-
9215192151-1299 BOLT, L=17BOLT, L=17
-
130130Y0610 BOLT, FLANGEDBOLT, FLANGED
-
551551A0612 PIN, DOWEL, 6X12PIN, DOWEL, 6X12
-
92151A92151-1836 BOLT, 6X34BOLT, 6X34
-
9216092160-1681 DAMPERDAMPER
-
92160A92160-1894 DAMPERDAMPER
-
9217192171-1155 CLAMPCLAMP
-
9220092200-1042 WASHER, 10.5X19X2.3WASHER, 10.5X19X2.3
