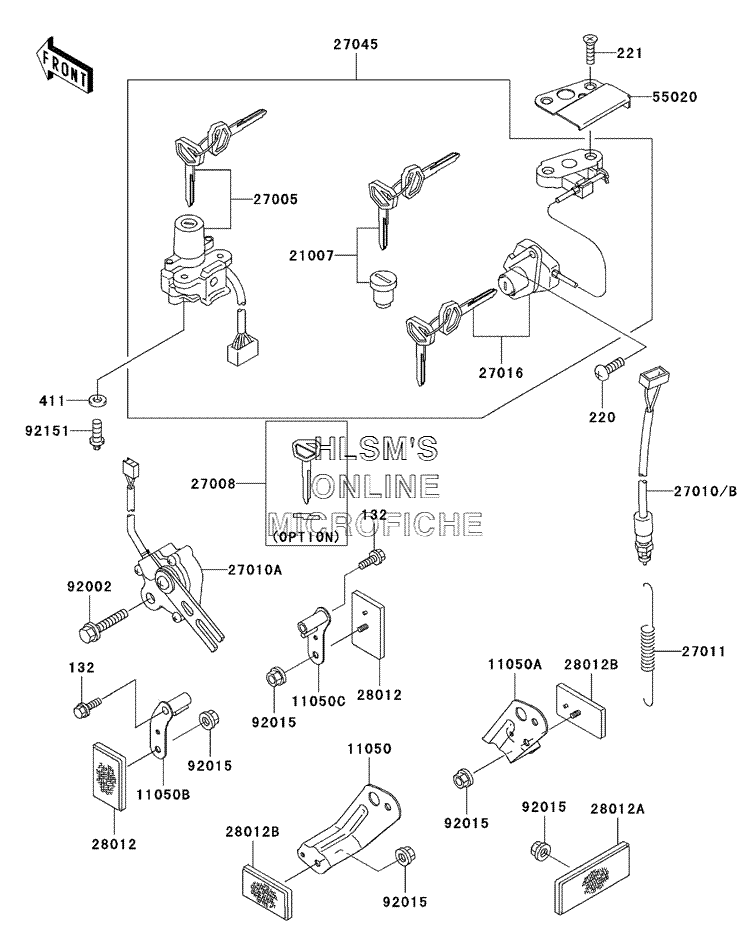

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki NINJA ZX-6R - 2001 года выпуска
-
№АртикулНазвание
-
132132J0635 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
220220C0612 SCREW, PAN, CROS, 6X12SCREW, PAN, CROS, 6X12
-
221221B0628 SCREW, CSK, CROS, 6X28SCREW, CSK, CROS, 6X28
-
411411E0600 WASHER, PLAIN, 6MMWASHER, PLAIN, 6MM
-
1105011050-1483 BRACKET, REFLECTOR, REAR (LEFT)BRACKET, REFLECTOR, REAR (LEFT)
-
11050A11050-1484 BRACKET, REFLECTOR, REAR (RIGHT)BRACKET, REFLECTOR, REAR (RIGHT)
-
11050B11050-1849 BRACKET, REFLECTOR, FRONT (LEFT)BRACKET, REFLECTOR, FRONT (LEFT)
-
11050C11050-1850 BRACKET, REFLECTOR, FRONT (RIGHT)BRACKET, REFLECTOR, FRONT (RIGHT)
-
2100721007-5035 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-1213 SWITCH, ASSY., IGNITIONSWITCH, ASSY., IGNITION
-
2700827008-1170 KEY, LOCK, BLANK (OPT)KEY, LOCK, BLANK (OPT)
-
2701027010-1152 SWITCH, BRAKE LAMPSWITCH, BRAKE LAMP
-
27010A27010-1344 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2701127011-017 SPRING, BRAKE LAMP SWITCHSPRING, BRAKE LAMP SWITCH
-
2701627016-5241 LOCK, ASSY., SEATLOCK, ASSY., SEAT
-
2704527045-5067 SWITCH, ASSY.SWITCH, ASSY.
-
2801228012-1003 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
28012A28012-1077 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
28012B28012-1088 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
5502055020-1483 GUARD, SEAT LOCKGUARD, SEAT LOCK
-
9200292002-1582 BOLT, 6X25BOLT, 6X25
-
9201592015-1259 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
9215192151-1911 BOLT, TORX, 6X16BOLT, TORX, 6X16
