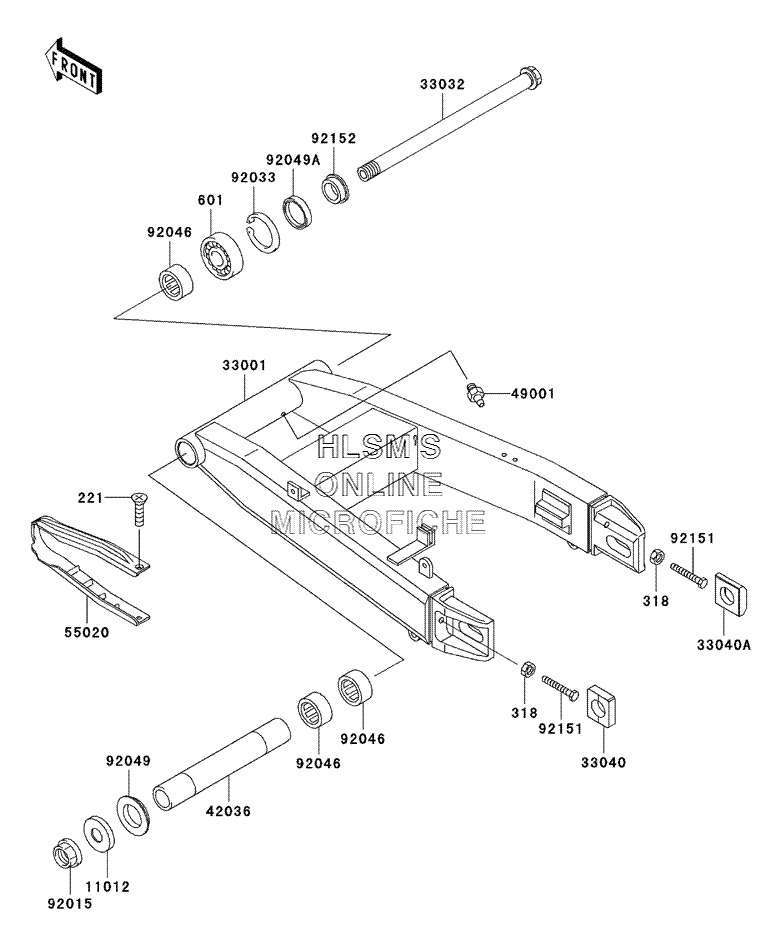

SUSPENSION - SWINGARM для Kawasaki NINJA ZX-6R - 2001 года выпуска
-
№АртикулНазвание
-
221221C0508 SCREW, CSK, CROS, 5X8SCREW, CSK, CROS, 5X8
-
318318G0800 NUT, HEX, SMALL, 8MMNUT, HEX, SMALL, 8MM
-
601601A6004 BEARING, BALL, #6004BEARING, BALL, #6004
-
1101211012-1658 CAPCAP
-
3300133001-1579-TX ARM, COMP, SWING (SILVER)ARM, COMP, SWING (SILVER)
-
3303233032-1191 SHAFT, SWING ARMSHAFT, SWING ARM
-
3304033040-1114 ADJUSTER, CHAINADJUSTER, CHAIN
-
33040A33040-1180 ADJUSTER, CHAIN (RIGHT)ADJUSTER, CHAIN (RIGHT)
-
4203642036-1283 SLEEVE, SWING ARM, L=213SLEEVE, SWING ARM, L=213
-
4900149001-1051 NIPPLE, GREASENIPPLE, GREASE
-
5502055020-1702 GUARD, CHAINGUARD, CHAIN
-
9201592015-1724 NUT, FLANGED, 20MMNUT, FLANGED, 20MM
-
9203392033-1041 RING, SNAP, 42MMRING, SNAP, 42MM
-
9204692046-1111 BEARING, NEEDLE, BM2817BEARING, NEEDLE, BM2817
-
9204992049-1181 SEAL, OILSEAL, OIL
-
92049A92049-1314 SEAL, OIL, MHSA25 42 6SEAL, OIL, MHSA25 42 6
-
9215192151-1578 BOLT, 8X55BOLT, 8X55
-
9215292152-1234 COLLAR, SWING ARM, L=12.5COLLAR, SWING ARM, L=12.5
