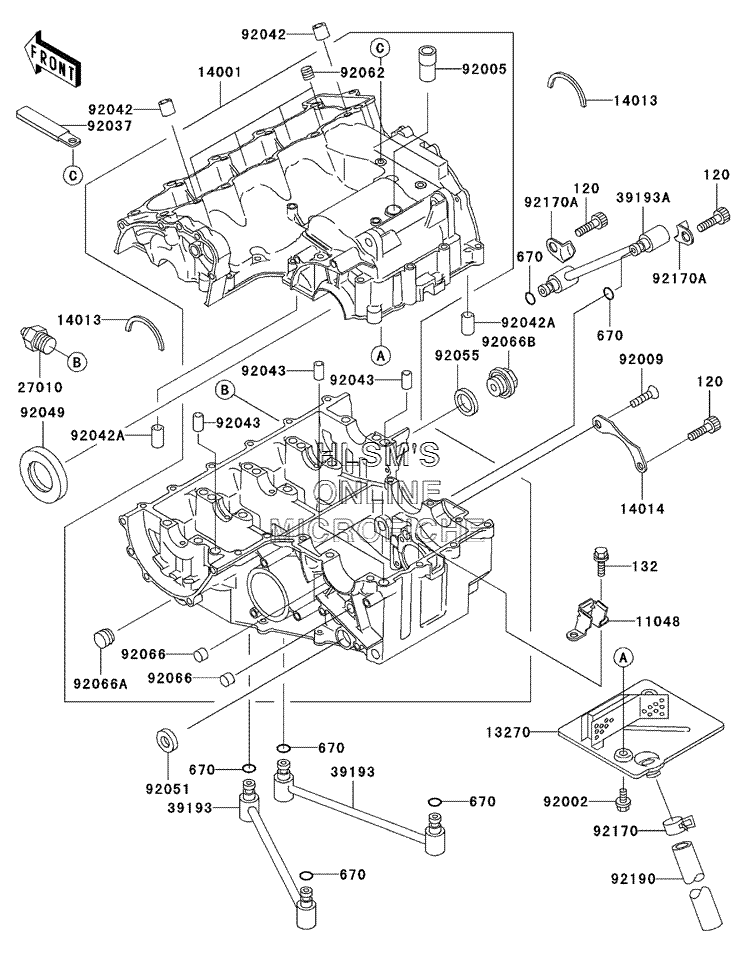

CRANKCASE для Kawasaki NINJA ZX-6R - 2001 года выпуска
-
№АртикулНазвание
-
120120P0616 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
132132H0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
670670D1505 O-RINGO-RING
-
1104811048-1851 BRACKETBRACKET
-
1327013270-1349 PLATE, BREATHERPLATE, BREATHER
-
1400114001-1269 SET, CRANKCASESET, CRANKCASE
-
1401314013-004 RING, POSITIONRING, POSITION
-
1401414014-1123 PLATE, POSITIONPLATE, POSITION
-
2701027010-1313 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
3919339193-1019 PIPE, OIL, MAIN, INPUTPIPE, OIL, MAIN, INPUT
-
39193A39193-1020 PIPE, OILPIPE, OIL
-
9200292002-1449 BOLT, 6X10BOLT, 6X10
-
9200592005-1238 FITTING, BREATHERFITTING, BREATHER
-
9200992009-1360 SCREW, 6X16SCREW, 6X16
-
9203792037-1069 CLAMP, WIRING HARNESS, L=60CLAMP, WIRING HARNESS, L=60
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
92042A92042-016 PIN, DOWEL, 6X16PIN, DOWEL, 6X16
-
9204392043-1506 PINPIN
-
9204992049-1307 SEAL, OIL, TC32528SEAL, OIL, TC32528
-
9205192051-005 SEAL, OIL, TB13225.5SEAL, OIL, TB13225.5
-
9205592055-1146 O-RINGO-RING
-
9206292062-1086 NOZZLE, 5X6 (SILVER)NOZZLE, 5X6 (SILVER)
-
9206692066-1110 PLUGPLUG
-
92066A92066-1252 PLUG, PT3/8X12PLUG, PT3/8X12
-
92066B92066-1394 PLUG, MAIN GALLERY, 18X9PLUG, MAIN GALLERY, 18X9
-
9217092170-1167 CLAMPCLAMP
-
92170A92170-1578 CLAMPCLAMP
-
9219092190-1580 TUBE, 9X12X180TUBE, 9X12X180
