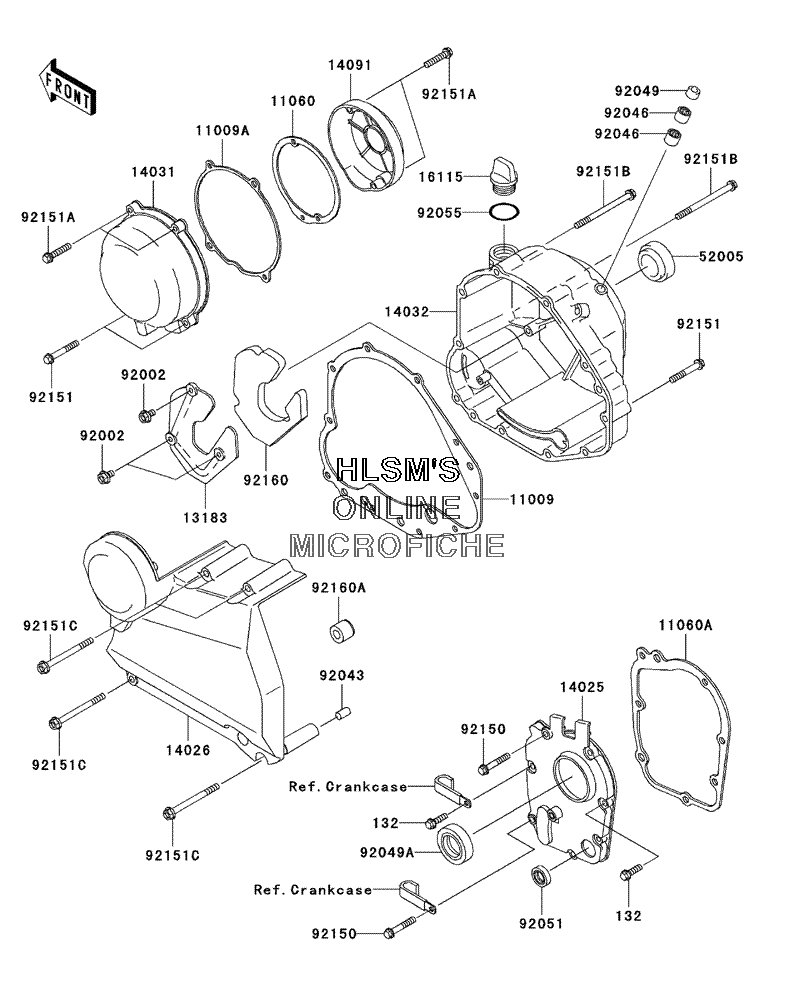

ENGINE COVER для Kawasaki ZR-7S - 2001 года выпуска
-
№АртикулНазвание
-
132132Y0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1100911009-1984 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
11009A11009-1987 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
1106011060-1053 GASKET, PULSING COIL CAPGASKET, PULSING COIL CAP
-
11060A11060-1899 GASKET, TRANSMISSION COVERGASKET, TRANSMISSION COVER
-
1318313183-1620 PLATE, SOUND ARRESTERPLATE, SOUND ARRESTER
-
1402514025-1605 COVER, TRANSMISSIONCOVER, TRANSMISSION
-
1402614026-1264 COVER, CHAINCOVER, CHAIN
-
1403114031-1367 COVER, GENERATORCOVER, GENERATOR
-
1403214032-1496 COVER, CLUTCHCOVER, CLUTCH
-
1409114091-1102 COVER, PULSINGCOVER, PULSING
-
1611516115-1009 CAP, OIL FILLERCAP, OIL FILLER
-
5200552005-1017 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
9200292002-1449 BOLT, 6X10BOLT, 6X10
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204692046-1010 BEARING, NEEDLE, HK1210BEARING, NEEDLE, HK1210
-
9204992049-1271 SEAL, OIL, TB12205.5SEAL, OIL, TB12205.5
-
92049A92049-1506 SEAL, OIL, HTC 32 52 10SEAL, OIL, HTC 32 52 10
-
9205192051-005 SEAL, OIL, TB13225.5SEAL, OIL, TB13225.5
-
9205592055-049 O-RING, 31.7X2.4O-RING, 31.7X2.4
-
9215092150-1137 BOLT, 6X35BOLT, 6X35
-
9215192151-1131 BOLT, 6X40BOLT, 6X40
-
92151A92151-1134 BOLT, 6X30BOLT, 6X30
-
92151B92151-1200 BOLT, 6X80BOLT, 6X80
-
92151C92151-1482 BOLT, 6X70BOLT, 6X70
-
9216092160-1246 DAMPER, SOUND ARRESTERDAMPER, SOUND ARRESTER
-
92160A92160-1993 DAMPERDAMPER
