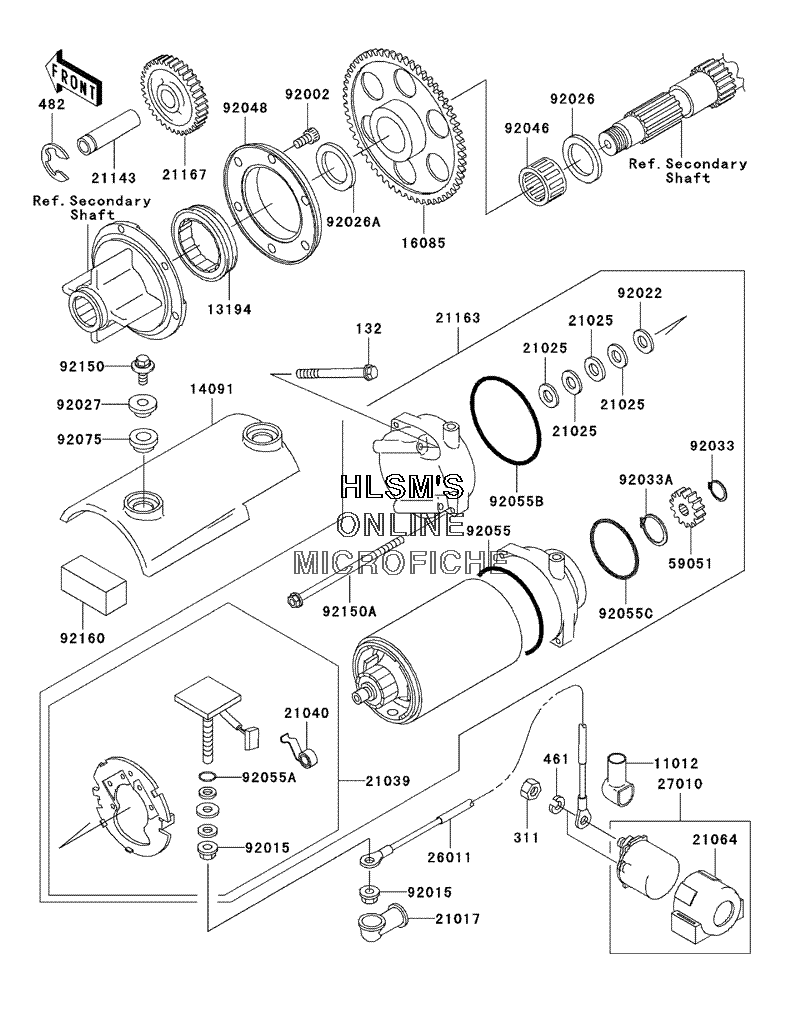

STARTER MOTOR для Kawasaki ZR-7S - 2001 года выпуска
-
№АртикулНазвание
-
132132G0660 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
311311B0600 NUT, HEX, 6MMNUT, HEX, 6MM
-
461461F0600 WASHER, SPRING, 6MMWASHER, SPRING, 6MM
-
482482J0200 CIRCLIP, TYPE, E, 12MMCIRCLIP, TYPE, E, 12MM
-
1101211012-1354 CAP, TERMINALCAP, TERMINAL
-
1319413194-1086 CLUTCH, ONEWAYCLUTCH, ONEWAY
-
1409114091-1104 COVER, STERTERMOTORCOVER, STERTERMOTOR
-
1608516085-1300 GEAR, STARTER, 58TGEAR, STARTER, 58T
-
2101721017-017 GROMMET, STARTER TERMINALGROMMET, STARTER TERMINAL
-
2102521025-011 WASHER, 9.1X18X0.2WASHER, 9.1X18X0.2
-
2103921039-1062 BRUSH, CARBONBRUSH, CARBON
-
2104021040-1057 SPRING, BRUSHSPRING, BRUSH
-
2106421064-002 DAMPER, MAGNETIC SWITCHDAMPER, MAGNETIC SWITCH
-
2114321143-003 SHAFT, IDLE GEARSHAFT, IDLE GEAR
-
2116321163-1222 STARTER, ELECTRICSTARTER, ELECTRIC
-
2116721167-004 GEAR, SPUR, IDLE (29 TEETH)GEAR, SPUR, IDLE (29 TEETH)
-
2601126011-1809 WIRE, LEADWIRE, LEAD
-
2701027010-1410 SWITCH, MAGNETICSWITCH, MAGNETIC
-
5905159051-1401 GEAR, SPUR, STARTERGEAR, SPUR, STARTER
-
9200292002-1796 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
9201592015-1476 NUT, STARTER MOTORNUT, STARTER MOTOR
-
9202292022-1132 WASHER, 9.1X18X0.8WASHER, 9.1X18X0.8
-
9202692026-1025 SPACER, 25X36X3.2SPACER, 25X36X3.2
-
92026A92026-1533 SPACER, 25.3X36X2.0SPACER, 25.3X36X2.0
-
9202792027-1848 COLLAR, L=7.4COLLAR, L=7.4
-
9203392033-037 RING, SNAP, 13MMRING, SNAP, 13MM
-
92033A92033-1326 RING, SNAP, 17MMRING, SNAP, 17MM
-
9204692046-056 BEARING, NEEDLE, K253017BEARING, NEEDLE, K253017
-
9204892048-1068 RACE, ONEWAY CLUTCHRACE, ONEWAY CLUTCH
-
9205592055-1086 O-RING, 64MMO-RING, 64MM
-
92055A92055-1370 O-RING, 4.5X2.0O-RING, 4.5X2.0
-
92055B92055-1381 O-RING, STARTER MOTORO-RING, STARTER MOTOR
-
92055C92055-1669 O-RING, 40MMO-RING, 40MM
-
9207592075-1244 DAMPERDAMPER
-
9215092150-1506 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
92150A92150-1729 BOLT, FLANGED, 6X120BOLT, FLANGED, 6X120
-
9216092160-1272 DAMPERDAMPER
