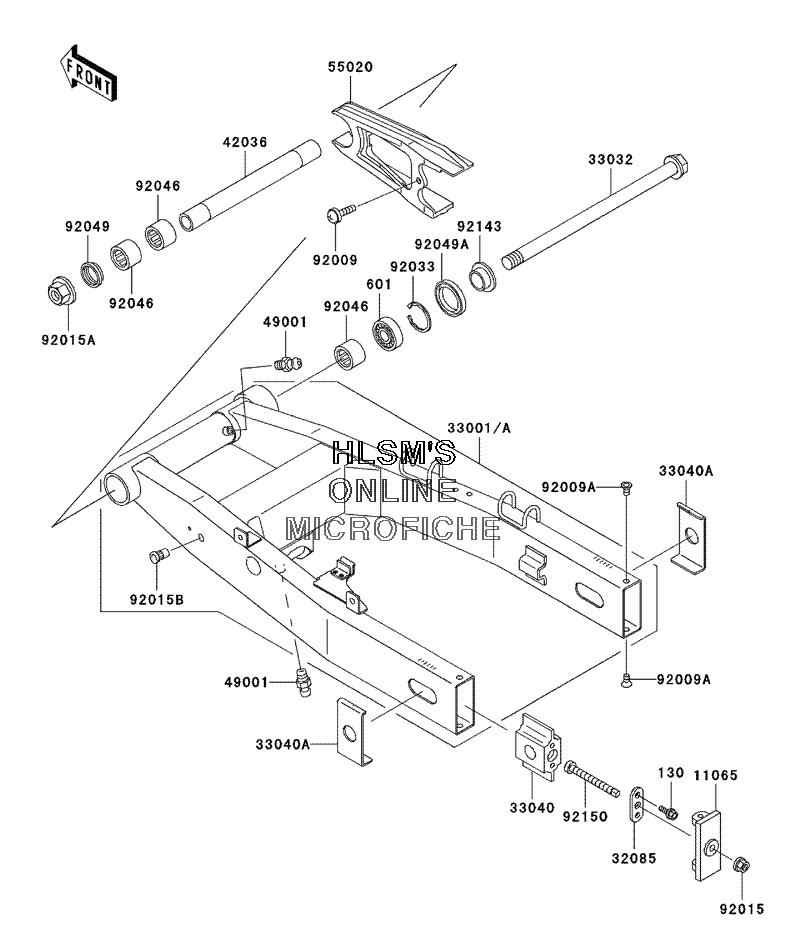

SUSPENSION - SWINGARM для Kawasaki ZR-7S - 2001 года выпуска
-
№АртикулНазвание
-
130130P0616 BOLT, FLANGEDBOLT, FLANGED
-
601601A6004 BEARING, BALL, #6004BEARING, BALL, #6004
-
1106511065-1132-CE CAP, CHAIN ADJUSTER (SILVER)CAP, CHAIN ADJUSTER (SILVER)
-
3208532085-1408 STOPPER, CHAIN ADJUSTERSTOPPER, CHAIN ADJUSTER
-
3300133001-1569-CE ARM, COMP, SWING (SILVER)ARM, COMP, SWING (SILVER)
-
3303233032-1142 SHAFT, SWING ARMSHAFT, SWING ARM
-
3304033040-1142 ADJUSTER, CHAIN, INNERADJUSTER, CHAIN, INNER
-
33040A33040-1143 ADJUSTER, CHAIN, OUTERADJUSTER, CHAIN, OUTER
-
4203642036-1358 SLEEVE, SWING ARM, L=219.5SLEEVE, SWING ARM, L=219.5
-
4900149001-0001 NIPPLE, GREASENIPPLE, GREASE
-
5502055020-1690 GUARD, CHAINGUARD, CHAIN
-
9200992009-1664 SCREW, 6X22SCREW, 6X22
-
92009A92009-1894 SCREW, 6X12SCREW, 6X12
-
9201592015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015A92015-1724 NUT, FLANGED, 20MMNUT, FLANGED, 20MM
-
92015B92015-1791 NUT, POP, 6MM, L=15NUT, POP, 6MM, L=15
-
9203392033-1041 RING, SNAP, 42MMRING, SNAP, 42MM
-
9204692046-1111 BEARING, NEEDLE, BM2817BEARING, NEEDLE, BM2817
-
9204992049-1181 SEAL, OILSEAL, OIL
-
92049A92049-1185 SEAL, OIL, TC28426.5SEAL, OIL, TC28426.5
-
9214392143-1727 COLLAR, SWING ARM (RIGHT) L=12.5COLLAR, SWING ARM (RIGHT) L=12.5
-
9215092150-1285 BOLT, CHAIN ADJUSTERBOLT, CHAIN ADJUSTER
