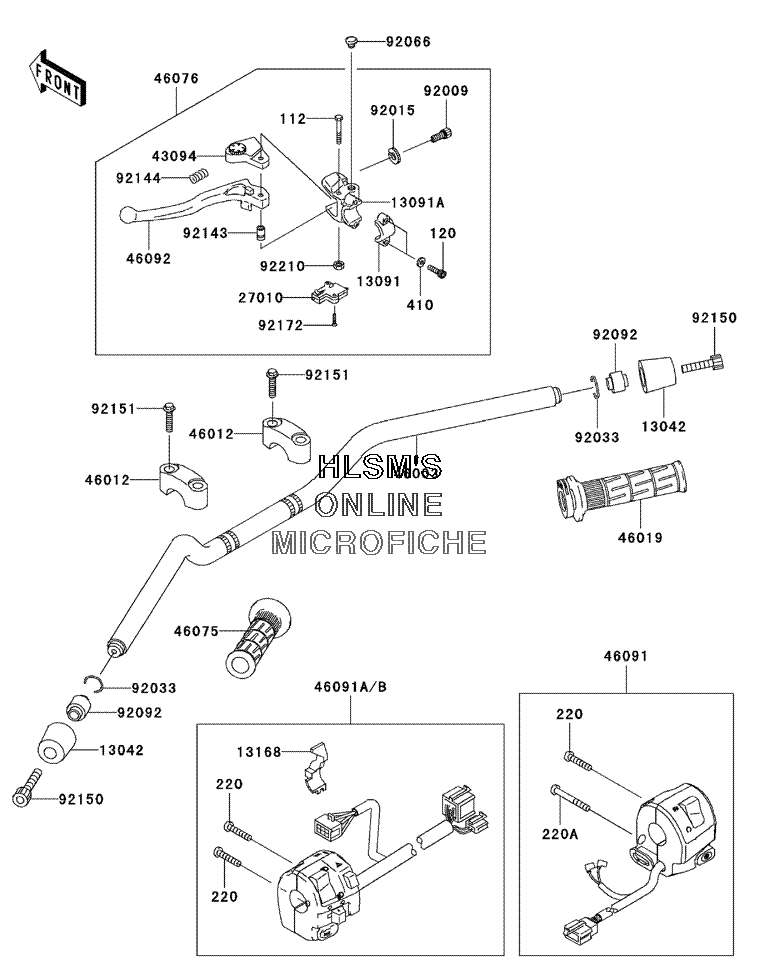

HANDLEBAR для Kawasaki ZR-7S - 2001 года выпуска
-
№АртикулНазвание
-
112112C0640 BOLT, UPSETBOLT, UPSET
-
120120S0620 BOLT, SOCKETBOLT, SOCKET
-
220220C0525 SCREW, PAN, CROSSCREW, PAN, CROS
-
220A220C0540 SCREW, PAN, CROSSCREW, PAN, CROS
-
410410F0600 WASHER, PLAIN, SMALL, 6MM (BLACK)WASHER, PLAIN, SMALL, 6MM (BLACK)
-
1304213042-1006 WEIGHT, HANDLEWEIGHT, HANDLE
-
1309113091-1624 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
13091A13091-1652 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
1316813168-1516 LEVER, CHOKELEVER, CHOKE
-
2701027010-1094 SWITCH, CLUTCH (BLACK)SWITCH, CLUTCH (BLACK)
-
4309443094-1053 ADJUSTER, CLUTCH LEVERADJUSTER, CLUTCH LEVER
-
4600346003-1561 HANDLEHANDLE
-
4601246012-1295 HOLDER, HANDLE, UPPERHOLDER, HANDLE, UPPER
-
4601946019-0001 GRIP, ASSY., THROTTLEGRIP, ASSY., THROTTLE
-
4607546075-1144 GRIP (LEFT)GRIP (LEFT)
-
4607646076-1180 LEVER, ASSY., GRIP, CLUTCHLEVER, ASSY., GRIP, CLUTCH
-
4609146091-1672 HOUSING, ASSY., CONTROL (RIGHT)HOUSING, ASSY., CONTROL (RIGHT)
-
46091A46091-1716 HOUSING, ASSY., CONTROL (LEFT)HOUSING, ASSY., CONTROL (LEFT)
-
4609246092-1162 LEVER, GRIP, CLUTCHLEVER, GRIP, CLUTCH
-
9200992009-1134 SCREW, CABLE ADJUST, 8MM (BLACK)SCREW, CABLE ADJUST, 8MM (BLACK)
-
9201592015-1197 NUT, CABLE ADJUST LOCK, 8MM, BLKNUT, CABLE ADJUST LOCK, 8MM, BLK
-
9203392033-1102 RING, SNAP, OD=22.2RING, SNAP, OD=22.2
-
9206692066-1077 PLUG, 9.5X8, POLYETHYLENEPLUG, 9.5X8, POLYETHYLENE
-
9209292092-1018 BUSHING, RUBBER, HANDLEBUSHING, RUBBER, HANDLE
-
9214392143-1379 COLLARCOLLAR
-
9214492144-1467 SPRINGSPRING
-
9215092150-1604 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
9215192151-1537 BOLT, FLANGED, 8X35BOLT, FLANGED, 8X35
-
9217292172-0183 SCREW, 3X16SCREW, 3X16
-
9221092210-0006 NUT, LOCK, 6MMNUT, LOCK, 6MM
