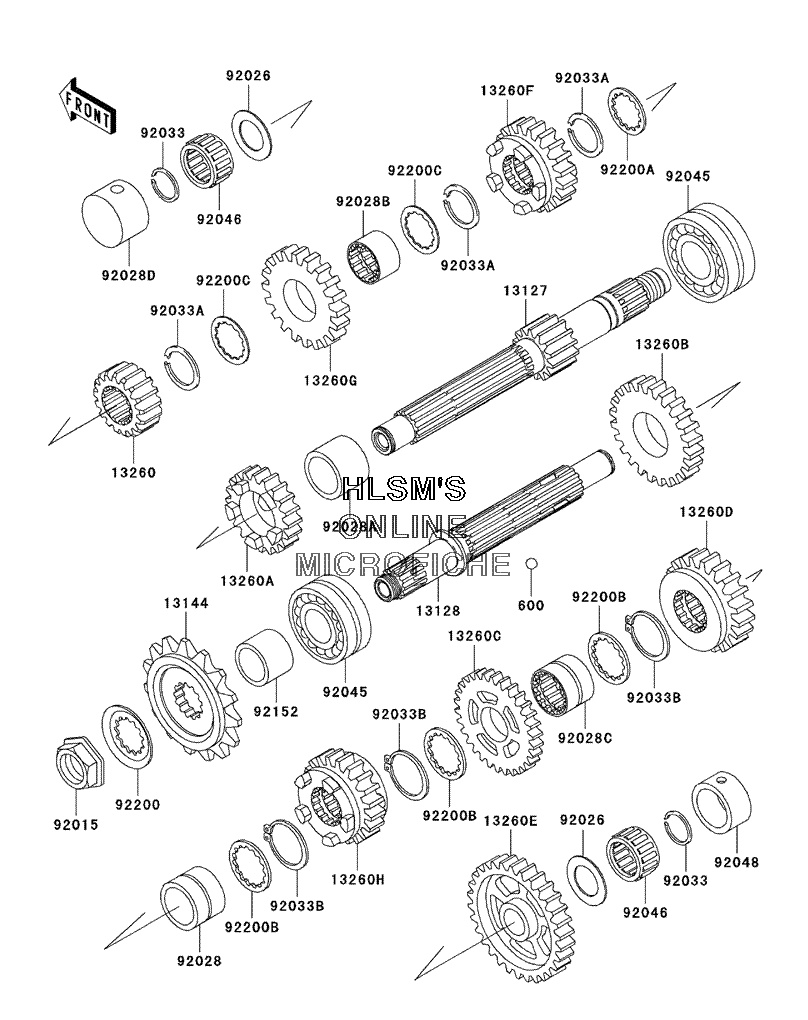

TRANSMISSION для Kawasaki ZR-7S - 2001 года выпуска
-
№АртикулНазвание
-
600600A0500 BALL, STEEL, 5/32"BALL, STEEL, 5/32"
-
1312713127-1272 SHAFT, TRANSMISSION INPUT (15 TEETH)SHAFT, TRANSMISSION INPUT (15 TEETH)
-
1312813128-1243 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1314413144-1256 SPROCKET, OUTERPUT (16 TEETH)SPROCKET, OUTERPUT (16 TEETH)
-
1326013260-1793 GEAR, INPUT 2ND (19 TEETH)GEAR, INPUT 2ND (19 TEETH)
-
13260A13260-1795 GEAR, INPUT 4TH (25 TEETH)GEAR, INPUT 4TH (25 TEETH)
-
13260B13260-1796 GEAR, OUTERPUT 2ND (31 TEETH)GEAR, OUTERPUT 2ND (31 TEETH)
-
13260C13260-1797 GEAR, OUTERPUT 3RD (28 TEETH)GEAR, OUTERPUT 3RD (28 TEETH)
-
13260D13260-1798 GEAR, OUTERPUT 4TH (26 TEETH)GEAR, OUTERPUT 4TH (26 TEETH)
-
13260E13260-1845 GEAR, OUTERPUT LOW (35 TEETH)GEAR, OUTERPUT LOW (35 TEETH)
-
13260F13260-1847 GEAR, INPUT 3RD (22 TEETH)GEAR, INPUT 3RD (22 TEETH)
-
13260G13260-1848 GEAR, INPUT TOP (24 TEETH)GEAR, INPUT TOP (24 TEETH)
-
13260H13260-1865 GEAR, OUTERPUT TOP (21 TEETH)GEAR, OUTERPUT TOP (21 TEETH)
-
9201592015-1963 NUT, 20MMNUT, 20MM
-
9202692026-1528 SPACER, 20.5X33X1.0SPACER, 20.5X33X1.0
-
9202892028-1739 BUSHING, OUTERPUT, 2NDBUSHING, OUTERPUT, 2ND
-
92028A92028-1914 BUSHING, INPUT 4TH GEARBUSHING, INPUT 4TH GEAR
-
92028B92028-1915 BUSHING, INPUT TOP GEARBUSHING, INPUT TOP GEAR
-
92028C92028-1916 BUSHING, OUTERPUT 3RD GEARBUSHING, OUTERPUT 3RD GEAR
-
92028D92028-1952 BUSHING, INPUT SHAFTBUSHING, INPUT SHAFT
-
9203392033-015 RING, SNAP, 20MMRING, SNAP, 20MM
-
92033A92033-026 RING, SNAP, 24MMRING, SNAP, 24MM
-
92033B92033-1249 RING, SNAP, T=1.5RING, SNAP, T=1.5
-
9204592045-035 BEARING, BALL, 83993SH2, CSBEARING, BALL, 83993SH2, CS
-
9204692046-1274 BEARING, NEEDLEBEARING, NEEDLE
-
9204892048-1105 RACERACE
-
9215292152-1156 COLLAR, 25X32X40COLLAR, 25X32X40
-
9220092200-1065 WASHERWASHER
-
92200A92200-1239 WASHER, 25.2X31.0X1.5WASHER, 25.2X31.0X1.5
-
92200B92200-1240 WASHER, 28.5X34.0X1.5WASHER, 28.5X34.0X1.5
-
92200C92200-1298 WASHER, 25.2X31.8X1.0WASHER, 25.2X31.8X1.0
