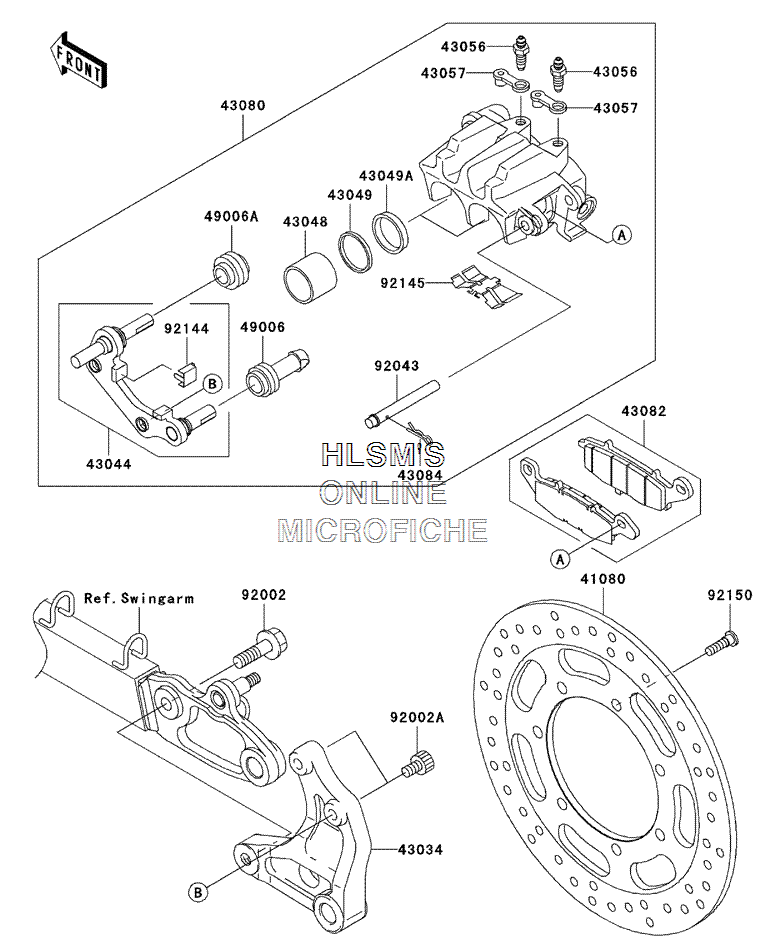

BRAKE - REAR для Kawasaki Vulcan 1600 Classic - 2005 года выпуска
-
№АртикулНазвание
-
4108041080-1525-CM DISC, REAR (SILVER)DISC, REAR (SILVER)
-
4303443034-1178 HOLDER-BRAKE, REAR CALIPERHOLDER-BRAKE, REAR CALIPER
-
4304443044-1134 HOLDER-COMP-CALIPER, REARHOLDER-COMP-CALIPER, REAR
-
4304843048-1094 PISTON-CALIPERPISTON-CALIPER
-
4304943049-1068 PACKINGPACKING
-
43049A43049-1092 PACKING, PISTON SEALPACKING, PISTON SEAL
-
4305643056-1054 BREATHER-BRAKEBREATHER-BRAKE
-
4305743057-003 CAP-BREATHERCAP-BREATHER
-
4308043080-5098-GN CALIPER-SUB-ASSY, REAR (SILVER)CALIPER-SUB-ASSY, REAR (SILVER)
-
4308243082-1264 PAD-ASSY-BRAKEPAD-ASSY-BRAKE
-
4308443084-003 CLAMP, PADCLAMP, PAD
-
4900649006-1094 BOOT, CALIPERBOOT, CALIPER
-
49006A49006-1095 BOOT, CALIPERBOOT, CALIPER
-
9200292002-1510 BOLT, FLANGED, 12X40BOLT, FLANGED, 12X40
-
92002A92002-1713 BOLT, SOCKET, 10X17BOLT, SOCKET, 10X17
-
9204392043-1640 PIN, PADPIN, PAD
-
9214492144-1831 SPRING, STOPPERSPRING, STOPPER
-
9214592145-1382 SPRING, PADSPRING, PAD
-
9215092150-1771 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
