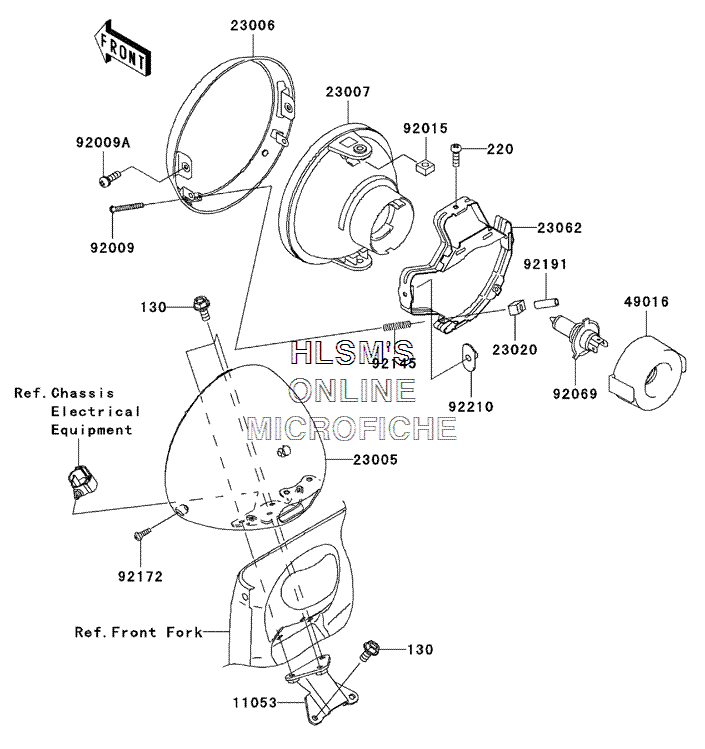

HEADLIGHT(S) для Kawasaki Vulcan 1600 Classic - 2005 года выпуска
-
№АртикулНазвание
-
130130H0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
220220D0516 SCREW-PAN-CROSSSCREW-PAN-CROSS
-
1105311053-0324 BRACKET, HEAD LAMPBRACKET, HEAD LAMP
-
2300523005-1205 BODY-COMP-HEAD LAMPBODY-COMP-HEAD LAMP
-
2300623006-1081 RIM-LAMPRIM-LAMP
-
2300723007-1396 LENS-COMP, HEAD LAMPLENS-COMP, HEAD LAMP
-
2302023020-018 NUT, 4MM, FOCUS ADJUSTNUT, 4MM, FOCUS ADJUST
-
2306223062-1132 BRACKET-COMP, HEAD LAMPBRACKET-COMP, HEAD LAMP
-
4901649016-1203 COVER-SEAL, SOCKETCOVER-SEAL, SOCKET
-
9200992009-1816 SCREW, FOCUS ADJUST, 4X60SCREW, FOCUS ADJUST, 4X60
-
92009A92009-1879 SCREW, 5X16SCREW, 5X16
-
9201592015-1157 NUT, 5MMNUT, 5MM
-
9206992069-1002 BULB, 12V 60/55W, H4BULB, 12V 60/55W, H4
-
9214592145-1268 SPRING, HEAD LAMP LENSSPRING, HEAD LAMP LENS
-
9217292172-0145 SCREW, 5X14SCREW, 5X14
-
9219192191-1217 TUBE, 3.5X5.5X19TUBE, 3.5X5.5X19
-
9221092210-1060 NUT, SPECIAL, 5MMNUT, SPECIAL, 5MM
