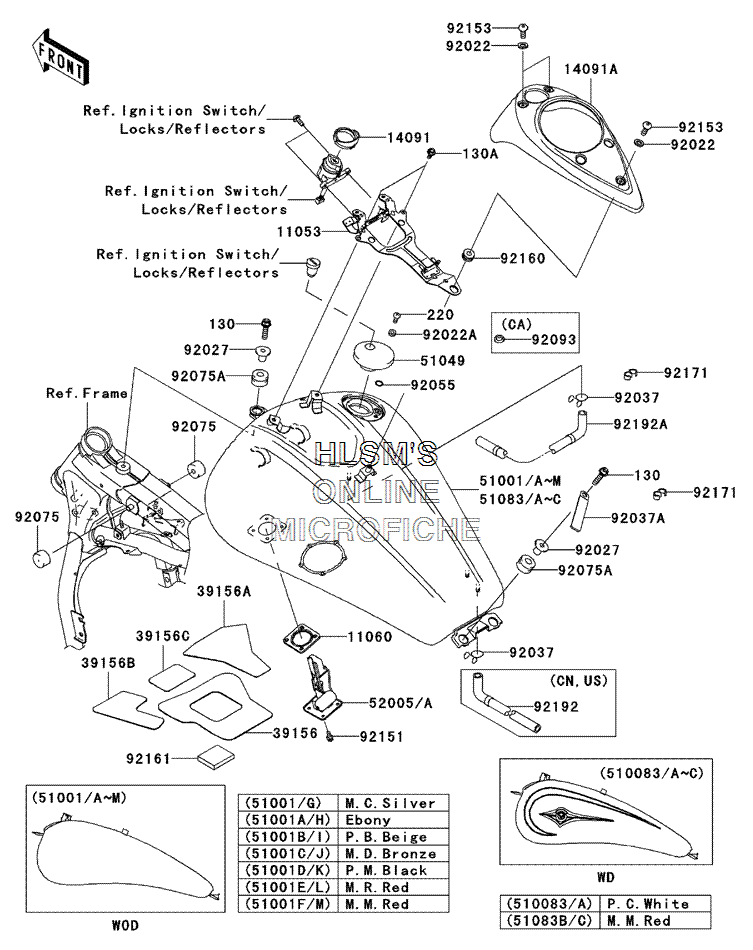

FUEL TANK для Kawasaki Vulcan 1600 Classic - 2005 года выпуска
-
№АртикулНазвание
-
1105311053-0275 BRACKET, METER COVERBRACKET, METER COVER
-
1106011060-1952 GASKET, FUEL GAUGEGASKET, FUEL GAUGE
-
1409114091-0088 COVER, IGNITION SWITCHCOVER, IGNITION SWITCH
-
14091A14091-0091 COVER, METERCOVER, METER
-
3915639156-0019 PAD, FUEL TANK, CENTER, REARPAD, FUEL TANK, CENTER, REAR
-
39156A39156-0020 PAD, FUEL TANK (RIGHT)PAD, FUEL TANK (RIGHT)
-
39156B39156-0021 PAD, FUEL TANK (LEFT)PAD, FUEL TANK (LEFT)
-
39156C39156-0022 PAD, FUEL TANK, CENTER, FRONTPAD, FUEL TANK, CENTER, FRONT
-
51001A51001-0017-H8 TANK-COMP-FUEL (EBONY) (CALIF, ONLY)TANK-COMP-FUEL (EBONY) (CALIF, ONLY)
-
51001B51001-0017-X8 TANK-COMP-FUEL (P.B.BEIGE) (CALIF, ONLY)TANK-COMP-FUEL (P.B.BEIGE) (CALIF, ONLY)
-
51001H51001-0018-H8 TANK-COMP-FUEL (EBONY) (EXCEPT CALIF.)TANK-COMP-FUEL (EBONY) (EXCEPT CALIF.)
-
51001I51001-0018-X8 TANK-COMP-FUEL (P.B.BEIGE) (EXCEPT CALIF.)TANK-COMP-FUEL (P.B.BEIGE) (EXCEPT CALIF.)
-
5104951049-0003 CAP-TANK, FUELCAP-TANK, FUEL
-
130130H0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
130A130J0614 BOLT-FLANGED, 6X14 (BLACK)BOLT-FLANGED, 6X14 (BLACK)
-
220220D0510 SCREW-PAN-CROSSCREW-PAN-CROS
-
51083B51083-5354-665 TANK-COMP-FUEL (M.M.RED) (EXCEPT CALIF.)TANK-COMP-FUEL (M.M.RED) (EXCEPT CALIF.)
-
51083C51083-5355-665 TANK-COMP-FUEL (M.M.RED) (CALIF, ONLY)TANK-COMP-FUEL (M.M.RED) (CALIF, ONLY)
-
52005A52005-0004 GAUGE, FUELGAUGE, FUEL
-
9202292022-183 WASHER, 6.2X11X1.5WASHER, 6.2X11X1.5
-
92022A92022-1977 WASHER, 5.1X10X1.0WASHER, 5.1X10X1.0
-
9202792027-1780 COLLAR, L=19.3COLLAR, L=19.3
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1636 CLAMP, HARNESS, L=100CLAMP, HARNESS, L=100
-
9205592055-1552 RING-O, ID=9RING-O, ID=9
-
9207592075-125 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92075A92075-1736 DAMPERDAMPER
-
9209392093-1030 SEAL, FUEL TANK CAP (CALIF, ONLY)SEAL, FUEL TANK CAP (CALIF, ONLY)
-
9215192151-1599 BOLT, 5X12BOLT, 5X12
-
9215392153-1096 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
-
9216092160-1162 DAMPERDAMPER
-
9216192161-1338 DAMPERDAMPER
-
9217192171-1184 CLAMPCLAMP
-
9219292192-0024 TUBE, BREATHER (EXCEPT CALIF.)TUBE, BREATHER (EXCEPT CALIF.)
-
92192A92192-0038 TUBE, DRAINTUBE, DRAIN
