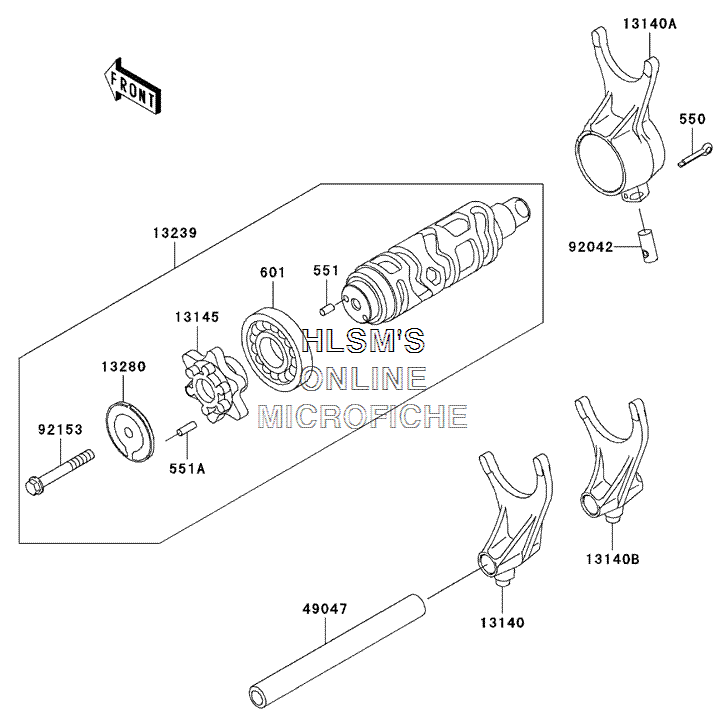

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki Vulcan 1600 Classic - 2005 года выпуска
-
№АртикулНазвание
-
550550D3020 PIN-COTTER, 3.0X20PIN-COTTER, 3.0X20
-
551551A0408 PIN-DOWEL, 4X8PIN-DOWEL, 4X8
-
551A551A0412 PIN-DOWELPIN-DOWEL
-
601601A6005 BEARING-BALLBEARING-BALL
-
1314013140-1270 FORK-SHIFT, OUTPUT TOPFORK-SHIFT, OUTPUT TOP
-
13140A13140-1292 FORK-SHIFT, INPUT 3RDFORK-SHIFT, INPUT 3RD
-
13140B13140-1293 FORK-SHIFT, OUTPUT 4THFORK-SHIFT, OUTPUT 4TH
-
1314513145-1089 CAM-CHANGE DRUMCAM-CHANGE DRUM
-
1323913239-1214 DRUM-ASSY-CHANGEDRUM-ASSY-CHANGE
-
1328013280-1300 HOLDERHOLDER
-
4904749047-1095 ROD-SHIFTROD-SHIFT
-
9204292042-021 PIN, DOWEL, 8X18PIN, DOWEL, 8X18
-
9215392153-1281 BOLT, 6X45BOLT, 6X45
