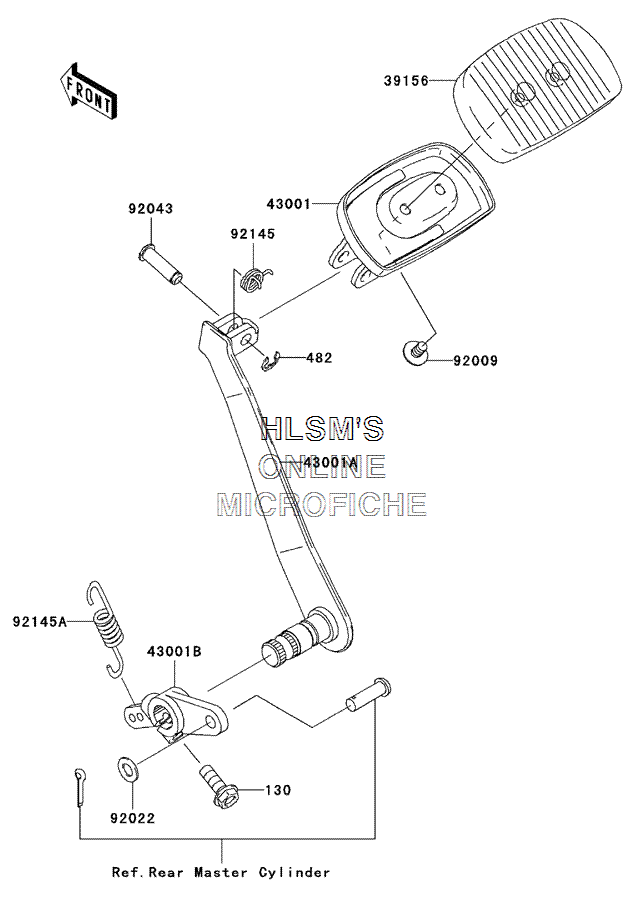

BRAKE PEDAL W/ TORQUE LINK для Kawasaki Vulcan 1600 Classic - 2005 года выпуска
-
№АртикулНазвание
-
130130J0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
482482L7000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E
-
3915639156-0045 PAD, BRAKE PEDALPAD, BRAKE PEDAL
-
4300143001-0023 LEVER-BRAKELEVER-BRAKE
-
43001A43001-0035 LEVER-BRAKE, PEDALLEVER-BRAKE, PEDAL
-
43001B43001-1431 LEVER-BRAKELEVER-BRAKE
-
9200992009-1818 SCREW, 6X10SCREW, 6X10
-
9202292022-1582 WASHER, 8.5X16X1.2WASHER, 8.5X16X1.2
-
9204392043-0047 PIN, 8X24.5PIN, 8X24.5
-
9214592145-0168 SPRINGSPRING
-
92145A92145-0191 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
