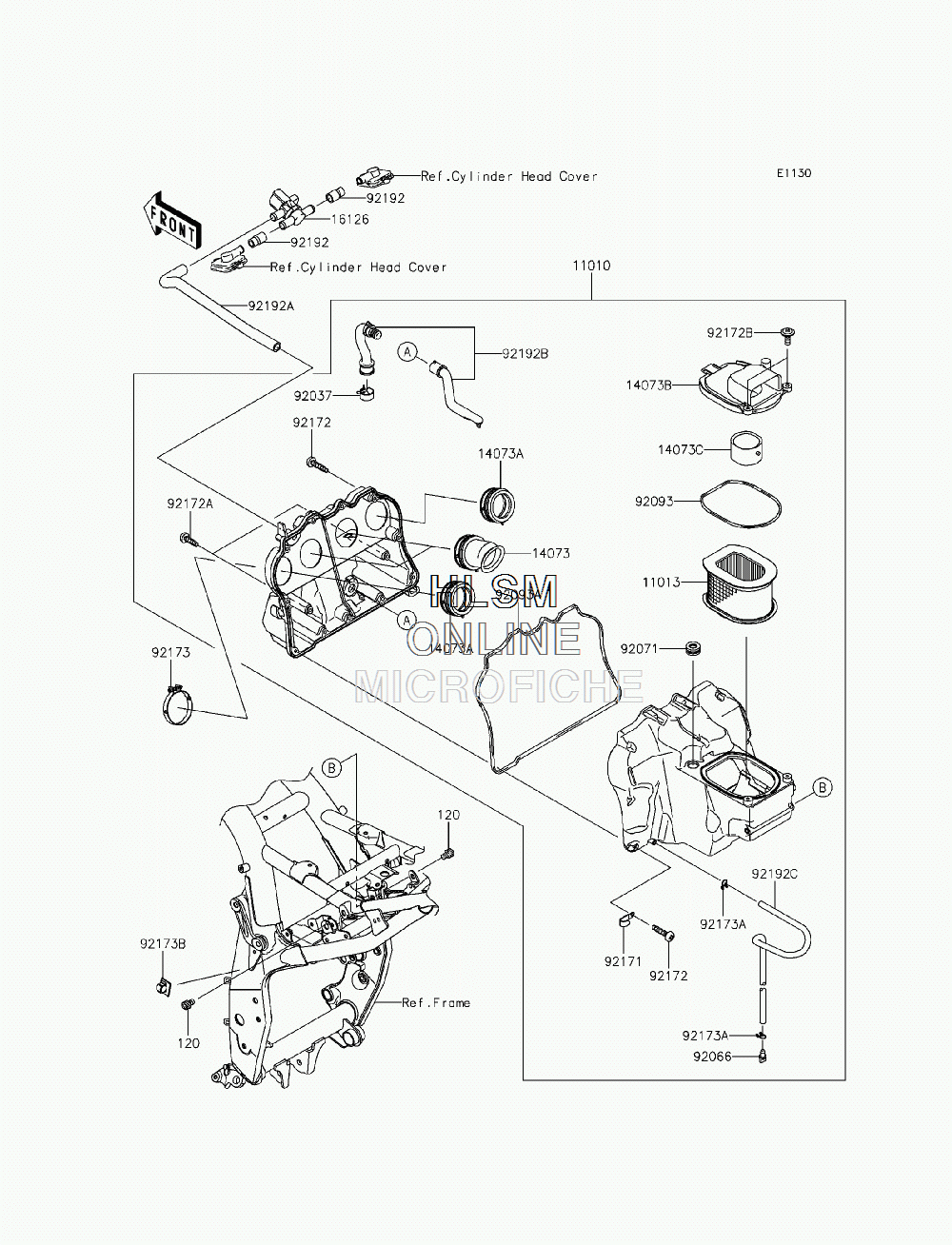

AIR CLEANER для Kawasaki Z800 ABS (ZR800BGF) - 2016 года выпуска
-
№АртикулНазвание
-
120120CA0608 BOLT-SOCKET,6X8BOLT-SOCKET,6X8
-
1101011010-0775 FILTER-ASSY-AIRFILTER-ASSY-AIR
-
1101311013-0044 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1407314073-0738 DUCT,FUNNEL #2 & #3DUCT,FUNNEL #2 & #3
-
14073A14073-0746 DUCT,FUNNEL #1 & #4DUCT,FUNNEL #1 & #4
-
14073B14073-0748 DUCT,INTAKE,TOPDUCT,INTAKE,TOP
-
14073C14073-0749 DUCT,INTAKE,UNDERDUCT,INTAKE,UNDER
-
1612616126-1437 VALVE,AIR SWITCHINGVALVE,AIR SWITCHING
-
9203792037-1460 CLAMP,HOSE CLIPCLAMP,HOSE CLIP
-
9206692066-1211 PLUG,DRAINPLUG,DRAIN
-
9207192071-0714 GROMMETGROMMET
-
9209392093-0591 SEALSEAL
-
92093A92093-0592 SEALSEAL
-
9217192171-1539 CLAMPCLAMP
-
9217292172-0803 SCREW,TAPPING,5X25SCREW,TAPPING,5X25
-
92172A92172-0804 SCREW,TAPPING,5X20SCREW,TAPPING,5X20
-
92172B92172-0805 SCREW,6X16SCREW,6X16
-
9217392173-0927 CLAMP,58MMCLAMP,58MM
-
92173A92173-1044 CLAMP,10MMCLAMP,10MM
-
92173B92173-1055 CLAMP,DRAINCLAMP,DRAIN
-
9219292192-0033 TUBE,HEAD-ASVTUBE,HEAD-ASV
-
92192A92192-1106 TUBE,ASV-A/CTUBE,ASV-A/C
-
92192B92192-1158 TUBE,BREATHERTUBE,BREATHER
-
92192C92192-1313 TUBE,DRAINTUBE,DRAIN
