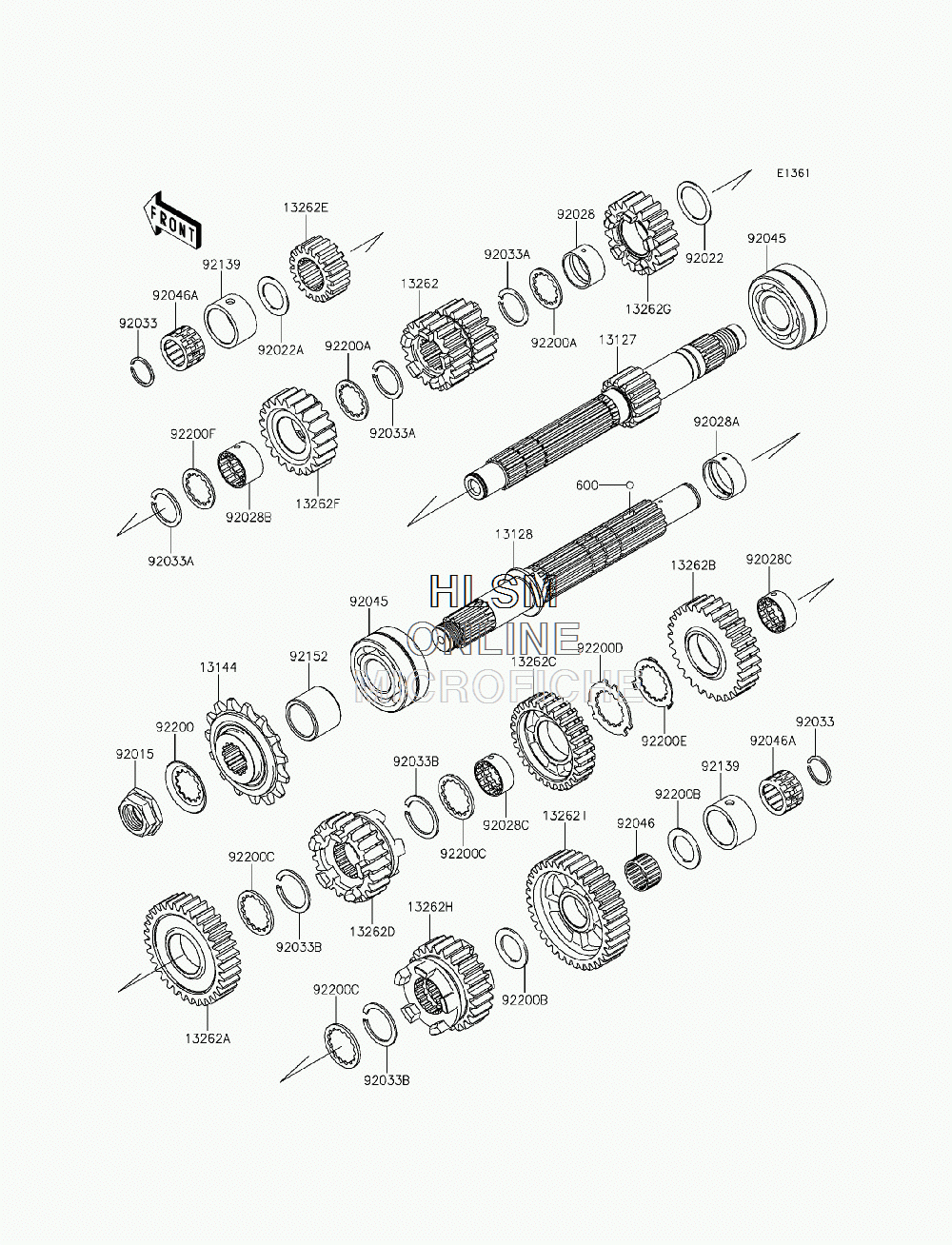

TRANSMISSION для Kawasaki Z800 ABS (ZR800BGF) - 2016 года выпуска
-
№АртикулНазвание
-
600600A0500 BALL-STEEL,5/32BALL-STEEL,5/32
-
1312713127-0651 SHAFT-TRANSMISSION INPUT,14TSHAFT-TRANSMISSION INPUT,14T
-
1312813128-0005 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1314413144-0558 SPROCKET-OUTPUT,15TSPROCKET-OUTPUT,15T
-
1326213262-0065 GEAR,INPUT 3RD & 4TH,18T & 21TGEAR,INPUT 3RD & 4TH,18T & 21T
-
13262A13262-0069 GEAR,OUTPUT 2ND,33TGEAR,OUTPUT 2ND,33T
-
13262B13262-0070 GEAR,OUTPUT 3RD,28TGEAR,OUTPUT 3RD,28T
-
13262C13262-0162 GEAR,OUTPUT 4TH,28TGEAR,OUTPUT 4TH,28T
-
13262D13262-0551 GEAR,OUTPUT TOP,23TGEAR,OUTPUT TOP,23T
-
13262E13262-0733 GEAR,INPUT 2ND,17TGEAR,INPUT 2ND,17T
-
13262F13262-0734 GEAR,INPUT TOP,21TGEAR,INPUT TOP,21T
-
13262G13262-0938 GEAR,INPUT 5TH,20TGEAR,INPUT 5TH,20T
-
13262H13262-0939 GEAR,OUTPUT 5TH,24TGEAR,OUTPUT 5TH,24T
-
13262I13262-0952 GEAR,OUTPUT LOW,36TGEAR,OUTPUT LOW,36T
-
9201592015-1963 NUT,20MMNUT,20MM
-
9202292022-1109 WASHER,25.3X33X1WASHER,25.3X33X1
-
92022A92022-112 WASHER,20.5X30X1,STEELWASHER,20.5X30X1,STEEL
-
9202892028-1735 BUSHING,INPUT 5TH GEARBUSHING,INPUT 5TH GEAR
-
92028A92028-1739 BUSHING,OUTPUT,2NDBUSHING,OUTPUT,2ND
-
92028B92028-1915 BUSHING,INPUT TOP GEARBUSHING,INPUT TOP GEAR
-
92028C92028-1968 BUSHING,OUTPUT,3RD & 4THBUSHING,OUTPUT,3RD & 4TH
-
9203392033-015 RING-SNAP,20MMRING-SNAP,20MM
-
92033A92033-026 RING-SNAP,24MMRING-SNAP,24MM
-
92033B92033-1249 RING-SNAP,T=1.5RING-SNAP,T=1.5
-
9204592045-0003 BEARING-BALL,DAC2557NSSHBEARING-BALL,DAC2557NSSH
-
9204692046-1219 BEARING-NEEDLE,K20X24X13BEARING-NEEDLE,K20X24X13
-
92046A92046-1303 BEARING-NEEDLE,PK20X27X17X3BEARING-NEEDLE,PK20X27X17X3
-
9213992139-1090 BUSHING,27X34X18.6BUSHING,27X34X18.6
-
9215292152-1617 COLLAR,25X32X24.6COLLAR,25X32X24.6
-
9220092200-0863 WASHERWASHER
-
92200A92200-1239 WASHER,25.2X31.0X1.5WASHER,25.2X31.0X1.5
-
92200B92200-1375 WASHER,20.5X31X1.5WASHER,20.5X31X1.5
-
92200C92200-1457 WASHER,T=2.0WASHER,T=2.0
-
92200D92200-1522 WASHER,25.8X40.5X1.5WASHER,25.8X40.5X1.5
-
92200E92200-1523 WASHER,25.2X37.0X1.0WASHER,25.2X37.0X1.0
-
92200F92200-1524 WASHER,INPUTWASHER,INPUT
