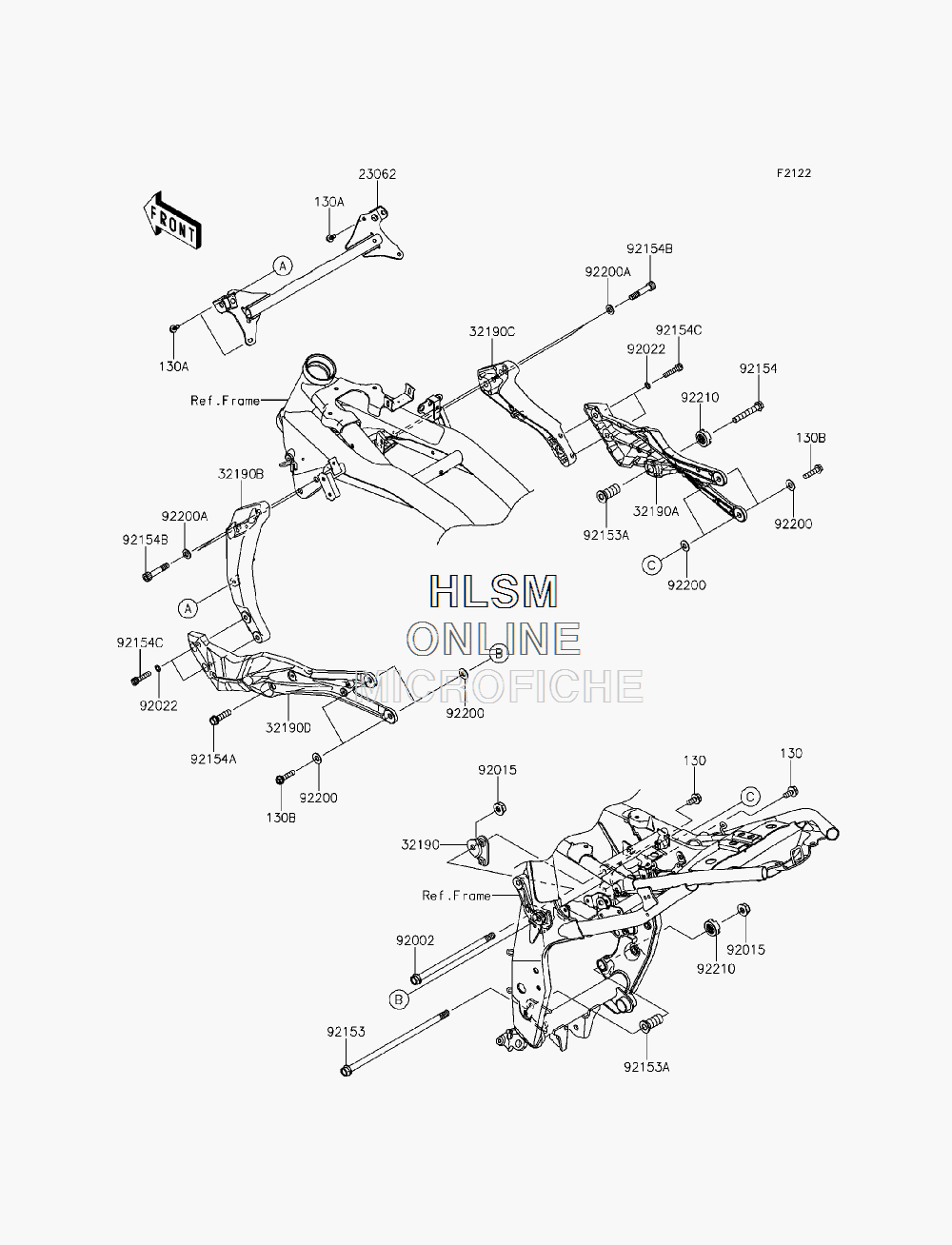

ENGINE MOUNT для Kawasaki Z800 ABS (ZR800BGF) - 2016 года выпуска
-
№АртикулНазвание
-
130130BB0816 BOLT-FLANGED,8X16BOLT-FLANGED,8X16
-
130A130CB0618 BOLT-FLANGED,6X18BOLT-FLANGED,6X18
-
130B130CB0835 BOLT-FLANGED,8X35BOLT-FLANGED,8X35
-
2306223062-0776 BRACKET-COMP,ENGINEBRACKET-COMP,ENGINE
-
3219032190-0603 BRACKET-ENGINE, REAR, RIGHT HAND,UPPERBRACKET-ENGINE, REAR, RIGHT HAND,UPPER
-
32190A32190-0620-18R BRACKET-ENGINE, REAR, RIGHT HAND,(F.S.BLACK)BRACKET-ENGINE, REAR, RIGHT HAND,(F.S.BLACK)
-
32190B32190-0635-18R BRACKET-ENGINE, FRONT, LEFT HAND,(F.S.BLACK)BRACKET-ENGINE, FRONT, LEFT HAND,(F.S.BLACK)
-
32190C32190-0636-18R BRACKET-ENGINE, FRONT, RIGHT HAND,(F.S.BLACK)BRACKET-ENGINE, FRONT, RIGHT HAND,(F.S.BLACK)
-
32190D32190-0683-18R BRACKET-ENGINE, REAR, LEFT HAND,(F.S.BLACK)BRACKET-ENGINE, REAR, LEFT HAND,(F.S.BLACK)
-
9200292002-1337 BOLT,10X183BOLT,10X183
-
9201592015-1180 NUT,FLANGED,10MMNUT,FLANGED,10MM
-
9202292022-1028 WASHER,8.5X13X1WASHER,8.5X13X1
-
9215392153-0559 BOLT,FLANGED,10X240BOLT,FLANGED,10X240
-
92153A92153-1098 BOLT,ENGINE MOUNT,18MMBOLT,ENGINE MOUNT,18MM
-
9215492154-0312 BOLT,FLANGED,10X65BOLT,FLANGED,10X65
-
92154A92154-0313 BOLT,FLANGED,10X40BOLT,FLANGED,10X40
-
92154B92154-0729 BOLT,SOCKET,10X50BOLT,SOCKET,10X50
-
92154C92154-1708 BOLT,SOCKET,8X35BOLT,SOCKET,8X35
-
9220092200-0832 WASHER,10X22X3WASHER,10X22X3
-
92200A92200-1042 WASHER,10.5X19X2.3WASHER,10.5X19X2.3
-
9221092210-1203 NUT,18MMNUT,18MM
