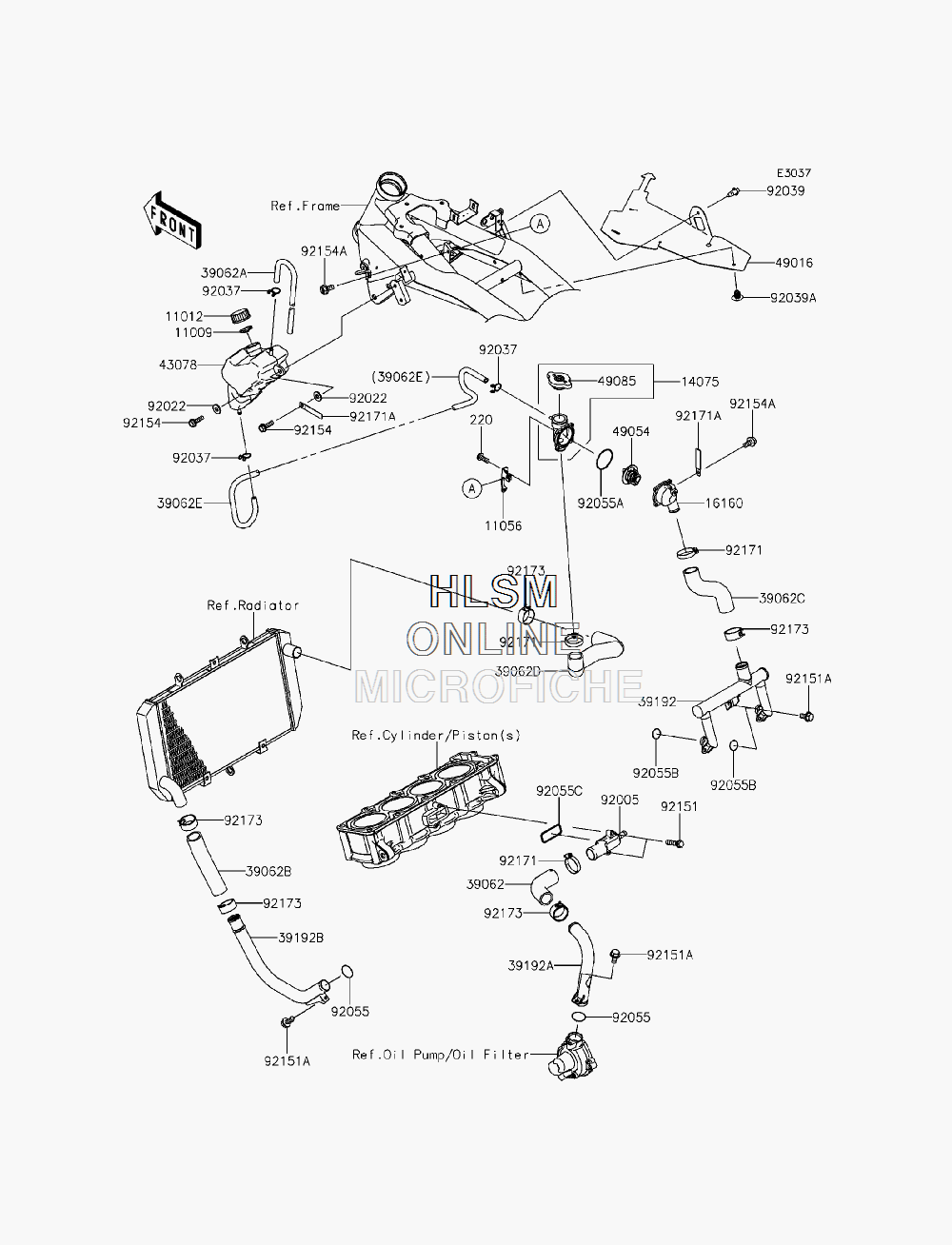

WATER PIPE для Kawasaki Z800 ABS (ZR800BGF) - 2016 года выпуска
-
№АртикулНазвание
-
220220AA0514 SCREW-PAN-CROS,5X14SCREW-PAN-CROS,5X14
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
1101211012-1084 CAPCAP
-
1105611056-1800 BRACKET,THERMOSTATBRACKET,THERMOSTAT
-
1407514075-0001 CAP-ASSYCAP-ASSY
-
1616016160-0774 BODY,LWRBODY,LWR
-
3906239062-0605 HOSE-COOLING,PUMP-CYLINDERHOSE-COOLING,PUMP-CYLINDER
-
39062A39062-0632 HOSE-COOLING,OVER FLOWHOSE-COOLING,OVER FLOW
-
39062B39062-0673 HOSE-COOLING,RAD.-PIPEHOSE-COOLING,RAD.-PIPE
-
39062C39062-0674 HOSE-COOLING,HEAD-THERMOHOSE-COOLING,HEAD-THERMO
-
39062D39062-0675 HOSE-COOLING,THERMO-RAD.HOSE-COOLING,THERMO-RAD.
-
39062E39062-1610 HOSE-COOLING,DRAINHOSE-COOLING,DRAIN
-
3919239192-0073 PIPE-WATERPIPE-WATER
-
39192A39192-0566 PIPE-WATERPIPE-WATER
-
39192B39192-0568 PIPE-WATERPIPE-WATER
-
4307843078-0559 RESERVOIRRESERVOIR
-
4901649016-0600 COVER-SEALCOVER-SEAL
-
4905449054-0004 THERMOSTATTHERMOSTAT
-
4908549085-1066 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
9200592005-0811 FITTINGFITTING
-
9202292022-1565 WASHER,6.5X16X2WASHER,6.5X16X2
-
9203792037-147 CLAMP,TUBECLAMP,TUBE
-
9203992039-0709 RIVETRIVET
-
92039A92039-0722 RIVETRIVET
-
9205592055-0114 RING-O,20.8X2.4RING-O,20.8X2.4
-
92055A92055-0831 RING-O,53.5X2.6RING-O,53.5X2.6
-
92055B92055-1350 RING-O,18.54X2.6RING-O,18.54X2.6
-
92055C92055-1402 RING-ORING-O
-
9215192151-1930 BOLT,FLANGED-SMALL,6X25BOLT,FLANGED-SMALL,6X25
-
92151A92151-1997 BOLT,6X12BOLT,6X12
-
9215492154-0776 BOLT,FLANGED,6X20BOLT,FLANGED,6X20
-
92154A92154-1050 BOLT,FLANGED,6X12BOLT,FLANGED,6X12
-
9217192171-0179 CLAMPCLAMP
-
92171A92171-0652 CLAMP,L=60CLAMP,L=60
-
9217392173-0072 CLAMPCLAMP
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE - MASTER CYLINDER - REAR
- BRAKE - REAR
- BRAKE LINES
- BRAKE PEDAL W/ TORQUE LINK
- CABLES
- CAMSHAFT(S) W/ TENSIONER
- CHASSIS ELECTRICAL EQUIPMENT
- CLUTCH
- COLOR INFO
- COWLING
- COWLING - LOWERS
- CRANKCASE
- CRANKCASE BOLT PATTERN
- CRANKSHAFT
- CYLINDER HEAD
- CYLINDER HEAD COVER
- CYLINDER/PISTON(S)
- DECALS (BLUE) (CANADA ONLY)
- DECALS (EBONY)
- DECALS (RED)
- ENGINE COVER
- ENGINE GUARD
- ENGINE MOUNT
- FENDER(S)
- FOOTRESTS
- FRAME
- FRAME FITTINGS
- FRONT FORK
- FUEL INJECTION
- FUEL PUMP
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- HEADLIGHT(S)
- IGNITION SWITCH W/ LOCKS AND REFLECTORS
- IGNITION SYSTEM
- LABELS
- MANUALS
- METER(S)
- MUFFLER(S)
- OIL PAN
- OIL PUMP/OIL FILTER
- OWNERS TOOLS
- RADIATOR
- SEAT
- SEAT COVER - SINGLE
- SIDE COVERS W/ CHAIN COVER
- STAND(S)
- STARTER MOTOR
- SUSPENSION - REAR W/ SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TAILLIGHT(S)
- THROTTLE
- TIRES
- TRANSMISSION
- TURN SIGNALS
- VALVE(S)
- • WATER PIPE
- WHEEL - FRONT
- WHEEL - REAR W/ CHAIN
