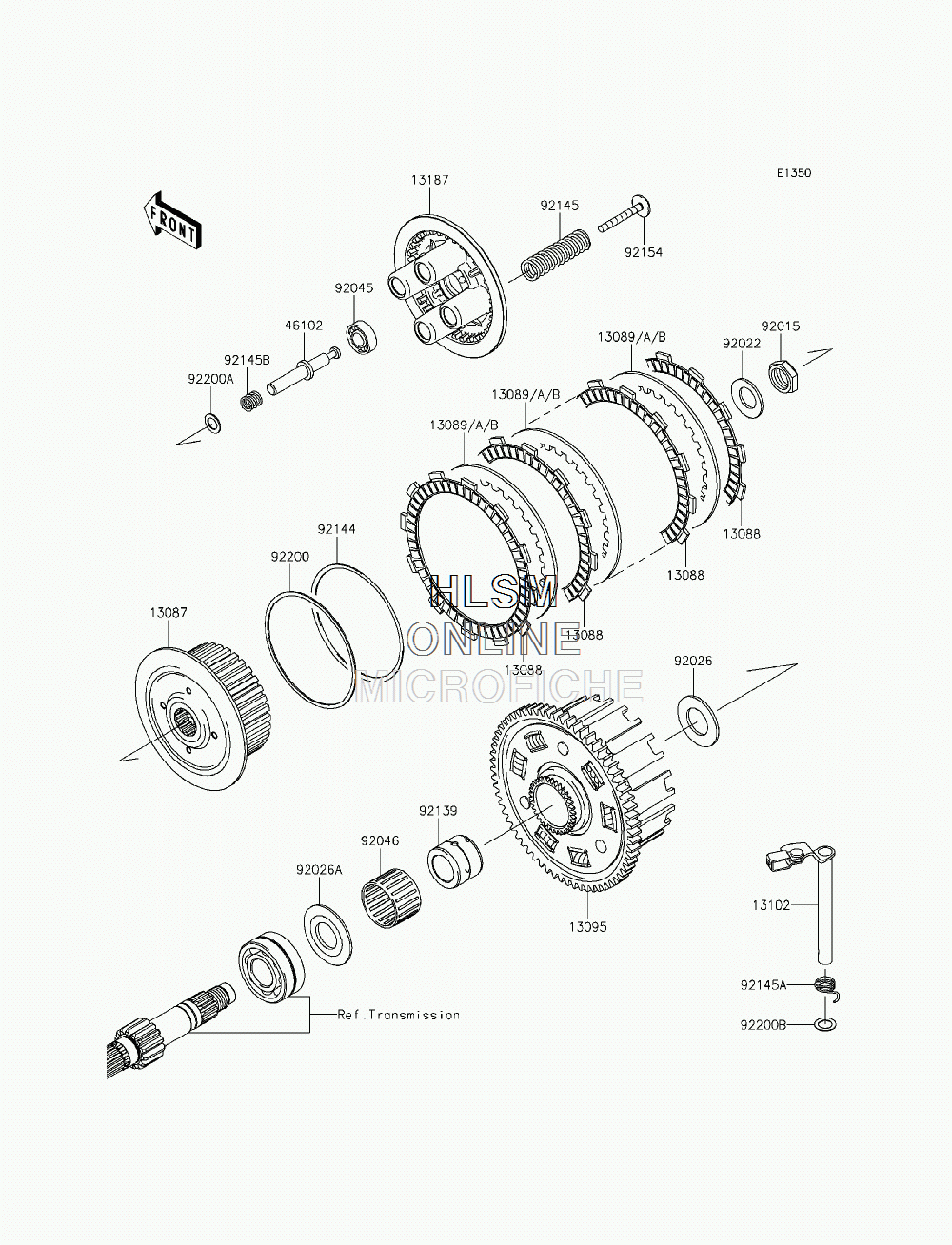

CLUTCH для Kawasaki Z800 ABS (ZR800BGF) - 2016 года выпуска
-
№АртикулНазвание
-
1308713087-0006 HUB-CLUTCHHUB-CLUTCH
-
1308813088-1124 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-013 PLATE-CLUTCH,T=1.6PLATE-CLUTCH,T=1.6
-
13089A13089-1073 PLATE-CLUTCH,T=2.0PLATE-CLUTCH,T=2.0
-
13089B13089-1126 PLATE-CLUTCH,T=1.4PLATE-CLUTCH,T=1.4
-
1309513095-0070 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1310213102-0043 RELEASE-COMP-CLUTCHRELEASE-COMP-CLUTCH
-
1318713187-0003 PLATE-CLUTCH OPERATINGPLATE-CLUTCH OPERATING
-
4610246102-0567 RODROD
-
9201592015-1555 NUT,20MMNUT,20MM
-
9202292022-1868 WASHER,20.3X36X3.7WASHER,20.3X36X3.7
-
9202692026-022 SPACER,25.5X47X2.5SPACER,25.5X47X2.5
-
92026A92026-1497 SPACERSPACER
-
9204592045-0742 BEARING-BALL,6001C3BEARING-BALL,6001C3
-
9204692046-1263 BEARING-NEEDLE,K38X43X28.8XBEARING-NEEDLE,K38X43X28.8X
-
9213992139-0776 BUSHING,25X38X29.05BUSHING,25X38X29.05
-
9214492144-1854 SPRING, FRICTION PLATESPRING, FRICTION PLATE
-
9214592145-0675 SPRINGSPRING
-
92145A92145-0897 SPRING,CLUTCH RELEASESPRING,CLUTCH RELEASE
-
92145B92145-1159 SPRING,RODSPRING,ROD
-
9215492154-0352 BOLT,CLUTCH OPERATINGBOLT,CLUTCH OPERATING
-
9220092200-1260 WASHER, FRICTION PLATEWASHER, FRICTION PLATE
-
92200A92200-1423 WASHER,11.2X18X0.5WASHER,11.2X18X0.5
-
92200B92200-1487 WASHER,12X18.5X0.5WASHER,12X18.5X0.5
