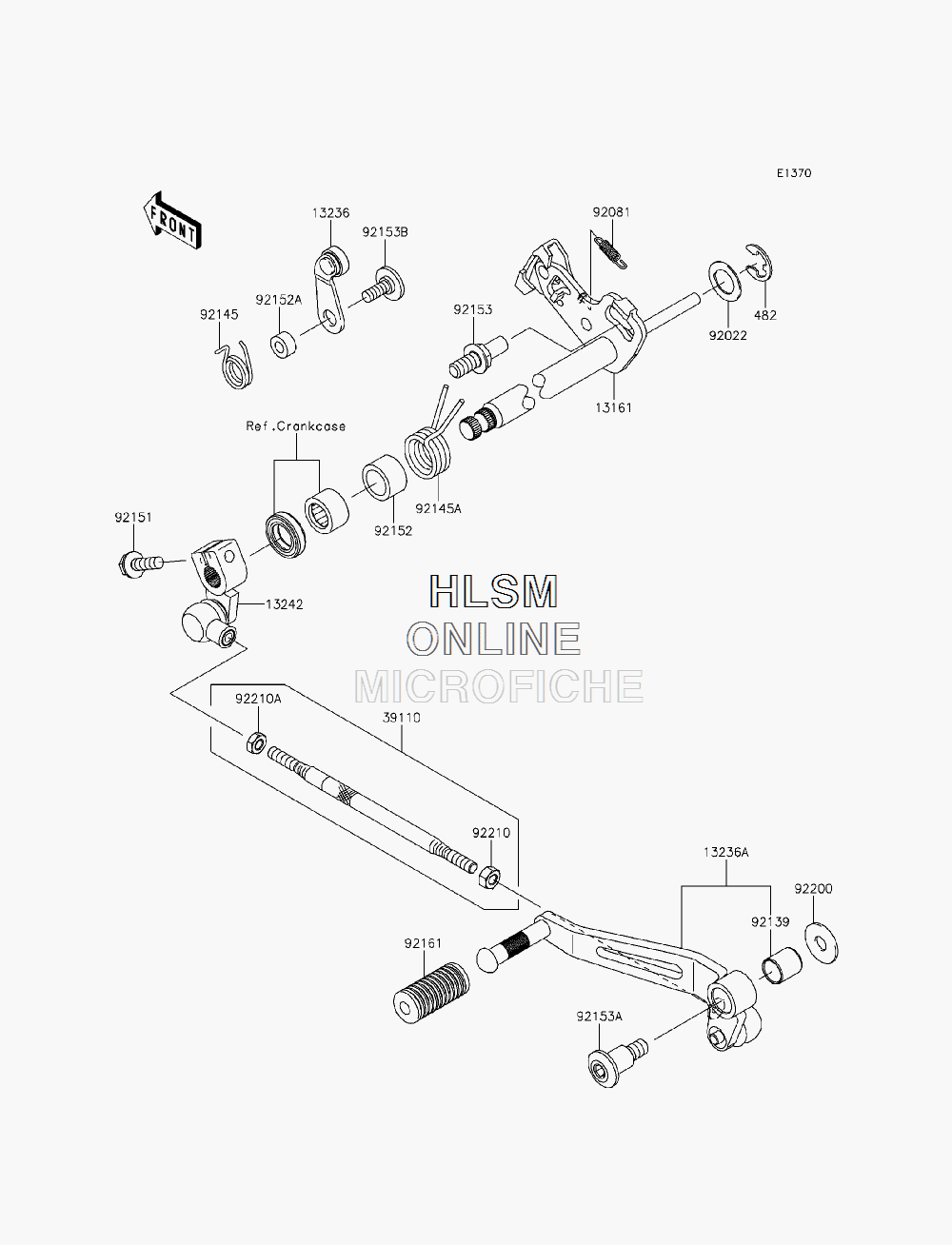

GEAR CHANGE MECHANISM для Kawasaki Z800 ABS (ZR800BGF) - 2016 года выпуска
-
№АртикулНазвание
-
482482J0200 CIRCLIP-TYPE-E,12MMCIRCLIP-TYPE-E,12MM
-
1316113161-0561 LEVER-COMP-CHANGE SHAFTLEVER-COMP-CHANGE SHAFT
-
1323613236-0106 LEVER-COMP,POSITIONLEVER-COMP,POSITION
-
13236A13236-0732 LEVER-COMP,CHANGE PEDALLEVER-COMP,CHANGE PEDAL
-
1324213242-0090 LEVER-ASSY-CHANGELEVER-ASSY-CHANGE
-
3911039110-0033 ROD-ASSY-TIEROD-ASSY-TIE
-
9202292022-1628 WASHER,CHANGE SHAFTWASHER,CHANGE SHAFT
-
9208192081-1708 SPRING,PAWL RETURNSPRING,PAWL RETURN
-
9213992139-0023 BUSHINGBUSHING
-
9214592145-0944 SPRING,GEAR POSITIONSPRING,GEAR POSITION
-
92145A92145-1122 SPRINGSPRING
-
9215192151-1226 BOLT,FLANGED,6X20BOLT,FLANGED,6X20
-
9215292152-1587 COLLAR,14.2X19.9X12COLLAR,14.2X19.9X12
-
92152A92152-1588 COLLAR,6.1X12X6COLLAR,6.1X12X6
-
9215392153-0421 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
92153A92153-0446 BOLT,SOCKET,8X32BOLT,SOCKET,8X32
-
92153B92153-1505 BOLT,6X20BOLT,6X20
-
9216192161-1466 DAMPER,CHANGE PEDALDAMPER,CHANGE PEDAL
-
9220092200-0174 WASHER,8.0X22.0X1.5WASHER,8.0X22.0X1.5
-
9221092210-1100 NUT,6MMNUT,6MM
-
92210A92210-1101 NUT, LEFT HANDED,6MMNUT, LEFT HANDED,6MM
