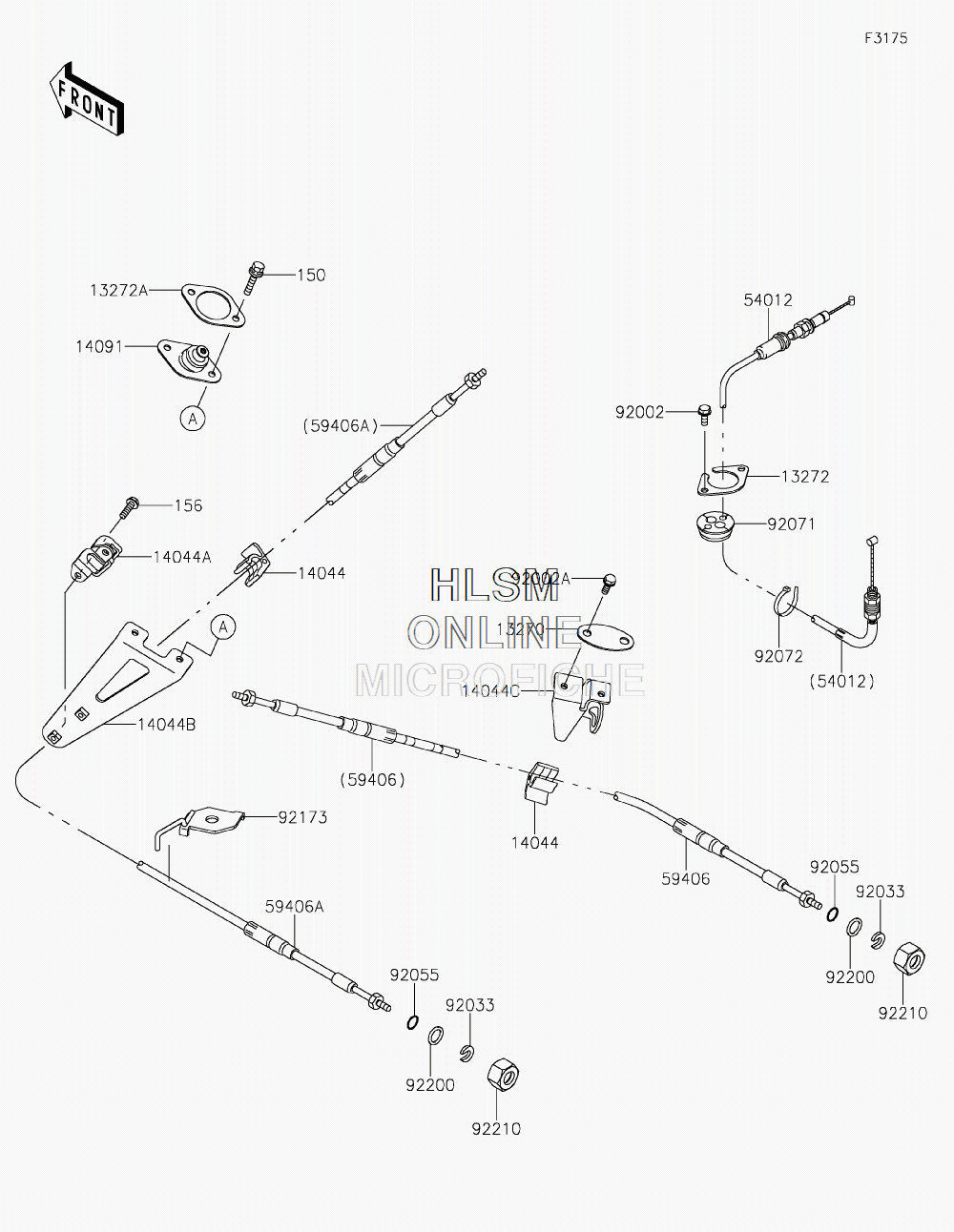

CABLES для Kawasaki ULTRA 310X (JT1500LKF) - 2019 года выпуска
-
№АртикулНазвание
-
1327013270-3860 PLATEPLATE
-
1327213272-3729 PLATEPLATE
-
13272A13272-3730 PLATEPLATE
-
1404414044-3765 HOLDER-CABLEHOLDER-CABLE
-
14044A14044-3766 HOLDER-CABLE, REVERSEHOLDER-CABLE, REVERSE
-
14044B14044-3767 HOLDER-CABLE, REVERSEHOLDER-CABLE, REVERSE
-
14044C14044-3769 HOLDER-CABLE, STEERINGHOLDER-CABLE, STEERING
-
1409114091-3821 COVERCOVER
-
150150R0625 BOLT-WS, 6X25BOLT-WS, 6X25
-
156156R0616 BOLT-WP, 6X16BOLT-WP, 6X16
-
5401254012-0592 CABLE-THROTTLECABLE-THROTTLE
-
5940659406-0003 CABLE-STRGCABLE-STRG
-
59406A59406-0004 CABLE-STRG, REVERSECABLE-STRG, REVERSE
-
9200292002-3728 BOLT, 6X16BOLT, 6X16
-
92002A92002-3755 BOLT, 6X20BOLT, 6X20
-
9203392033-3735 RING-SNAPRING-SNAP
-
9205592055-3778 RING-ORING-O
-
9207192071-3790 GROMMET, HARNESSGROMMET, HARNESS
-
9207292072-3872 BAND, L=368.3BAND, L=368.3
-
9217392173-3704 CLAMPCLAMP
-
9220092200-3793 WASHER, 14.5X20X1.5WASHER, 14.5X20X1.5
-
9221092210-3772 NUT, 22MMNUT, 22MM
