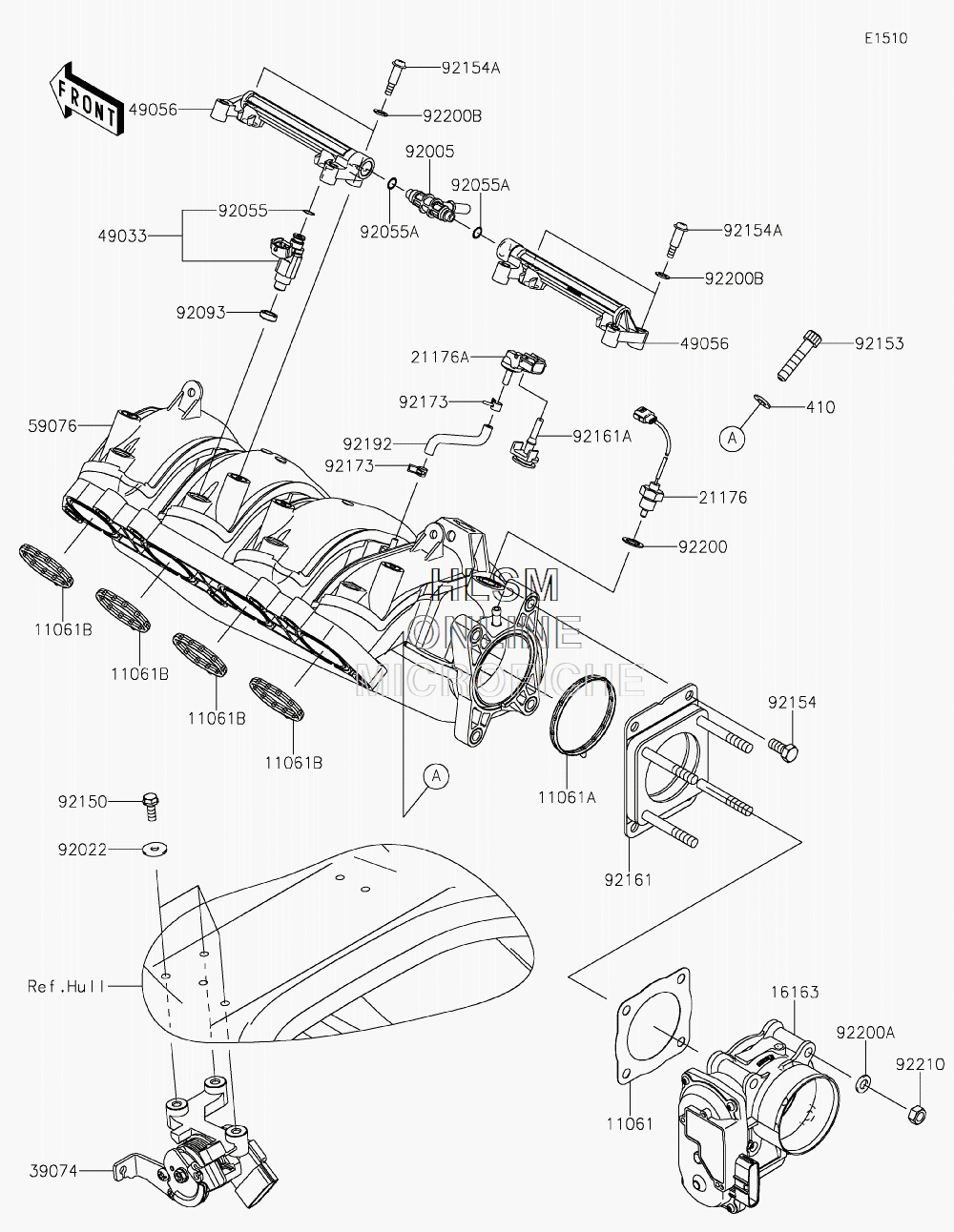

THROTTLE для Kawasaki ULTRA 310X (JT1500LKF) - 2019 года выпуска
-
№АртикулНазвание
-
1106111061-0824 GASKET, THROTTLEGASKET, THROTTLE
-
11061A11061-3766 GASKET, MANIFOLDGASKET, MANIFOLD
-
11061B11061-3767 GASKET, THROTTLEGASKET, THROTTLE
-
1616316163-3717 THROTTLE-ASSYTHROTTLE-ASSY
-
2117621176-3767 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
21176A21176-3777 SENSOR, BOOSTSENSOR, BOOST
-
3907439074-3730 LEVER-ASSY-THROTTLELEVER-ASSY-THROTTLE
-
410410S0800 WASHER-PLAIN-SMALL, 8MMWASHER-PLAIN-SMALL, 8MM
-
4903349033-3709 NOZZLE-INJECTIONNOZZLE-INJECTION
-
4905649056-3705 PIPE-INJECTION, FUELPIPE-INJECTION, FUEL
-
5907659076-0006 MANIFOLD-INTAKEMANIFOLD-INTAKE
-
9200592005-3766 FITTING, FUEL PIPEFITTING, FUEL PIPE
-
9202292022-3710 WASHER, 6.5X20X1.5WASHER, 6.5X20X1.5
-
9205592055-1622 RING-O, INJECTION NOZZLERING-O, INJECTION NOZZLE
-
92055A92055-3782 RING-ORING-O
-
9209392093-0127 SEALSEAL
-
9215092150-3729 BOLT, 6X18BOLT, 6X18
-
9215392153-0517 BOLT, SOCKET, 8X40BOLT, SOCKET, 8X40
-
9215492154-1389 BOLTBOLT
-
92154A92154-3713 BOLTBOLT
-
9216192161-1635 DAMPERDAMPER
-
92161A92161-3796 DAMPERDAMPER
-
9217392173-3702 CLAMPCLAMP
-
9219292192-1361 TUBETUBE
-
9220092200-0712 WASHER, 12X18X1WASHER, 12X18X1
-
92200A92200-3806 WASHERWASHER
-
92200B92200-3807 WASHERWASHER
-
9221092210-0897 NUTNUT
