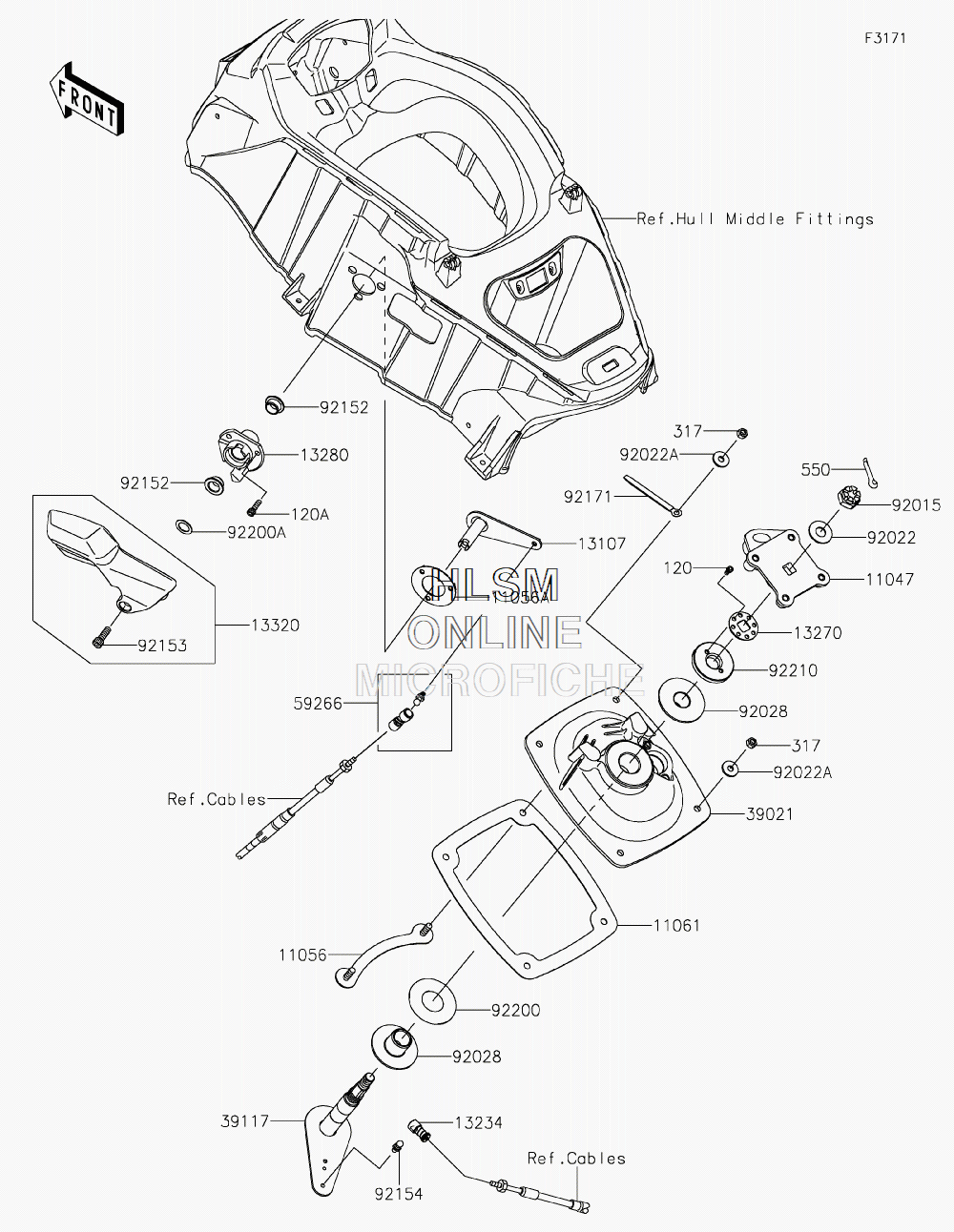

HANDLE POLE для Kawasaki ULTRA 310X (JT1500LKF) - 2019 года выпуска
-
№АртикулНазвание
-
1104711047-3759 BRACKET, HANDLE HOLDERBRACKET, HANDLE HOLDER
-
1105611056-3712 BRACKET, HANDLE POLE BRACKETBRACKET, HANDLE POLE BRACKET
-
11056A11056-3713 BRACKETBRACKET
-
1106111061-3739 GASKET, HANDLE POLE BRACKETGASKET, HANDLE POLE BRACKET
-
120120R0510 BOLT-SOCKET, 5X10BOLT-SOCKET, 5X10
-
120A120R0620 BOLT-SOCKET, 6X20BOLT-SOCKET, 6X20
-
1310713107-3799 SHAFTSHAFT
-
1323413234-3713 SHAFT-COMPSHAFT-COMP
-
1327013270-3808 PLATE, STEERING NUTPLATE, STEERING NUT
-
1328013280-0790 HOLDERHOLDER
-
1332013320-0027 LEVER-ASSY, REVERSELEVER-ASSY, REVERSE
-
317317R0800 NUT-HEX-SMALL, 8MMNUT-HEX-SMALL, 8MM
-
3902139021-3716 BRACKET-HANDLE POLEBRACKET-HANDLE POLE
-
3911739117-3715 SHAFT-STRGSHAFT-STRG
-
550550S3035 PIN-COTTER, 3X35PIN-COTTER, 3X35
-
5926659266-3710 JOINT-BALLJOINT-BALL
-
9201592015-3805 NUT, CASTLE, 14MMNUT, CASTLE, 14MM
-
9202292022-3738 WASHER, 15X34X2.0WASHER, 15X34X2.0
-
92022A92022-3744 WASHER, 8.4X23X2.5WASHER, 8.4X23X2.5
-
9202892028-3748 BUSHING, STEERINGBUSHING, STEERING
-
9215292152-3748 COLLARCOLLAR
-
9215392153-3739 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
9215492154-3710 BOLT, BALL, 6MMBOLT, BALL, 6MM
-
9217192171-3717 CLAMP, L=150CLAMP, L=150
-
9220092200-3718 WASHER, 32.5X70X2WASHER, 32.5X70X2
-
92200A92200-3800 WASHER, 16.5X25X1WASHER, 16.5X25X1
-
9221092210-3800 NUT, STEERING SHAFT, 22MMNUT, STEERING SHAFT, 22MM
