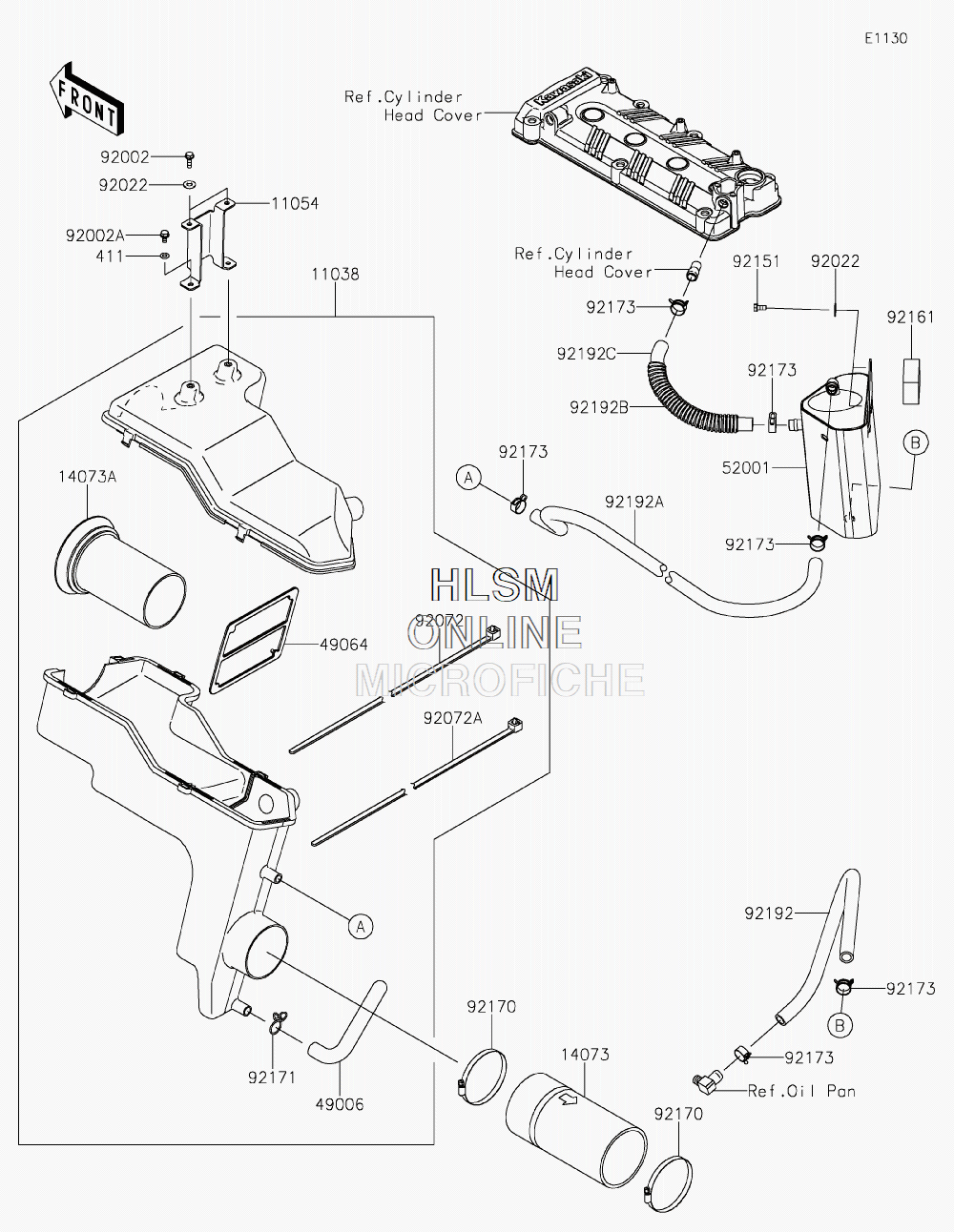

INTAKE SILENCER для Kawasaki ULTRA 310X (JT1500LKF) - 2019 года выпуска
-
№АртикулНазвание
-
1103811038-3710 CASE-ASSY-AIR FILTERCASE-ASSY-AIR FILTER
-
1105411054-3745 BRACKET, AIR BOXBRACKET, AIR BOX
-
1407314073-0782 DUCT, A/C-COMPRESSORDUCT, A/C-COMPRESSOR
-
14073A14073-3844 DUCT, INLETDUCT, INLET
-
411411S0600 WASHER-PLAIN, 6MMWASHER-PLAIN, 6MM
-
4900649006-3720 BOOTBOOT
-
4906449064-3704 FILTER-AIRFILTER-AIR
-
5200152001-0008 TANK-OIL, SEPARATORTANK-OIL, SEPARATOR
-
9200292002-3755 BOLT, 6X20BOLT, 6X20
-
92002A92002-3763 BOLT, 6X12BOLT, 6X12
-
9202292022-3710 WASHER, 6.5X20X1.5WASHER, 6.5X20X1.5
-
9207292072-0708 BAND, L=914BAND, L=914
-
92072A92072-0709 BAND, L=619BAND, L=619
-
9215192151-3788 BOLT, 6X14BOLT, 6X14
-
9216192161-1595 DAMPERDAMPER
-
9217092170-3760 CLAMPCLAMP
-
9217192171-3711 CLAMP, BOOTCLAMP, BOOT
-
9217392173-1039 CLAMPCLAMP
-
9219292192-1067 TUBE, OIL TANK-OIL PANTUBE, OIL TANK-OIL PAN
-
92192A92192-3769 TUBE, OIL TANK-A/CTUBE, OIL TANK-A/C
-
92192B92192-3832 TUBE, CORRUGATED, L=160TUBE, CORRUGATED, L=160
-
92192C92192-3854 TUBE, HEAD-OIL TANKTUBE, HEAD-OIL TANK
