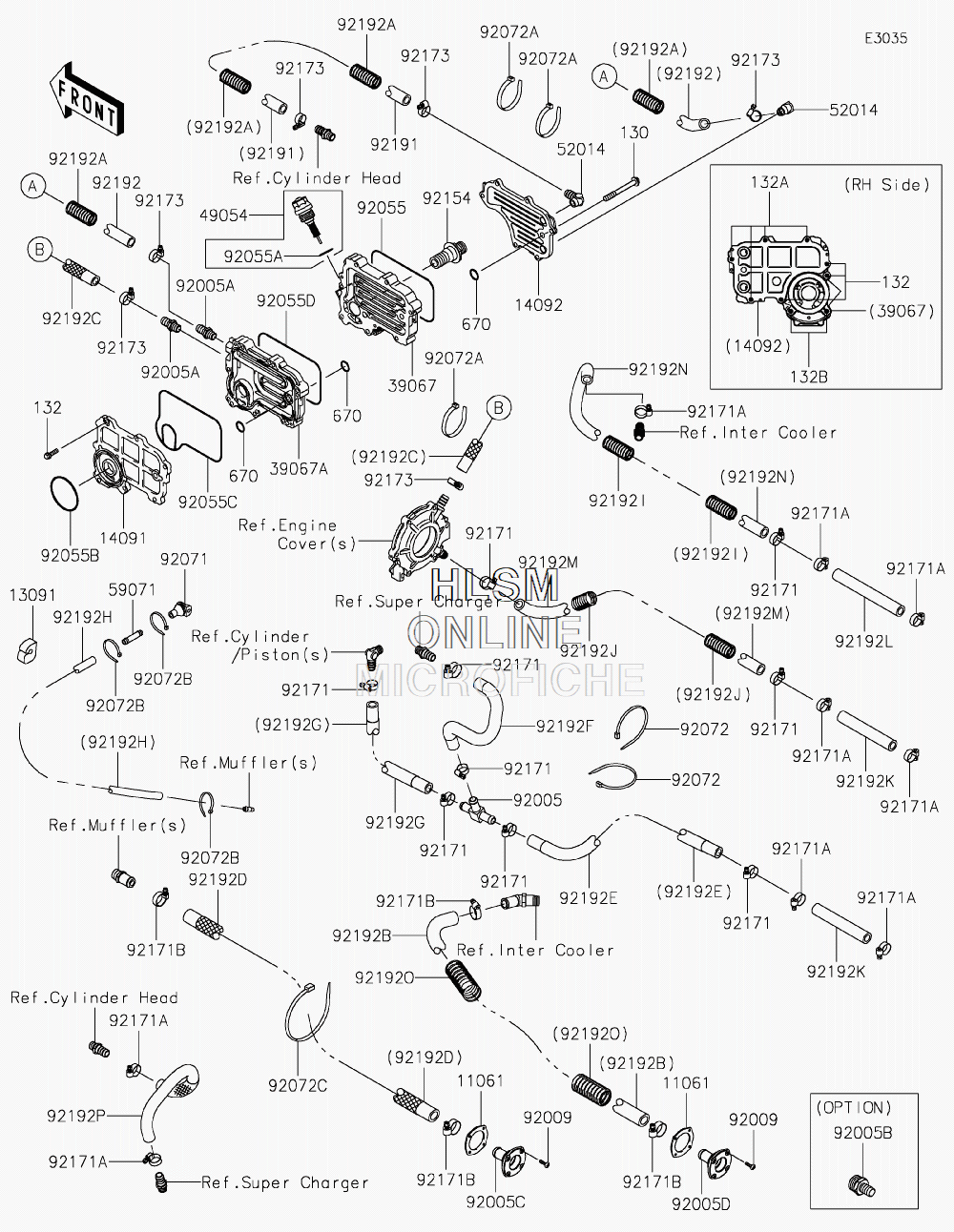

COOLING для Kawasaki ULTRA 310X (JT1500LKF) - 2019 года выпуска
-
№АртикулНазвание
-
1106111061-3769 GASKETGASKET
-
130130BD0870 BOLT-FLANGED, 8X70BOLT-FLANGED, 8X70
-
1309113091-3712 HOLDERHOLDER
-
132132BD0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
132A132BD0640 BOLT-FLANGED-SMALL, 6X40BOLT-FLANGED-SMALL, 6X40
-
132B132BD0645 BOLT-FLANGED-SMALL, 6X45BOLT-FLANGED-SMALL, 6X45
-
1409114091-3755 COVER, INSIDECOVER, INSIDE
-
1409214092-0765 COVER, OUTSIDECOVER, OUTSIDE
-
3906739067-0708 COOLER-OIL, OUTSIDECOOLER-OIL, OUTSIDE
-
39067A39067-3704 COOLER-OIL, INSIDECOOLER-OIL, INSIDE
-
4905449054-3701 THERMOSTATTHERMOSTAT
-
5201452014-3711 ELBOWELBOW
-
5907159071-3764 JOINTJOINT
-
670670D2014 O RING, 14MMO RING, 14MM
-
9200592005-0755 FITTINGFITTING
-
92005A92005-3714 FITTINGFITTING
-
92005B92005-3748 FITTING, FLUSH (OPTION)FITTING, FLUSH (OPTION)
-
92005C92005-3770 FITTING, (BLACK)FITTING, (BLACK)
-
92005D92005-3771 FITTING, (GRAY)FITTING, (GRAY)
-
9200992009-3849 SCREW, TAPPING, 4X16SCREW, TAPPING, 4X16
-
9205592055-0708 RING-ORING-O
-
92055A92055-0727 RING-ORING-O
-
92055B92055-3767 RING-O, 58X3RING-O, 58X3
-
92055C92055-3770 RING-ORING-O
-
92055D92055-3772 RING-ORING-O
-
9207192071-3815 GROMMETGROMMET
-
9207292072-0105 BAND, L=188.85BAND, L=188.85
-
92072A92072-0106 BAND, L=200BAND, L=200
-
92072B92072-3882 BAND, L=100.08BAND, L=100.08
-
92072C92072-3883 BAND, L=372.24BAND, L=372.24
-
9215492154-3719 BOLTBOLT
-
9217192171-3701 CLAMPCLAMP
-
92171A92171-3714 CLAMPCLAMP
-
92171B92171-3720 CLAMP, 26MMCLAMP, 26MM
-
9217392173-1482 CLAMPCLAMP
-
9219192191-3919 TUBE, WATER FILTER-HULLTUBE, WATER FILTER-HULL
-
9219292192-0971 TUBE, OIL COOLER-ELBOWTUBE, OIL COOLER-ELBOW
-
92192A92192-0986 TUBE, CORRUGATED, 19.5X23.8X460TUBE, CORRUGATED, 19.5X23.8X460
-
92192B92192-1192 TUBE, INTER COOLER-HULLTUBE, INTER COOLER-HULL
-
92192C92192-1202 TUBE, GENE.COVER-O/CTUBE, GENE.COVER-O/C
-
92192D92192-1215 TUBE, 16X23X950TUBE, 16X23X950
-
92192E92192-1297 TUBE, HULL-FITTINGTUBE, HULL-FITTING
-
92192F92192-1298 TUBE, FITTING-COMPRESSORTUBE, FITTING-COMPRESSOR
-
92192G92192-1299 TUBE, FITTING-CYLINDERTUBE, FITTING-CYLINDER
-
92192H92192-1509 TUBE, 7X12X1590/30TUBE, 7X12X1590/30
-
92192I92192-3714 TUBE, CORRUGATED, 19.5X23.8X380TUBE, CORRUGATED, 19.5X23.8X380
-
92192J92192-3783 TUBE, CORRUGATED, 19.5X23.8X500TUBE, CORRUGATED, 19.5X23.8X500
-
92192K92192-3796 TUBE, 12X19X120TUBE, 12X19X120
-
92192L92192-3797 TUBE, 12X19X150TUBE, 12X19X150
-
92192M92192-3798 TUBE, 12X19X55 & 620TUBE, 12X19X55 & 620
-
92192N92192-3800 TUBE, HULL-I/CTUBE, HULL-I/C
-
92192O92192-3862 TUBE, CORRUGATED, L=870TUBE, CORRUGATED, L=870
-
92192P92192-3866 TUBE, COMPRESSOR-HEADTUBE, COMPRESSOR-HEAD
