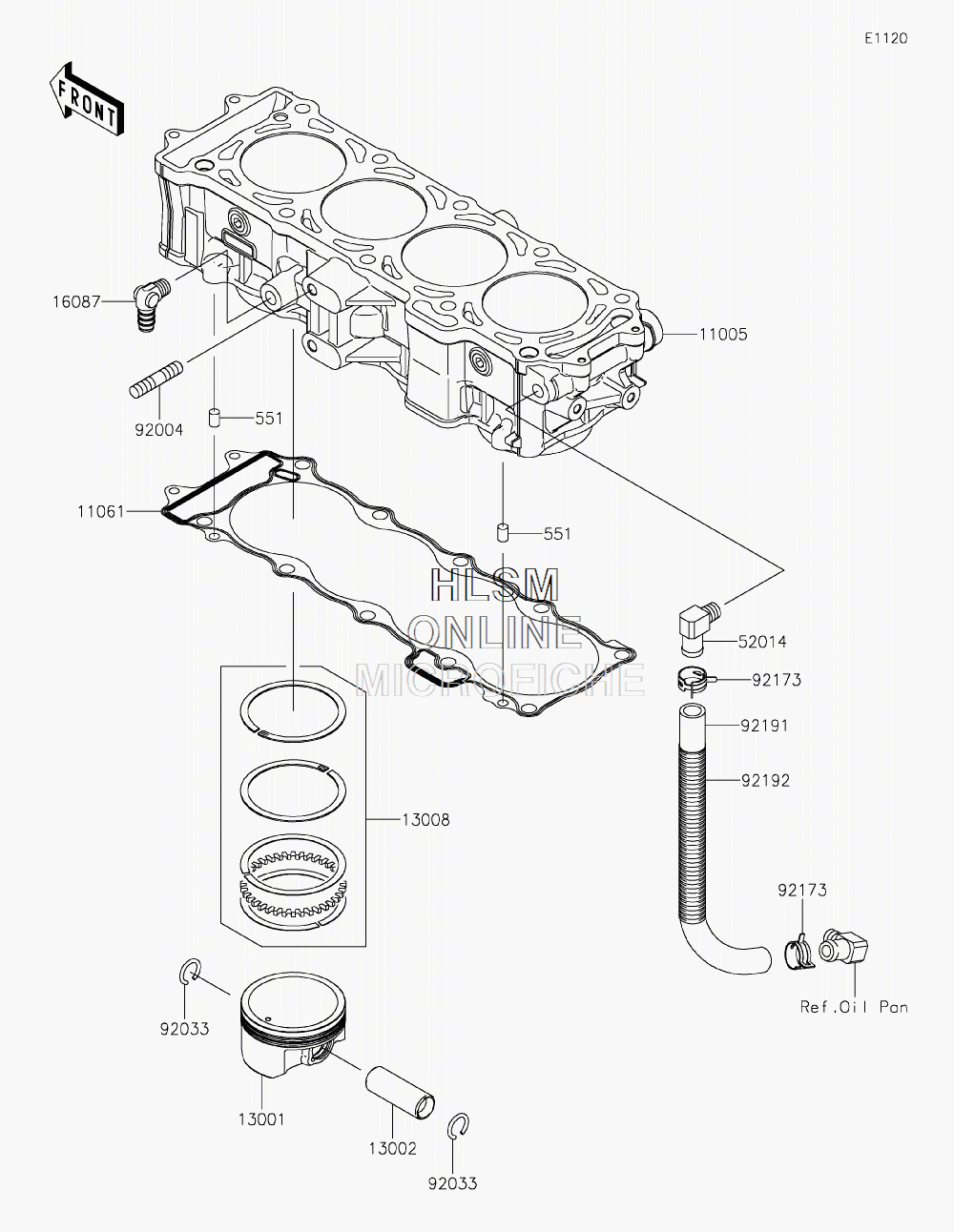

CYLINDER/PISTON(S) для Kawasaki ULTRA 310X (JT1500LKF) - 2019 года выпуска
-
№АртикулНазвание
-
1100511005-0630 CYLINDER-ENGINECYLINDER-ENGINE
-
1106111061-3770 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1300113001-0787 PISTON-ENGINEPISTON-ENGINE
-
1300213002-1131 PIN-PISTONPIN-PISTON
-
1300813008-0564 RING-SET-PISTONRING-SET-PISTON
-
1608716087-3714 VALVE-CHECKVALVE-CHECK
-
5201452014-3717 ELBOWELBOW
-
551551R0812 PIN-DOWELPIN-DOWEL
-
9200492004-3759 STUD, 10X32STUD, 10X32
-
9203392033-1188 RING-SNAPRING-SNAP
-
9217392173-1039 CLAMPCLAMP
-
9219192191-3983 TUBE, BREATHERTUBE, BREATHER
-
9219292192-1083 TUBE, CORRUGATED, L=265TUBE, CORRUGATED, L=265
