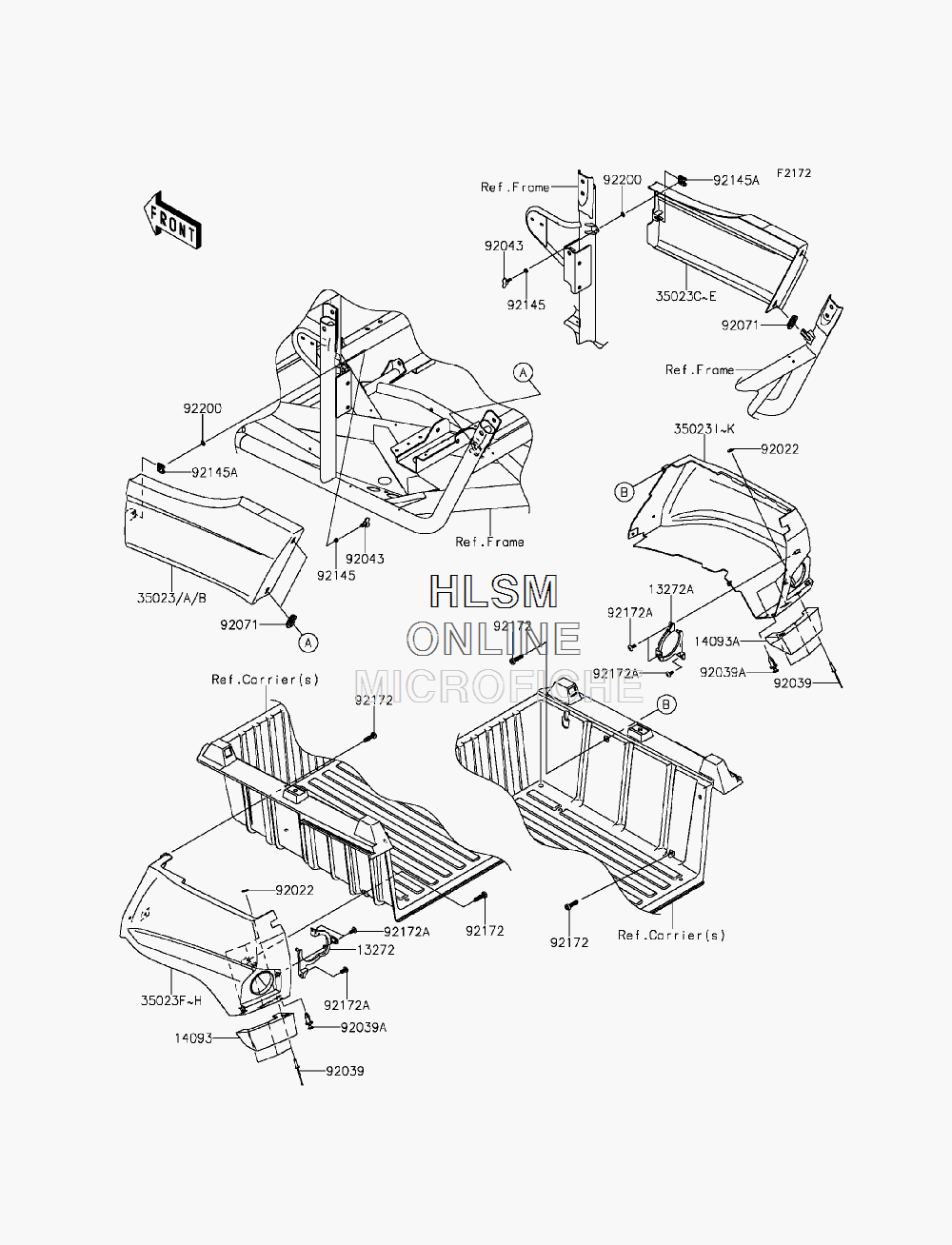

FENDER - REAR для Kawasaki TERYX LE (KRF800CFF) - 2015 года выпуска
-
№АртикулНазвание
-
1327213272-1481 PLATE,TAILLIGHT MOUNT, LEFT HANDPLATE,TAILLIGHT MOUNT, LEFT HAND
-
13272A13272-1482 PLATE,TAILLIGHT MOUNT, RIGHT HANDPLATE,TAILLIGHT MOUNT, RIGHT HAND
-
1409314093-0001 COVER,MUD GUARD, LEFT HANDCOVER,MUD GUARD, LEFT HAND
-
14093A14093-0002 COVER,MUD GUARD, RIGHT HANDCOVER,MUD GUARD, RIGHT HAND
-
3502335023-0370-31Y FENDER-REAR, FRONT, LEFT HAND,(M.S.WHITE) (FOR 31Y)FENDER-REAR, FRONT, LEFT HAND,(M.S.WHITE) (FOR 31Y)
-
35023A35023-0370-367 FENDER-REAR, FRONT, LEFT HAND,(C.L.GREEN) (FOR 367)FENDER-REAR, FRONT, LEFT HAND,(C.L.GREEN) (FOR 367)
-
35023B35023-0370-42L FENDER-REAR, FRONT, LEFT HAND,(C.B.ORANGE) (FOR 42L)FENDER-REAR, FRONT, LEFT HAND,(C.B.ORANGE) (FOR 42L)
-
35023C35023-0371-31Y FENDER-REAR, FRONT, RIGHT HAND,(M.S.WHITE) (FOR 31Y)FENDER-REAR, FRONT, RIGHT HAND,(M.S.WHITE) (FOR 31Y)
-
35023D35023-0371-367 FENDER-REAR, FRONT, RIGHT HAND,(C.L.GREEN) (FOR 367)FENDER-REAR, FRONT, RIGHT HAND,(C.L.GREEN) (FOR 367)
-
35023E35023-0371-42L FENDER-REAR, FRONT, RIGHT HAND,(C.B.ORANGE) (FOR 42L)FENDER-REAR, FRONT, RIGHT HAND,(C.B.ORANGE) (FOR 42L)
-
35023F35023-0372-31Y FENDER-REAR, REAR, LEFT HAND,(M.S.WHITE) (FOR 31Y)FENDER-REAR, REAR, LEFT HAND,(M.S.WHITE) (FOR 31Y)
-
35023G35023-0372-367 FENDER-REAR, REAR, LEFT HAND,(C.L.GREEN) (FOR 367)FENDER-REAR, REAR, LEFT HAND,(C.L.GREEN) (FOR 367)
-
35023H35023-0372-42L FENDER-REAR, REAR, LEFT HAND,(C.B.ORANGE) (FOR 42L)FENDER-REAR, REAR, LEFT HAND,(C.B.ORANGE) (FOR 42L)
-
35023I35023-0373-31Y FENDER-REAR, REAR, RIGHT HAND,(M.S.WHITE) (FOR 31Y)FENDER-REAR, REAR, RIGHT HAND,(M.S.WHITE) (FOR 31Y)
-
35023J35023-0373-367 FENDER-REAR, REAR, RIGHT HAND,(C.L.GREEN) (FOR 367)FENDER-REAR, REAR, RIGHT HAND,(C.L.GREEN) (FOR 367)
-
35023K35023-0373-42L FENDER-REAR, REAR, RIGHT HAND,(C.B.ORANGE) (FOR 42L)FENDER-REAR, REAR, RIGHT HAND,(C.B.ORANGE) (FOR 42L)
-
9202292022-1380 WASHER,5.2X13X1WASHER,5.2X13X1
-
9203992039-0704 RIVET,4.9X19.8RIVET,4.9X19.8
-
92039A92039-1229 RIVETRIVET
-
9204392043-0779 PIN,WINGED,240PIN,WINGED,240
-
9207192071-1187 GROMMETGROMMET
-
9214592145-0905 SPRINGSPRING
-
92145A92145-0906 SPRING,CLIPSPRING,CLIP
-
9217292172-0886 SCREWSCREW
-
92172A92172-3714 SCREW,5X12SCREW,5X12
-
9220092200-0800 WASHERWASHER
