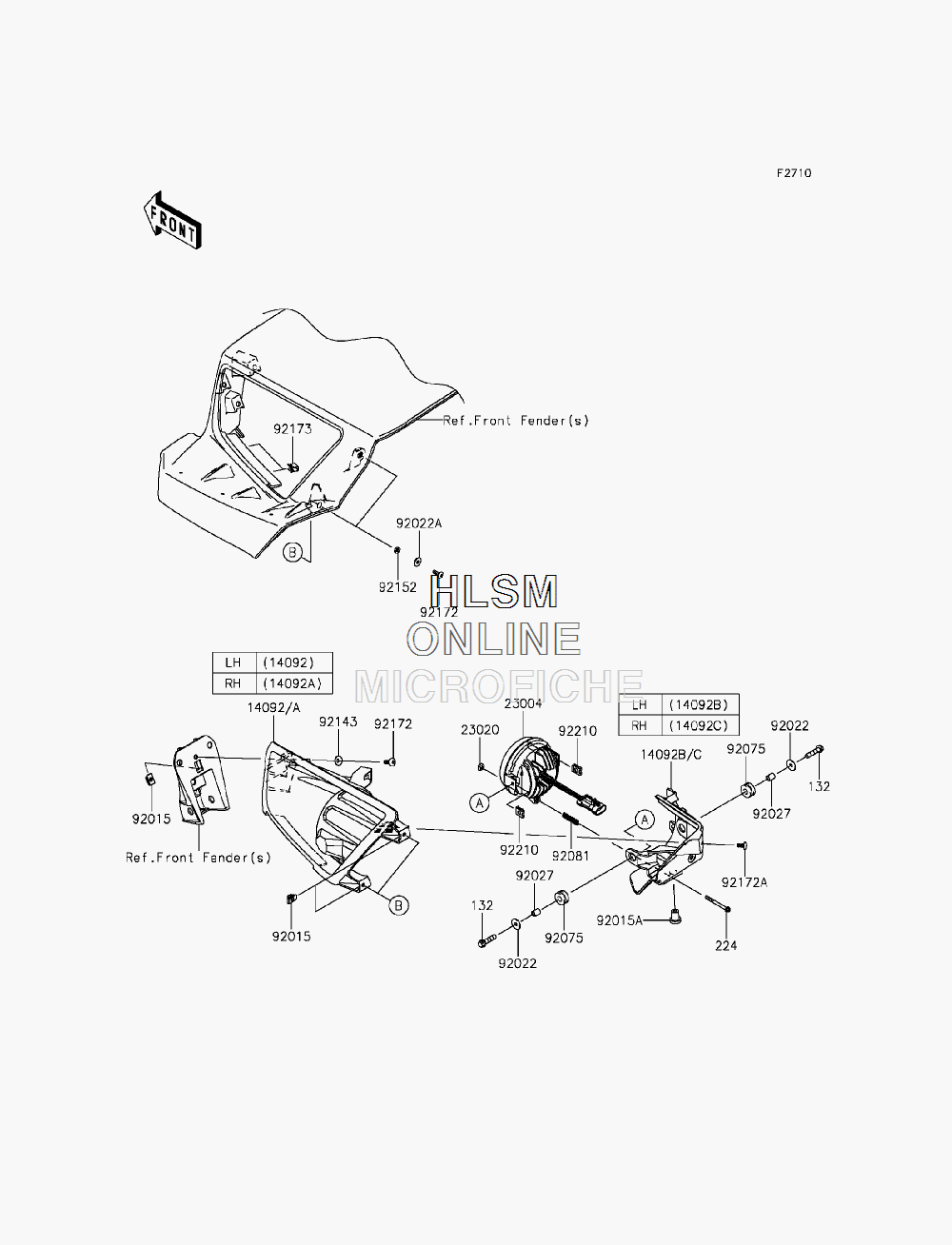

HEADLIGHT(S) для Kawasaki TERYX LE (KRF800CFF) - 2015 года выпуска
-
№АртикулНазвание
-
132132BA0625 BOLT-FLANGED-SMALL,6X25BOLT-FLANGED-SMALL,6X25
-
224224AA0445 SCREW-PAN-WP-CROS,4X45SCREW-PAN-WP-CROS,4X45
-
1409214092-0054 COVER,HEAD LAMP, FRONT, LEFT HANDCOVER,HEAD LAMP, FRONT, LEFT HAND
-
14092A14092-0055 COVER,HEAD LAMP, FRONT, RIGHT HANDCOVER,HEAD LAMP, FRONT, RIGHT HAND
-
14092B14092-0056 COVER,HEAD LAMP, REAR, LEFT HANDCOVER,HEAD LAMP, REAR, LEFT HAND
-
14092C14092-0057 COVER,HEAD LAMP, REAR, RIGHT HANDCOVER,HEAD LAMP, REAR, RIGHT HAND
-
2300423004-0341 LAMP-HEAD, LEDLAMP-HEAD, LED
-
2302023020-018 NUT,4MM,FOCUS ADJUSTNUT,4MM,FOCUS ADJUST
-
9201592015-1627 NUT,5MMNUT,5MM
-
92015A92015-1692 NUT,RUBBER,6MMNUT,RUBBER,6MM
-
9202292022-125 WASHER,6.5X20X1.6WASHER,6.5X20X1.6
-
92022A92022-263 WASHER,5.2X16X1.2WASHER,5.2X16X1.2
-
9202792027-162 COLLAR,6.8X10X12COLLAR,6.8X10X12
-
9207592075-1690 DAMPERDAMPER
-
9208192081-1896 SPRING,FOCUS ADJUSTSPRING,FOCUS ADJUST
-
9214392143-1087 COLLARCOLLAR
-
9215292152-1703 COLLAR,5.3X10.7X3COLLAR,5.3X10.7X3
-
9217292172-0322 SCREW,5X16SCREW,5X16
-
92172A92172-3714 SCREW,5X12SCREW,5X12
-
9217392173-0104 CLAMPCLAMP
-
9221092210-1125 NUTNUT
