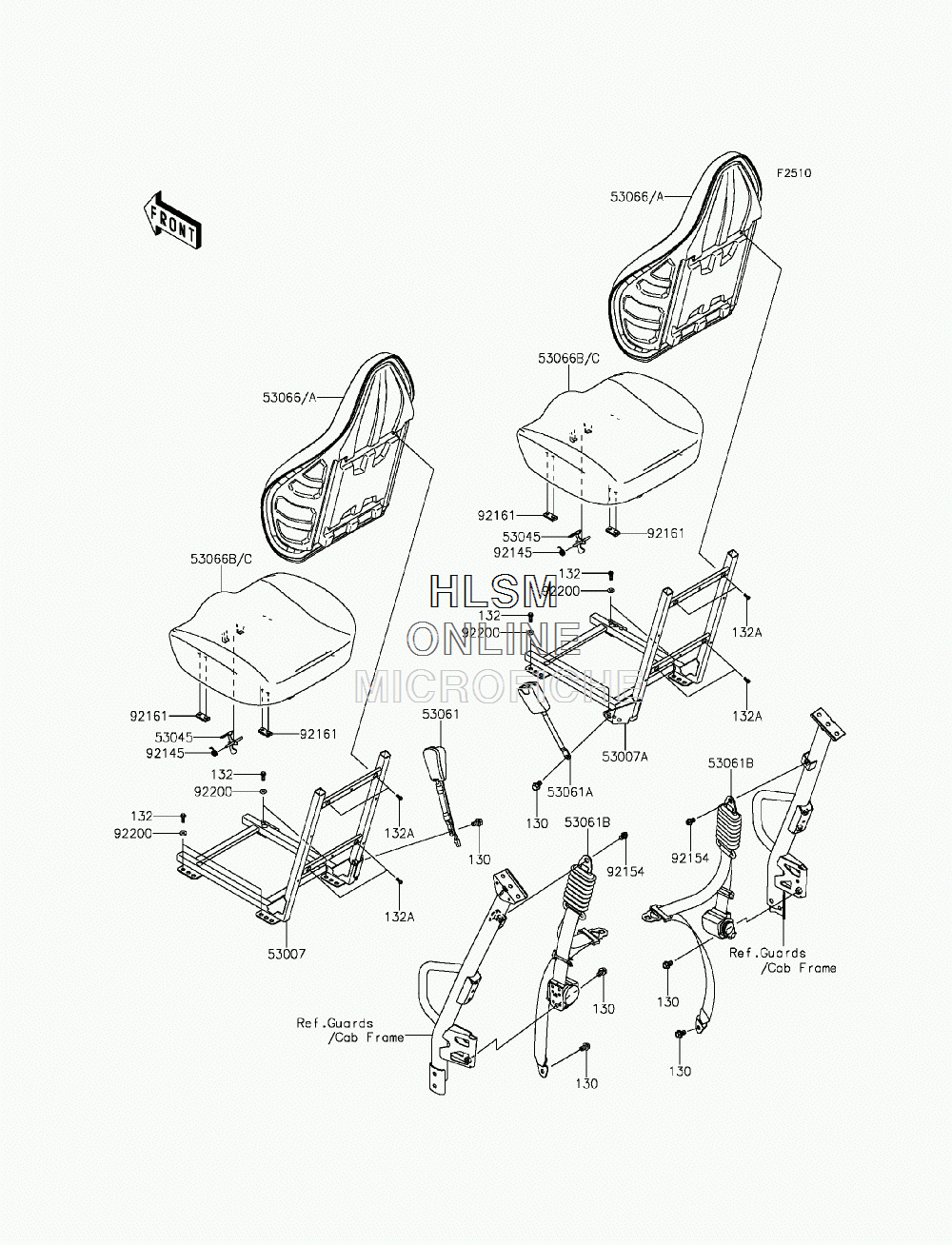

SEAT для Kawasaki TERYX LE (KRF800CFF) - 2015 года выпуска
-
№АртикулНазвание
-
130130BA1220 BOLT-FLANGED,12X20BOLT-FLANGED,12X20
-
132132BA0822 BOLT-FLANGED-SMALL,8X22BOLT-FLANGED-SMALL,8X22
-
132A132BB0614 BOLT-FLANGED-SMALL,6X14BOLT-FLANGED-SMALL,6X14
-
5300753007-0347 FRAME-SEAT, FRONT, LEFT HANDFRAME-SEAT, FRONT, LEFT HAND
-
53007A53007-0348 FRAME-SEAT, FRONT, RIGHT HANDFRAME-SEAT, FRONT, RIGHT HAND
-
5304553045-0019 HOOK-ASSYHOOK-ASSY
-
5306153061-0038 BELT-SEAT,BUCKLE,SW.BELT-SEAT,BUCKLE,SW.
-
53061A53061-0039 BELT-SEAT,BUCKLEBELT-SEAT,BUCKLE
-
53061B53061-0040 BELT-SEAT, RETRACTOR,L=2500BELT-SEAT, RETRACTOR,L=2500
-
5306653066-0394-41J SEAT-ASSY,BACK,(BLK/SIL/GRN) (FOR 31Y;367)SEAT-ASSY,BACK,(BLK/SIL/GRN) (FOR 31Y;367)
-
53066A53066-0394-41K SEAT-ASSY,BACK,(BLK/SIL/ORG) (FOR 42L)SEAT-ASSY,BACK,(BLK/SIL/ORG) (FOR 42L)
-
53066B53066-0420-41Y SEAT-ASSY,BOTTOM,(BLK/SIL/GRN) (FOR 31Y;367)SEAT-ASSY,BOTTOM,(BLK/SIL/GRN) (FOR 31Y;367)
-
53066C53066-0420-41Z SEAT-ASSY,BOTTOM,(BLK/SIL/ORG) (FOR 42L)SEAT-ASSY,BOTTOM,(BLK/SIL/ORG) (FOR 42L)
-
9214592145-0022 SPRING,SEAT LATCHSPRING,SEAT LATCH
-
9215492154-1136 BOLT,10X16BOLT,10X16
-
9216192161-1489 DAMPER,SEATDAMPER,SEAT
-
9220092200-0205 WASHER,8.2X20.0X2.5WASHER,8.2X20.0X2.5
