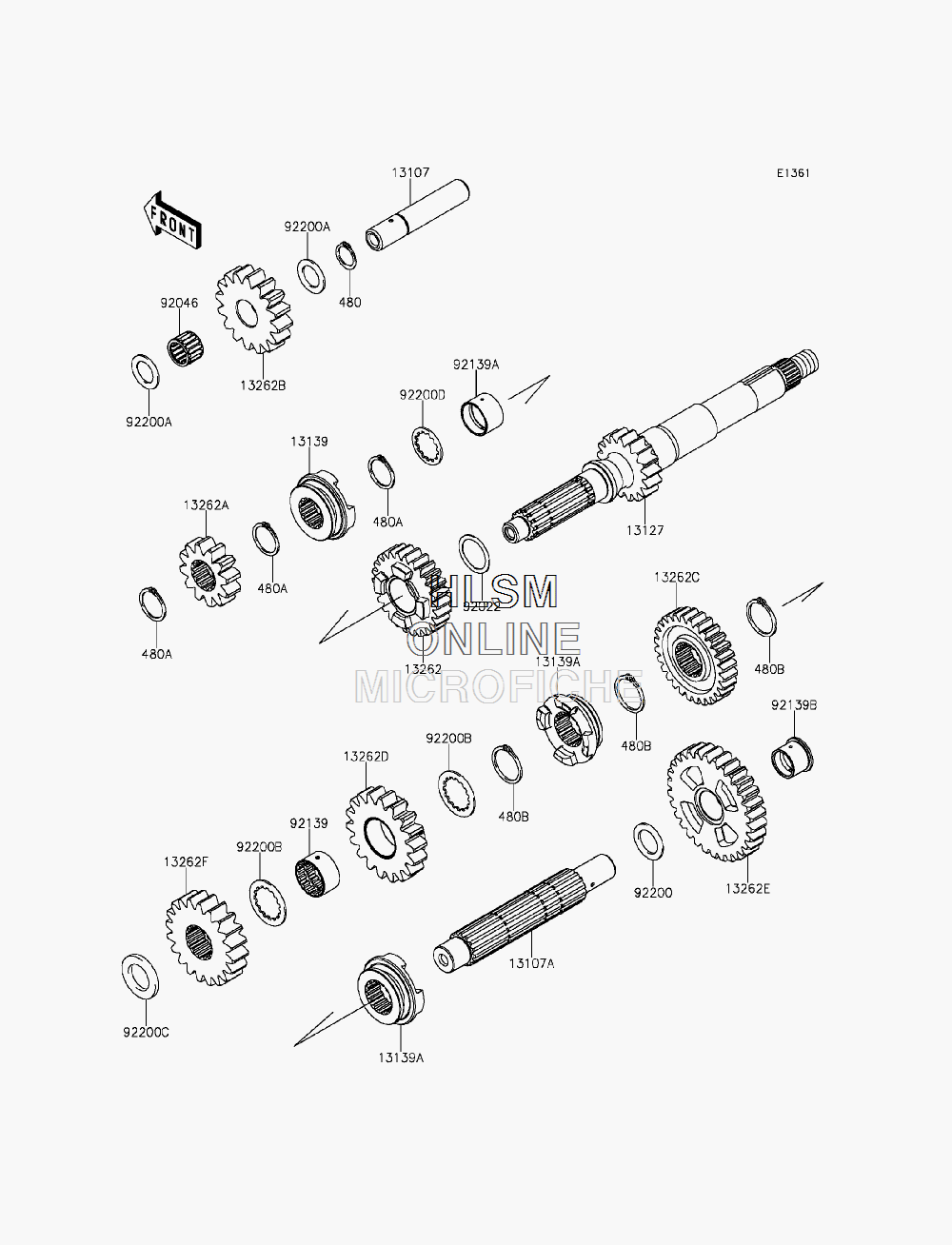

TRANSMISSION для Kawasaki TERYX LE (KRF800CFF) - 2015 года выпуска
-
№АртикулНазвание
-
480480J1800 CIRCLIP-TYPE-C,18MMCIRCLIP-TYPE-C,18MM
-
480A480J2400 CIRCLIP-TYPE-C,24MMCIRCLIP-TYPE-C,24MM
-
480B480J2800 CIRCLIP-TYPE-C,28MMCIRCLIP-TYPE-C,28MM
-
1310713107-0715 SHAFT, REVERSESHAFT, REVERSE
-
13107A13107-0716 SHAFT,COUNTERSHAFT,COUNTER
-
1312713127-0654 SHAFT-TRANSMISSION INPUT,17TSHAFT-TRANSMISSION INPUT,17T
-
1313913139-0624 SHIFTER,INPUT HISHIFTER,INPUT HI
-
13139A13139-0625 SHIFTER,OUTPUTSHIFTER,OUTPUT
-
1326213262-0860 GEAR,INPUT HI,26TGEAR,INPUT HI,26T
-
13262A13262-0861 GEAR,INPUT REVERSE,12TGEAR,INPUT REVERSE,12T
-
13262B13262-0862 GEAR, REVERSE IDLE,16TGEAR, REVERSE IDLE,16T
-
13262C13262-0863 GEAR,OUTPUT HI,28TGEAR,OUTPUT HI,28T
-
13262D13262-0865 GEAR,OUTPUT REVERSE,18TGEAR,OUTPUT REVERSE,18T
-
13262E13262-0867 GEAR,OUTPUT LOW,31TGEAR,OUTPUT LOW,31T
-
13262F13262-1082 GEAR,OUTPUT,20TGEAR,OUTPUT,20T
-
9202292022-1800 WASHER,25.3X32X1WASHER,25.3X32X1
-
9204692046-0605 BEARING-NEEDLE,182216E03 C3BEARING-NEEDLE,182216E03 C3
-
9213992139-0107 BUSHING,25X28.3X16.7BUSHING,25X28.3X16.7
-
92139A92139-0280 BUSHING,25X28X17.8BUSHING,25X28X17.8
-
92139B92139-0707 BUSHING,20X24X18.7BUSHING,20X24X18.7
-
9220092200-0221 WASHER,20.2X30X1.8WASHER,20.2X30X1.8
-
92200A92200-0716 WASHER,18.2X28X1.5WASHER,18.2X28X1.5
-
92200B92200-0717 WASHER,28.5X38X1.5WASHER,28.5X38X1.5
-
92200C92200-0718 WASHER,22.2X36X3.6WASHER,22.2X36X3.6
-
92200D92200-1239 WASHER,25.2X31.0X1.5WASHER,25.2X31.0X1.5
