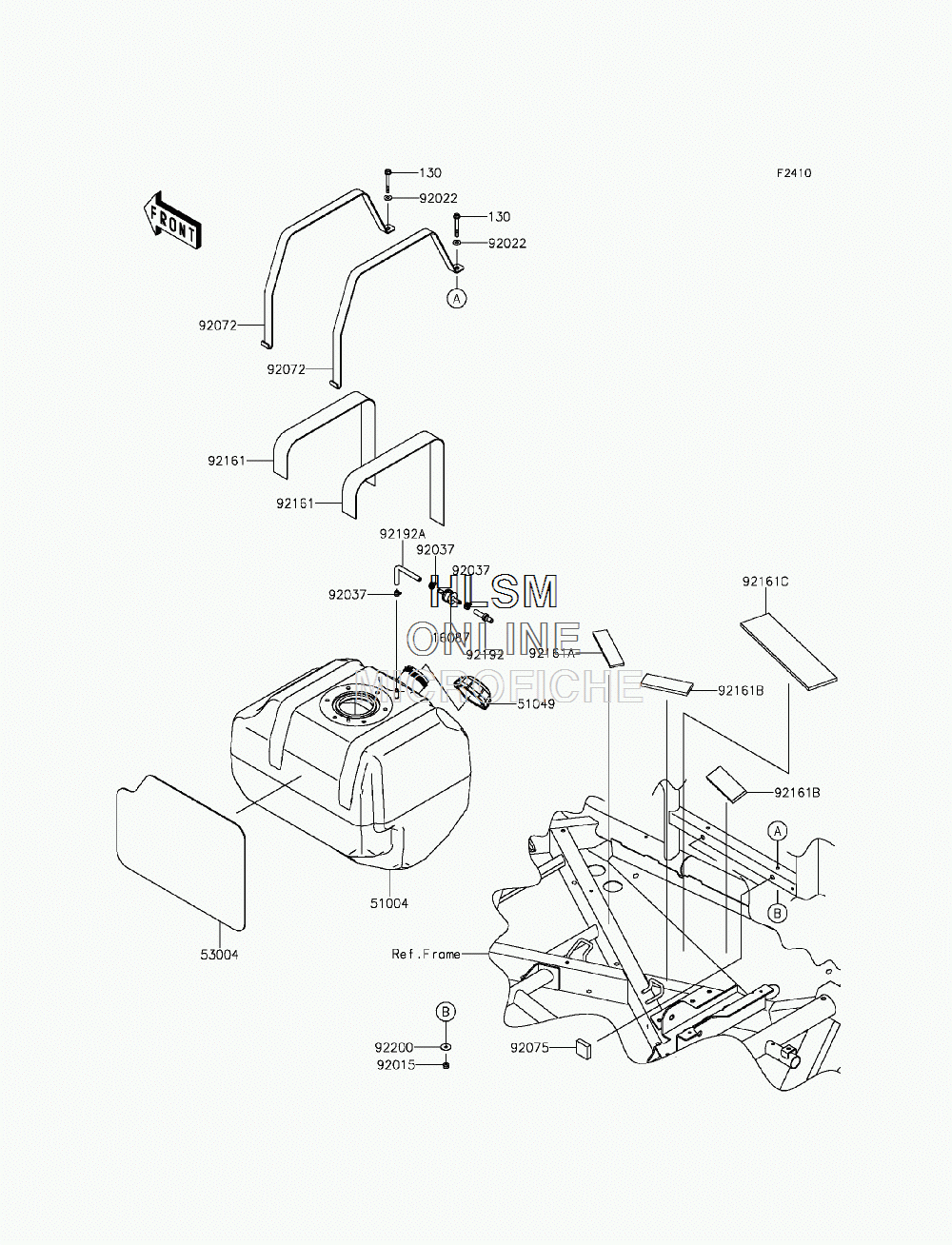

FUEL TANK для Kawasaki TERYX LE (KRF800CFF) - 2015 года выпуска
-
№АртикулНазвание
-
130130BA0650 BOLT-FLANGED,6X50BOLT-FLANGED,6X50
-
1608716087-0703 VALVE-CHECKVALVE-CHECK
-
5100451004-0002 TANK-FUELTANK-FUEL
-
5104951049-0718 CAP-TANK,FUELCAP-TANK,FUEL
-
5300453004-0554 MATMAT
-
9201592015-1339 NUT,LOCK,FLANGED,6MMNUT,LOCK,FLANGED,6MM
-
9202292022-1344 WASHER,7X16X1.2WASHER,7X16X1.2
-
9203792037-1461 CLAMP,TUBECLAMP,TUBE
-
9207292072-0704 BAND,FUEL TANKBAND,FUEL TANK
-
9207592075-1882 DAMPERDAMPER
-
9216192161-0794 DAMPER,FUEL TANKDAMPER,FUEL TANK
-
92161A92161-0936 DAMPER,31.1X130X5DAMPER,31.1X130X5
-
92161B92161-0948 DAMPER,38X105X7DAMPER,38X105X7
-
92161C92161-1452 DAMPER,70X280X7DAMPER,70X280X7
-
9219292192-0068 TUBE, FRAME PIPE-CHECK VALVETUBE, FRAME PIPE-CHECK VALVE
-
92192A92192-0949 TUBE,VENTTUBE,VENT
-
9220092200-1087 WASHER,6.5X22X1.6WASHER,6.5X22X1.6
